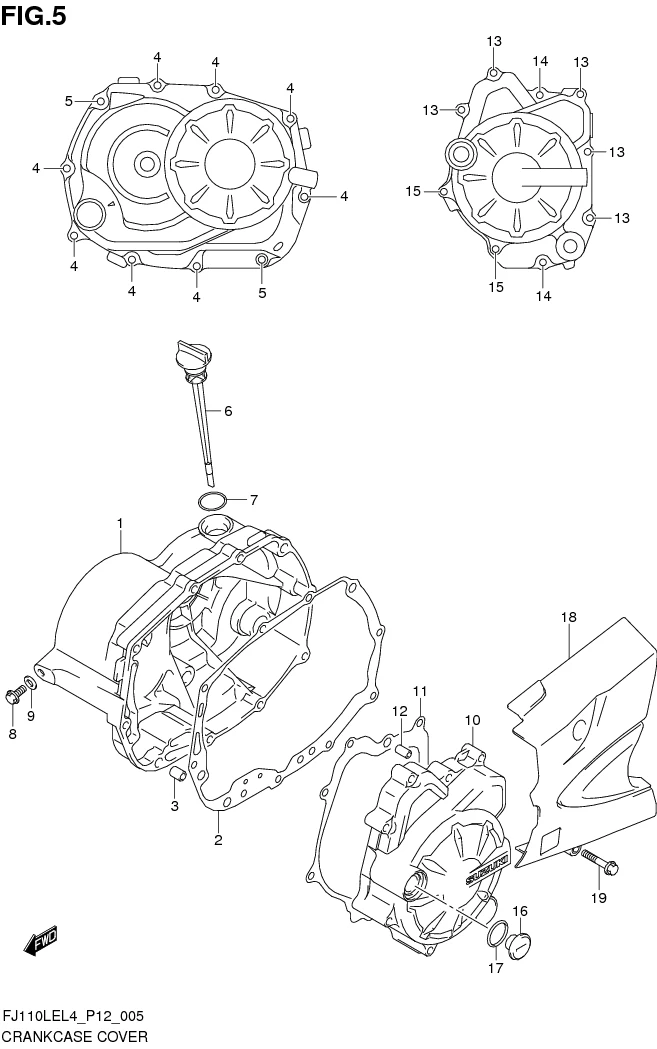

FIG. 5 CRANKCASE COVER

FIG. 5 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11341-22J10-000
SUB: 11341B22J10N000		 COVER, CLUTCH 1 Rp457.500
2 11482-22J00-000
SUB: 11482B22J00N000		 GASKET, CLUTCH COVER 1 Rp18.500
3 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
4 01547-0630A-000 BOLT 8 Rp6.500
5 01547-0640B-000
SUB: 01547B0640BN000		 BOLT 2 Rp7.000
6 11971-22J00-000
SUB: 11971B22J00N000		 GAUGE, OIL LEVEL 1 Rp9.000
7 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
8 01547-0610A-000 BOLT 1 Rp3.000
9 09168-06018-000
SUB: 09168B06018N000		 GASKET (6.2X13X1.2) 1 Rp8.500
10 11351-22J20-000
SUB: 11351B22J20N000		 COVER, MAGNETO 1 Rp498.000
11 11483-22J00-000
SUB: 11483B22J00N000		 GASKET, MAGNETO COVER 1 Rp14.000
12 04211-09129-000 PIN 2 Rp10.500
13 01547-0630A-000 BOLT 5 Rp6.500
14 01547-0640B-000
SUB: 01547B0640BN000		 BOLT 2 Rp7.000
15 01547-0650A-000
SUB: 01547B0650AN000		 BOLT 2 Rp7.000
16 DISCONTINUE
SUB: 11352B22J10N000		 PLUG, TOP 1 -
17 09280-14011-000
SUB: 09280B14011N000		 O RING (D:2.5,ID:13.8) 1 Rp7.500
18 11360-22J00-000
SUB: 11360B22J00N000		 COVER, ENGINE SPROCKET 1 Rp38.000
19 01547-0630A-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
