Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVER FIG. 2 CYLINDER HEAD FIG. 3 CYLINDER FIG. 4 CRANKCASE FIG. 5 CRANKCASE COVER FIG. 6 CRANKSHAFT FIG. 7 STARTER CLUTCH FIG. 8 CAMSHAFT/VALVE FIG. 9 CAM CHAIN FIG. 10 THROTTLE BODY FIG. 11 AIR CLEANER FIG. 12 MUFFLER FIG. 13 OIL PUMP FIG. 14 FUEL PUMP FIG. 15 CLUTCH FIG. 16 TRANSMISSION FIG. 17 GEAR SHIFTING FIG. 18 KICK STARTER

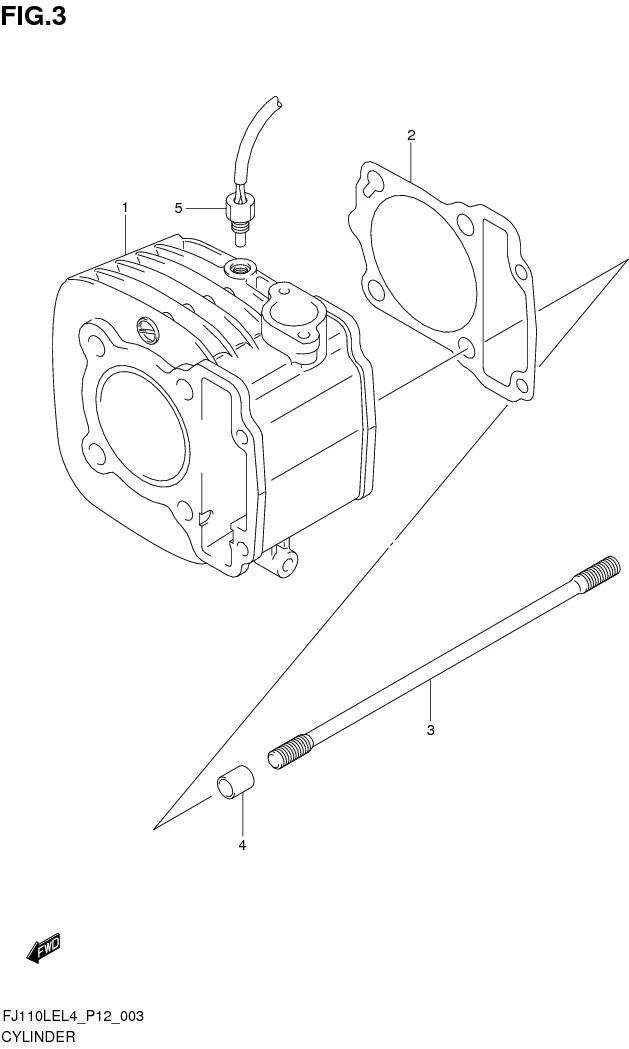

FIG. 3 CYLINDER

FIG. 3 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210-22J01-000 SUB: 11210B22J00N0F0	CYLINDER	1	Rp455.500
2	11241-22J00-000 SUB: 11241B22J00N000	GASKET, CYLINDER	1	Rp7.000
3	09108-08272-000	STUD BOLT	4	Rp26.500
4	09206-10016-000	PIN (8.2X10X13)	2	Rp3.500
5	13640-32G20-000 SUB: 13640B32G20N000	SENSOR, ENGINE TEMP	1	Rp156.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
