Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVER FIG. 2 CYLINDER HEAD FIG. 3 CYLINDER FIG. 4 CRANKCASE FIG. 5 CRANKCASE COVER FIG. 6 CRANKSHAFT FIG. 7 STARTER CLUTCH FIG. 8 CAMSHAFT/VALVE FIG. 9 CAM CHAIN FIG. 10 THROTTLE BODY FIG. 11 AIR CLEANER FIG. 12 MUFFLER FIG. 13 OIL PUMP FIG. 14 FUEL PUMP FIG. 15 CLUTCH FIG. 16 TRANSMISSION FIG. 17 GEAR SHIFTING FIG. 18 KICK STARTER

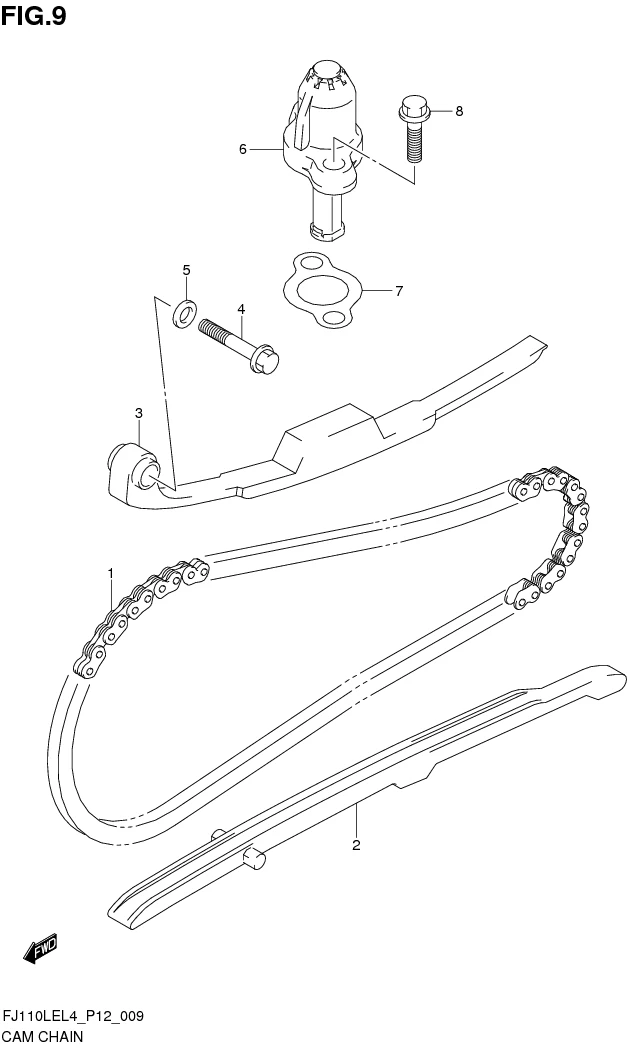

FIG. 9 CAM CHAIN

FIG. 9 CAM CHAIN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12760-22J00-000	CHAIN, CAM SHAFT DRIVE	1	Rp74.000
2	12771-22J00-000 SUB: 12771B22J00N000	GUIDE, CAM CHAIN	1	Rp11.500
3	12811-22J01-000 SUB: 12811-22J00-000	TENSIONER, CAM CHAIN	1	Rp57.500
4	09103-06247-000	BOLT (6X32)	1	Rp4.000
5	09168-06004-000	GASKET (6.2X11X1.2)	1	Rp2.500
6	12830-09J00-000 SUB: 12830B32G02N000	ADJUSTER ASSY, TENSIONER	1	Rp96.000
7	12837-22J00-000 SUB: 12837B22J00N000	GASKET, TENSIONER ADJUSTER	1	Rp5.500
8	01547-0620B-000	BOLT	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
