Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

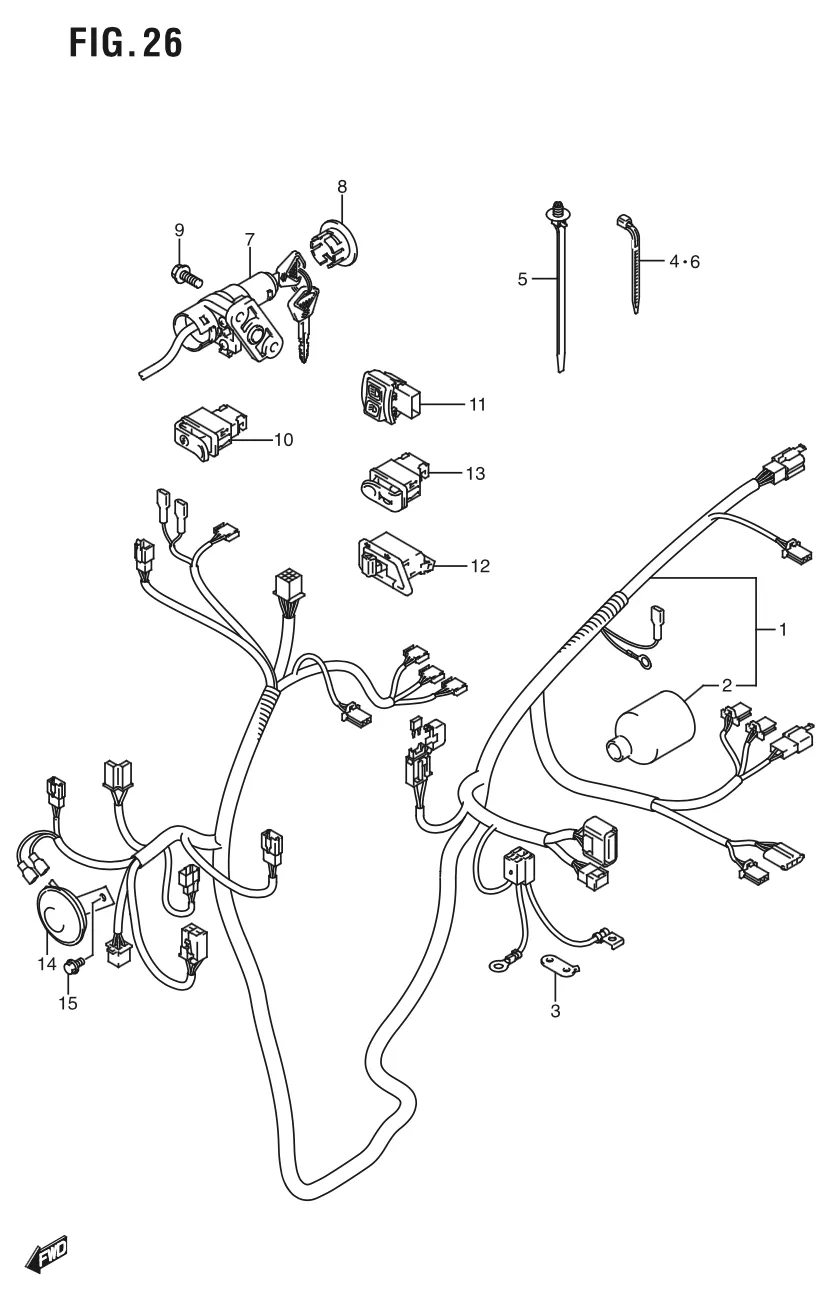

No	No. Part	Description	Qty	Price Per Pcs
1	36610-09J01-000 SUB: 36610B09J00N000	HARNESS, WIRING	1	Rp452.000
2	DISCONTINUE SUB: 36618B09J00N000	?BOOT, WIRING HARNESS	1	-
3	36672-27J01-000 SUB: 36672B09J00N000	BRACKET, LEAD WIRE	1	Rp5.500
4	36990-25G00-000 SUB: 09407-11401-000	CLAMP (L:95)	2	Rp13.000
5	09407-17403-000 SUB: 09407B17403N000	CLAMP (L:154)	1	Rp3.500
6	09407-18402-000	CLAMP (L:165)	5	Rp8.000
7-1	37019-09G60-000 SUB: 37019B09G60N000	LOCK SET,STEERING	1	Rp141.000
7-2	37100-09G61-000 SUB: 37100B09G61N000	?LOCK ASSY, STEERING	1	Rp150.500
8	37155-31C20-000	CAP, STEERING LOCK	1	Rp13.000
9	01550-0616A-000 SUB: 01550B0616AN000	BOLT	2	Rp3.500
10	37310-09G51-000 SUB: 37310B09J00N000	SWITCH ASSY, STARTER	1	Rp21.500
11-1	37420-09G21-000 SUB: 37420B09G21N000	SWITCH ASSY, DIMMER	1	Rp20.500
11-2	37420-10E10-000 SUB: 37420B10E10N000	SWITCH ASSY, DIMMER	1	Rp19.500
12-1	37510-10E30-000 SUB: 37510B10E20N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.000
12-2	37510-10E30-000 SUB: 37510B10E30N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.000
13	37520-09G51-000 SUB: 37520B09J00N000	SWITCH ASSY, HORN	1	Rp20.000
14	38500-09G11-000 SUB: 38500B09G11N000	HORN ASSY	1	Rp46.000
15	01550B0612BN000	BOLT	1	Rp2.500
