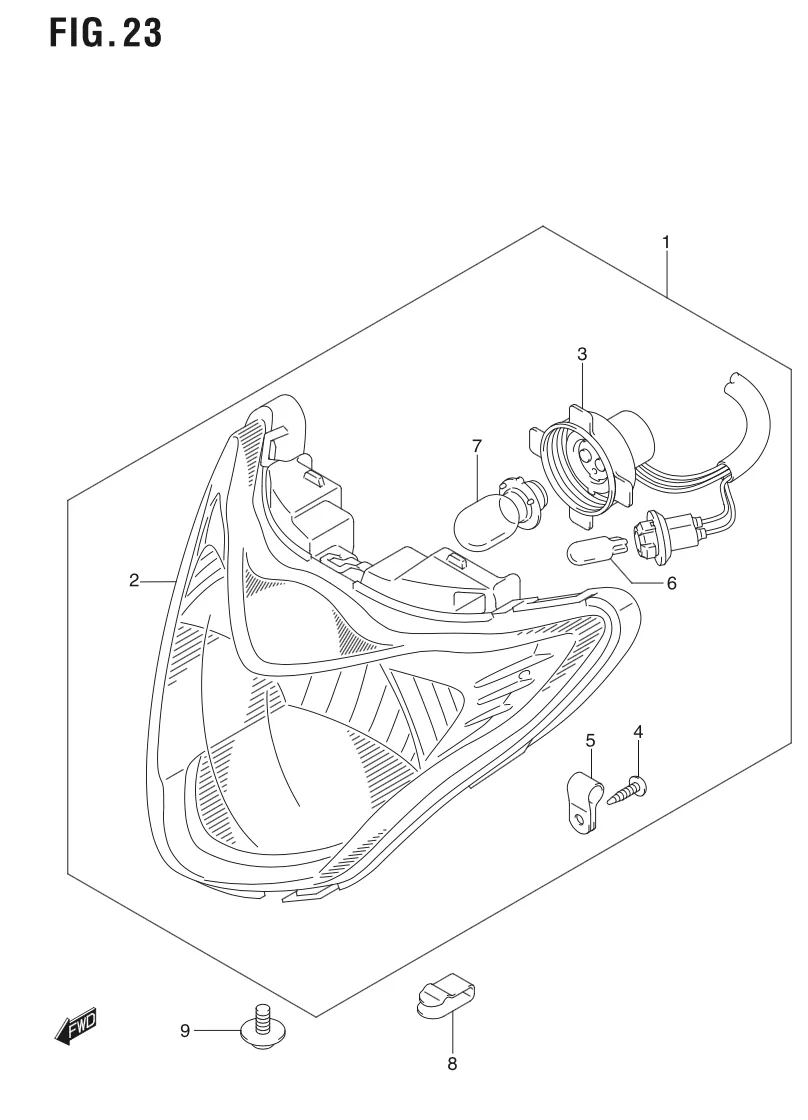

FIG. 23 HEAD LAMP

FIG. 23 HEAD LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-09J00-000
SUB: 35100B09J00N000		 HEADLAMP ASSY 1 Rp165.000
2 35121-09J00-000
SUB: 35121B09J00N000		 ?HEADLAMP UNIT 1 Rp127.500
3 35171-09J00-000
SUB: 35171B09J00N000		 ?SOCKET 1 Rp22.000
4 35187-10J00-000
SUB: 35187B10J00N000		 ?SCREW 1 Rp3.000
5 35328-10J00-000
SUB: 35328B10J00N000		 ?CLIP 1 Rp6.500
6 09471-12028-000
SUB: 09471-12028L000		 ?BULB (12V,3.4W) 1 Rp8.000
7 09471-12213-000
SUB: 09471B12213N000		 ?BULB (12V32/32W) 1 Rp35.500
8 35194-23F00-000
SUB: 35194B23F00N000		 CLIP, HEADLAMP 2 Rp8.000
9 09136-05051-000
SUB: 09136B05051N000		 SCREW (5X12) 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
