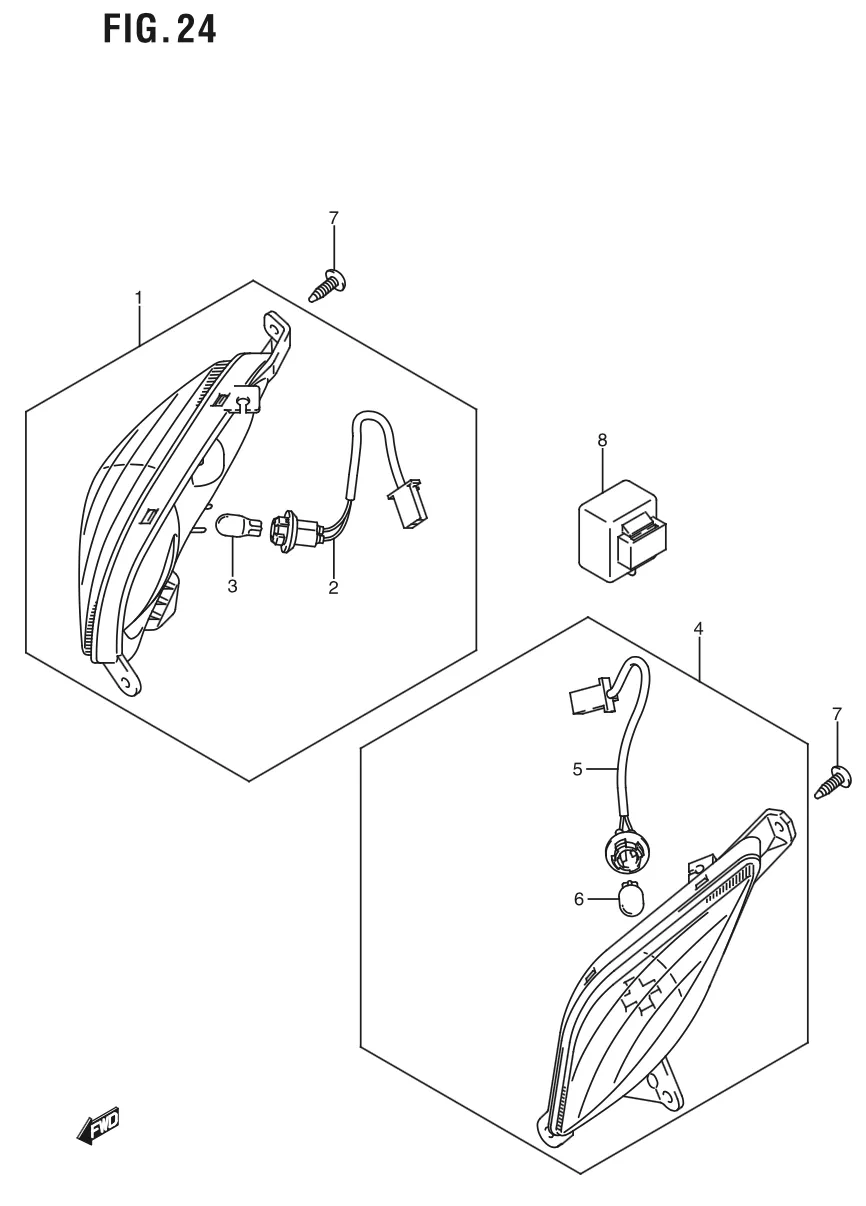

FIG. 24 FRONT TURN LAMP

FIG. 24 FRONT TURN LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-09J00-000
SUB: 35601B09J00N000		 LAMP ASSY, FRONT TURNSIGNAL RH 1 Rp88.000
2 35618-09J00-000
SUB: 35618B09J00N000		 ?HARNESS 1 Rp23.000
3 09471-12114AS01 ?BULB (12V10W) 1 Rp14.000
4 35602-09J00-000
SUB: 35602B09J00N000		 LAMP ASSY, FRONT TURNSIGNAL LH 1 Rp88.000
5 35638-09J00-000
SUB: 35638B09J00N000		 ?HARNESS 1 Rp23.000
6 09471-12114AS01 ?BULB (12V10W) 1 Rp14.000
7 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 6 Rp3.500
8 38610-35491-000
SUB: 38610B35491N000		 RELAY ASSY, TURNSIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
