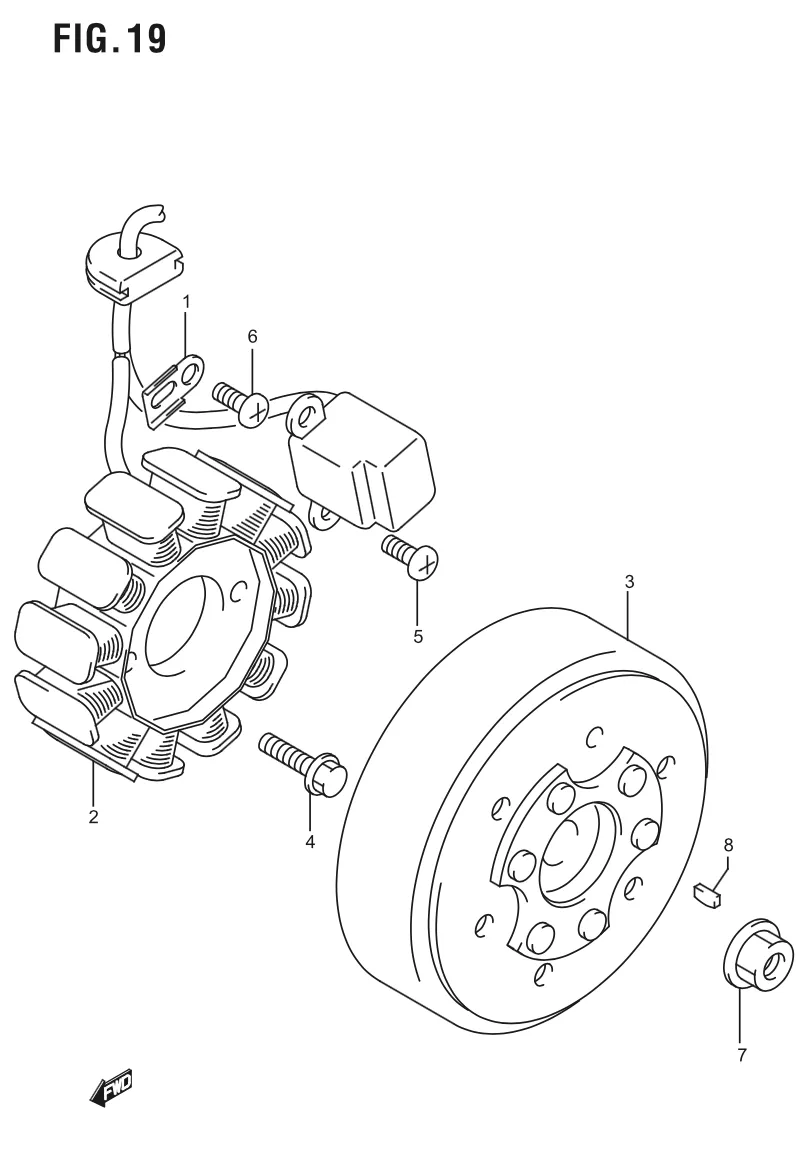

FIG. 19 MAGNETO

FIG. 19 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 31497B45000N000		 CLAMP, MAGNETO LEAD 1 -
2 32101-09J00-000
SUB: 32101B09J00N000		 STATOR ASSY 1 Rp146.000
3 32102-09J00-000
SUB: 32102B09J00N000		 ROTOR ASSY 1 Rp183.500
4 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
5 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 2 Rp2.500
6 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 1 Rp2.500
7 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
8 08341-31039-000
SUB: 08341B31039N000		 KEY 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
