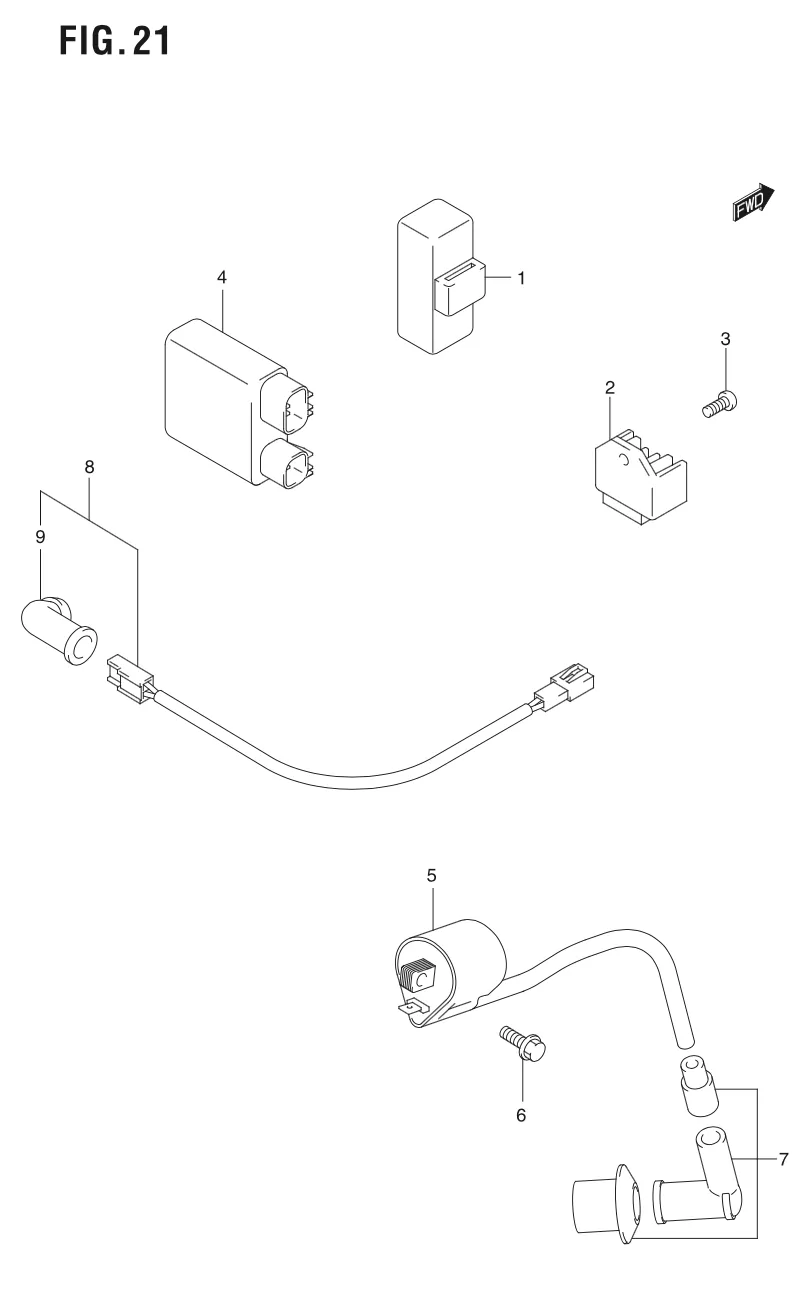

FIG. 21 ELECTRICAL

FIG. 21 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-16H00-000
SUB: 31800B16H00N000		 RELAY ASSY, STARTING MOTOR 1 Rp64.500
2 32800-41H01-000
SUB: 32800B41H00N000		 RECTIFIER ASSY 1 Rp117.500
3 02112-0612A-000
SUB: 02112B0612AN000		 SCREW 1 Rp3.500
4 32900-09J00-000
SUB: 32900B09J00N000		 CDI UNIT 1 Rp505.000
5 33410-09J00-000
SUB: 33410B09J00N000		 COIL ASSY, IGNITION 1 Rp97.500
6 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
7 33500-09J00-000
SUB: 33500B09J00N000		 CAP COMP, SPARK PLUG 1 Rp49.000
8 33810-09J00-000
SUB: 33810B09J00N000		 WIRE, STARTER MOTOR 1 Rp19.500
9 31861-48B10-000
SUB: 31861-48B10L000		 ?CAP, STARTER MOTOR 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
