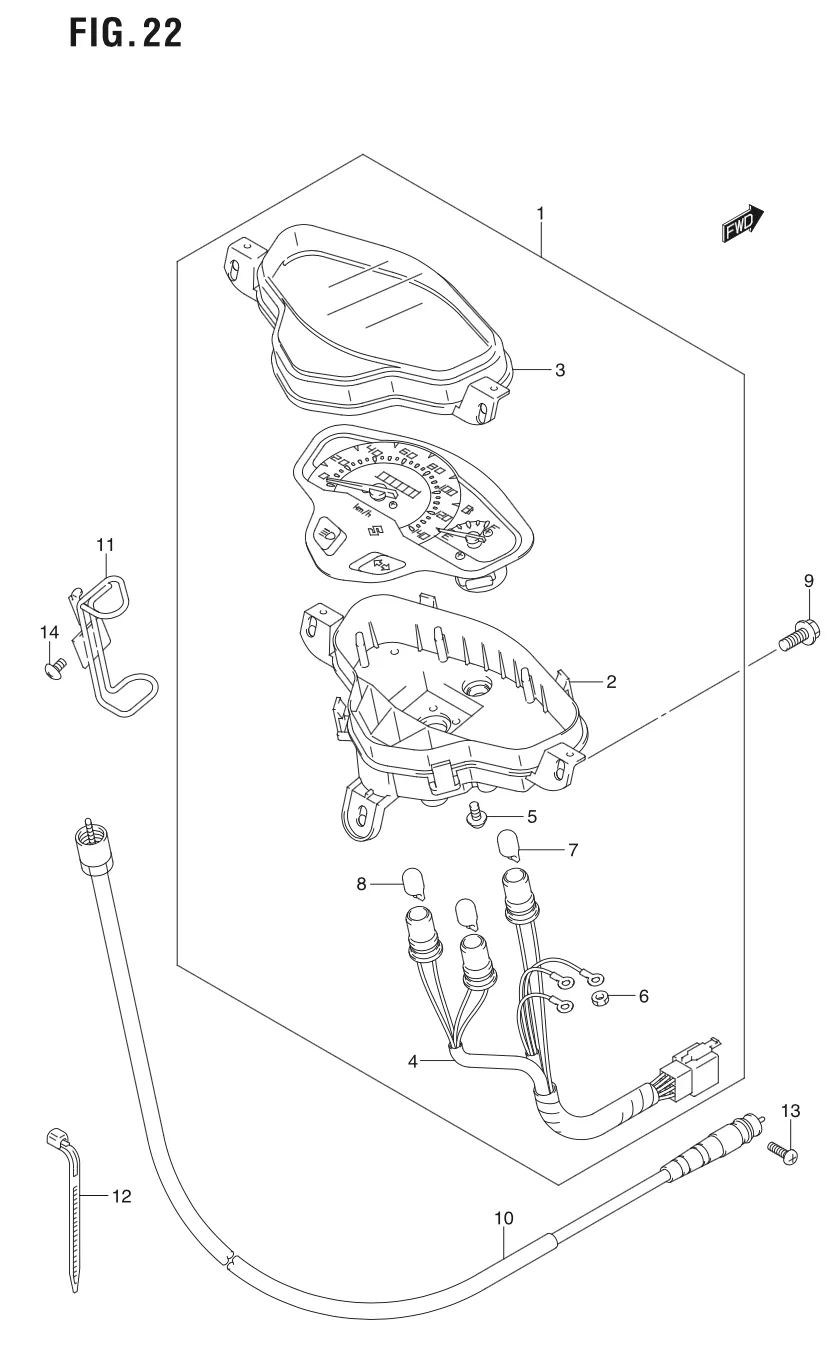

FIG. 22 SPEEDOMETER

FIG. 22 SPEEDOMETER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	34100-09J00-000 SUB: 34100B09J00N000	SPEEDOMETER ASSY	1	Rp271.500
2	34111-09J00-000 SUB: 34111B09J00N000	?CASE	1	Rp25.000
3	34150-09J00-000 SUB: 34112B09J00N000	?LENS	1	Rp25.000
4	34173-09J00-000 SUB: 34173B09J00N000	?SOCKET	1	Rp32.500
5	34186-09J00-000 SUB: 34186B09J00N000	?SCREW	2	Rp3.000
6	34382-09J00-000 SUB: 34382B09J00N000	?NUT	3	Rp3.000
7	09471-12028-000 SUB: 09471-12028L000	?BULB (12V,3.4W)	1	Rp8.000
8	09471-12077-000 SUB: 09471B12077N000	?BULB (12V1.7W)	2	Rp6.000
9	03541-0516A-000 SUB: 03541B0516AN000	SCREW	3	Rp3.500
10	34910-45H20-000 SUB: 34910B45H20N000	CABLE ASSY, SPEEDOMETER	1	Rp44.000
11	34930-09J00-000 SUB: 34930B09J00N000	GUIDE, SPEEDOMETER CABLE	1	Rp7.500
12	36990-25G00-000 SUB: 09407-11401-000	CLAMP (L:95)	1	Rp13.000
13	02112-0516A-000 SUB: 02112B0516AN000	SCREW	1	Rp5.500
14	02142-0612A-000 SUB: 02142B0612AN000	SCREW	1	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
