Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

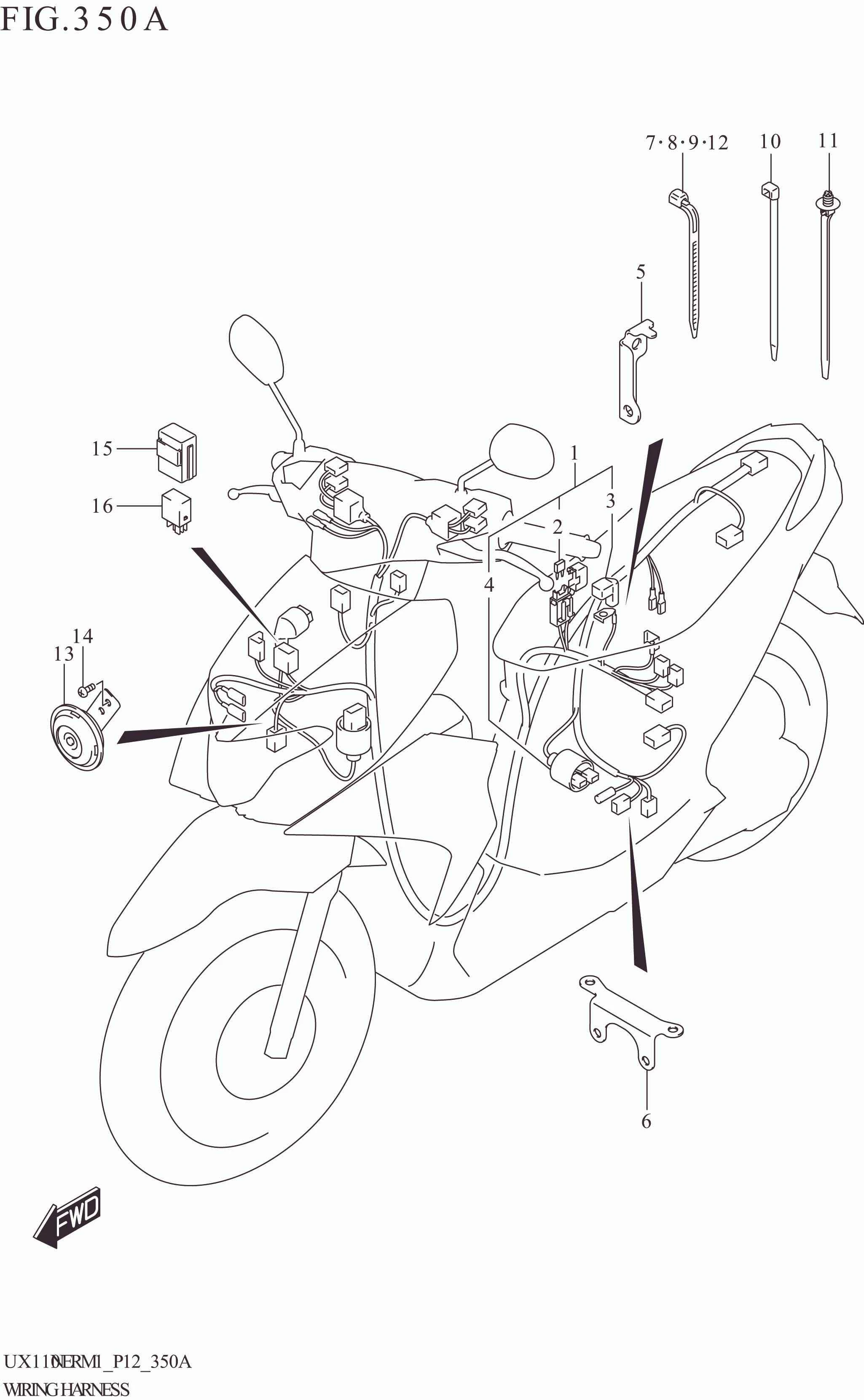

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs
1	36610-49KA0-000	HARNESS,WIRING	1	Rp907.500
2	09481-15501-000	.FUSE (15A)	2	Rp12.500
3	33624-09J00-000	.CAP,BATTERY PLUS	1	Rp11.500
4	36618-49KA0-000	.BOOT,METER COUPLER	1	Rp66.000
5	36672-49K00-000	BRACKET,HARNESS	1	Rp5.000
6	36672-49K10-000	BRACKET,LEAD WIRE	1	Rp8.000
7	36990-25G00-000	CLAMP (L:95)	1	Rp13.000
8	36990-25G20-000	CLAMP (L:165)	1	Rp9.500
9	36990-25G00-000 SUB: 09407-14403-000	CLAMP (L:125)	1	Rp13.000
10	09407-14407-000	CLAMP (L:145)	1	Rp19.500
11	09407-17403-000	CLAMP (L:154)	1	Rp3.500
12	09407-19401-000	CLAMP (L:190)	1	Rp31.500
13	38500-25G20-000	HORN ASSY	1	Rp55.000
14	02142-0610A-000	SCREW	1	Rp3.500
15	36744-23K30-000	HOLDER,RELAY	1	Rp5.000
16-1	38860-40J00-000	RELAY ASSY,LOW BEAM	1	Rp75.500
16-2	38860-78F00-000	RELAY ASSY	1	Rp288.500
