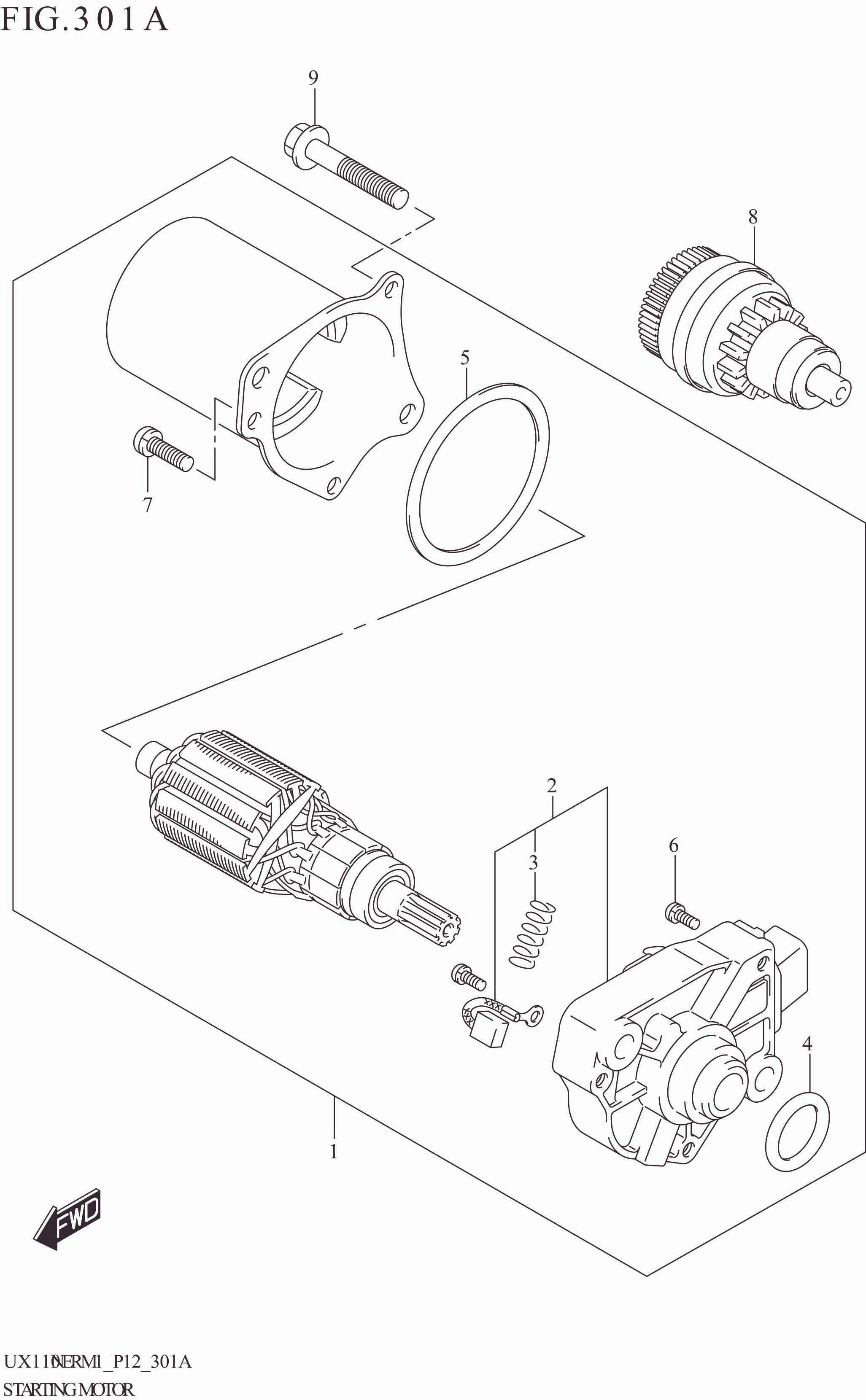

FIG. 301A STARTING MOTOR

FIG. 301A STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-09J01-000 MOTOR ASSY,STARTING 1 Rp271.500
2 31130-32G00-000 .HOLDER ASSY,STARTING 1 Rp70.500
3 31135-19D00-000 ..SPRING 2 Rp4.500
4 31156-32G00-000 .0 RING 1 Rp9.000
5 31157-32G00-000 .GASKET 1 Rp6.500
6 02112-3406A-000
SUB: 02112-34063-000		 .SCREW 1 Rp11.500
7 02112-35166-000 .SCREW 3 Rp32.000
8 31370-32G01-000
SUB: 31370-32G00-000		 PINION ASSY,STARTING MOTOR 1 Rp253.000
9 01547-0630A-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
