Nex II Cross

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 301A STARTING MOTORFIG. 303A MAGNETOFIG. 310A BATTERYFIG. 312A ELECTRICALFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRING HARNESS

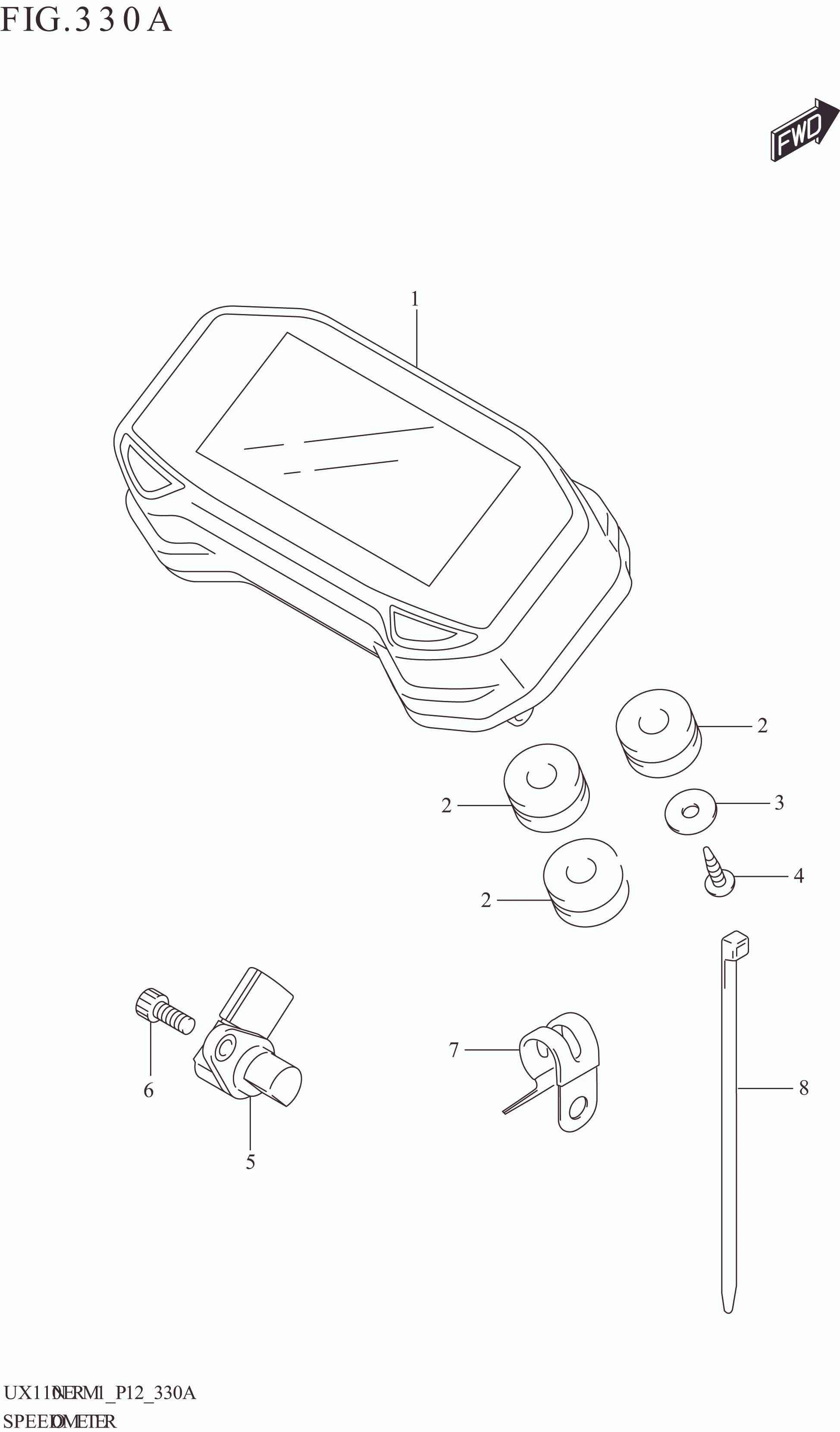

FIG. 330A SPEEDOMETER

FIG. 330A SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-49KA0-000 SPEEDOMETER ASSY 1 Rp729.000
2 34955-44H01-000 CUSHION,SPEEDOMETER 3 Rp8.500
3 09160-04026-000 WASHER (4.5X16X1.2) 1 Rp10.500
4 03541-0416A-000 SCREW 1 Rp3.500
5 34990-49K00-000 SENSOR,SPEED 1 Rp256.000
6 07130-0616A-000 BOLT 1 Rp3.500
7 34938-49K00-000 CLAMP,SPEED SENSOR 2 Rp5.500
8 36990-25G00-000
SUB: 09407-11401-000		 CLAMP (L:95) 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
