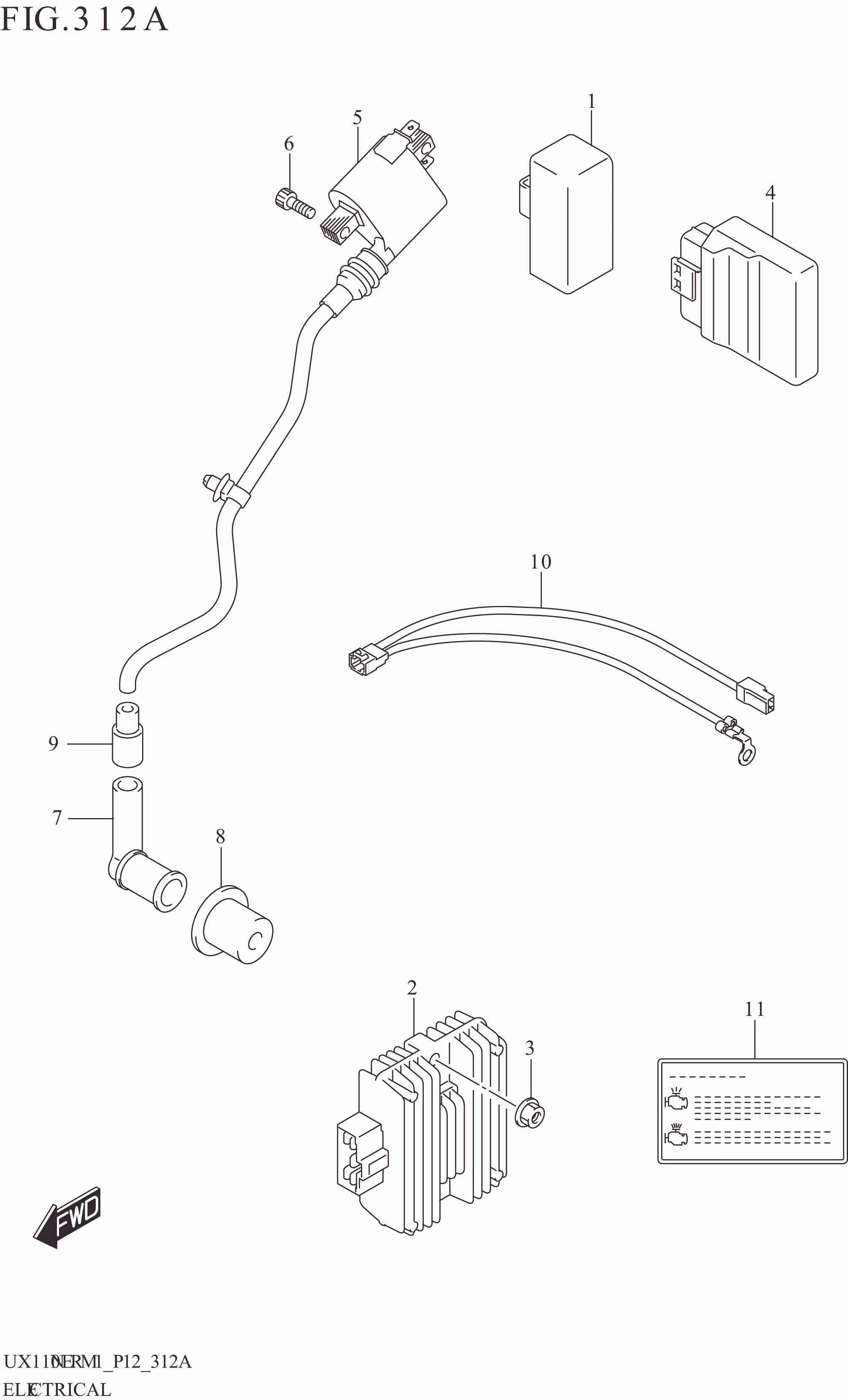

FIG. 312A ELECTRICAL

FIG. 312A ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-16H00-000 RELAY ASSY,STARTING MOTOR 1 Rp64.500
2 32800-34J01-000 RECTIFIER ASSY 1 Rp147.000
3 08316-1006A-000 NUT 2 Rp2.000
4 32920-49K00-000 CONTROL UNIT,FI 1 Rp851.500
5 33410-49K00-000 COIL ASSY,IGNITION 1 Rp79.000
6 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 2 Rp6.500
7 33510-09J00-000 CAP,SPARK PLUG 1 Rp20.000
8 33541-09J00-000 SEAL,SPARK PLUG 1 Rp11.000
9 33542-09J00-000 SEAL,HIGH TENSION CORD 1 Rp5.000
10 33810-09J00-000 WIRE,STARTER MOTOR 1 Rp19.500
11 32929-09J30-000 LABEL,MIL LAMP 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
