Nex II Cross

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 301A STARTING MOTORFIG. 303A MAGNETOFIG. 310A BATTERYFIG. 312A ELECTRICALFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRING HARNESS

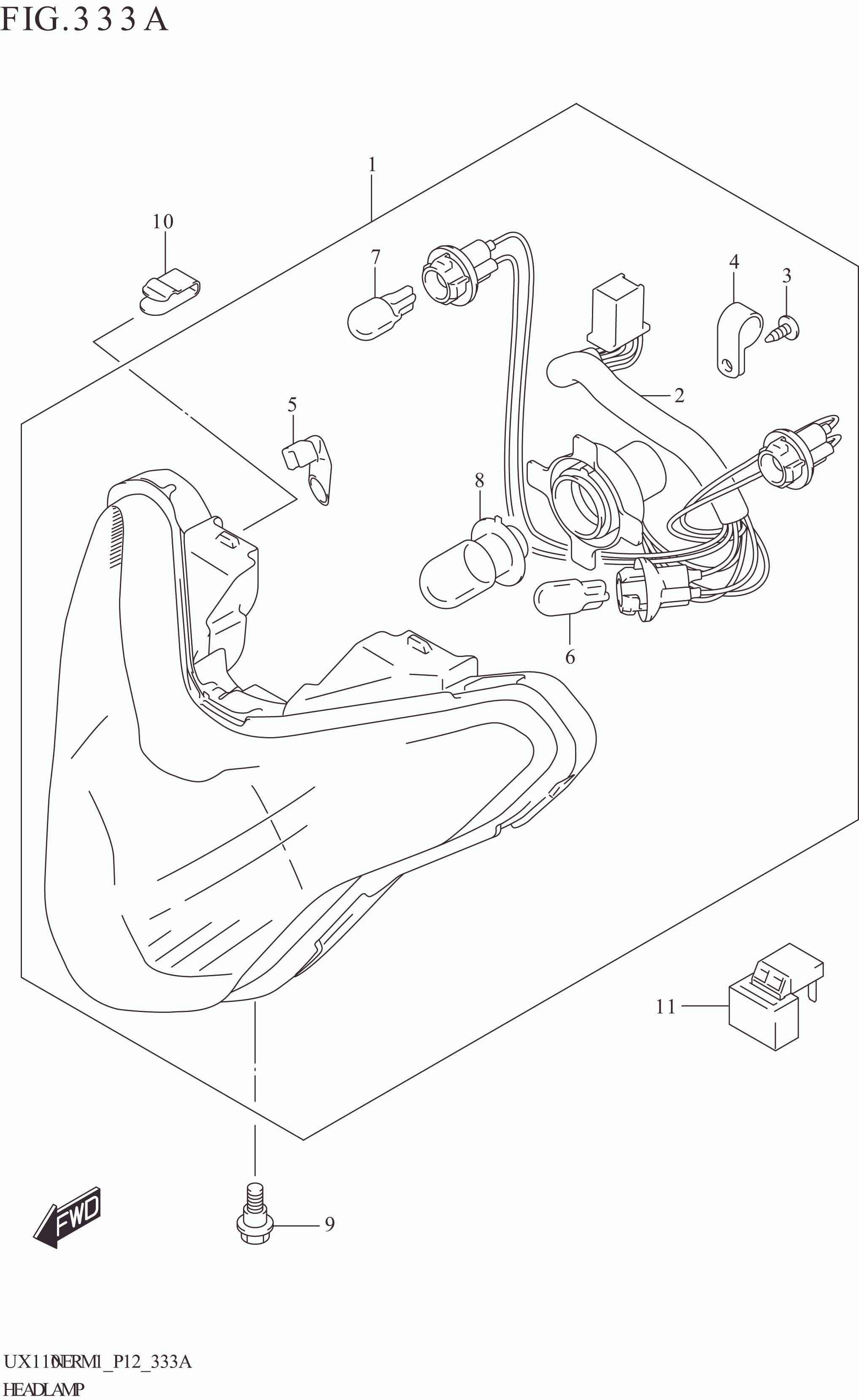

FIG. 333A HEADLAMP

FIG. 333A HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-49K00-000 LAMP ASSY,FRONT COMB 1 Rp345.000
2 35171-49K00-000 .CORD ASSY 1 Rp65.500
3 35187-10J00-000 .SCREW 1 Rp3.000
4 35328-25GA0-000 .HOLDER 1 Rp6.500
5 35650-23K00-000 .TUBE BREATH 2 Rp12.000
6 09471-12028-000 .BULB (12V3.4W,T10) 1 Rp8.000
7 09471-12114AS01
SUB: 09471-12203-000		 .BULB (12V10W) 2 Rp14.000
8 09471-12213-000 .BULB (12V32/32W) 1 Rp35.500
9 35151-12K00-000 SCREW 1 Rp9.000
10 35194-23F00-000 CLIP,HEADLAMP 2 Rp8.000
11 38610-23J40-000
SUB: 38610-23J10-000		 RELAY ASSY,TURNSIGNAL 1 Rp48.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
