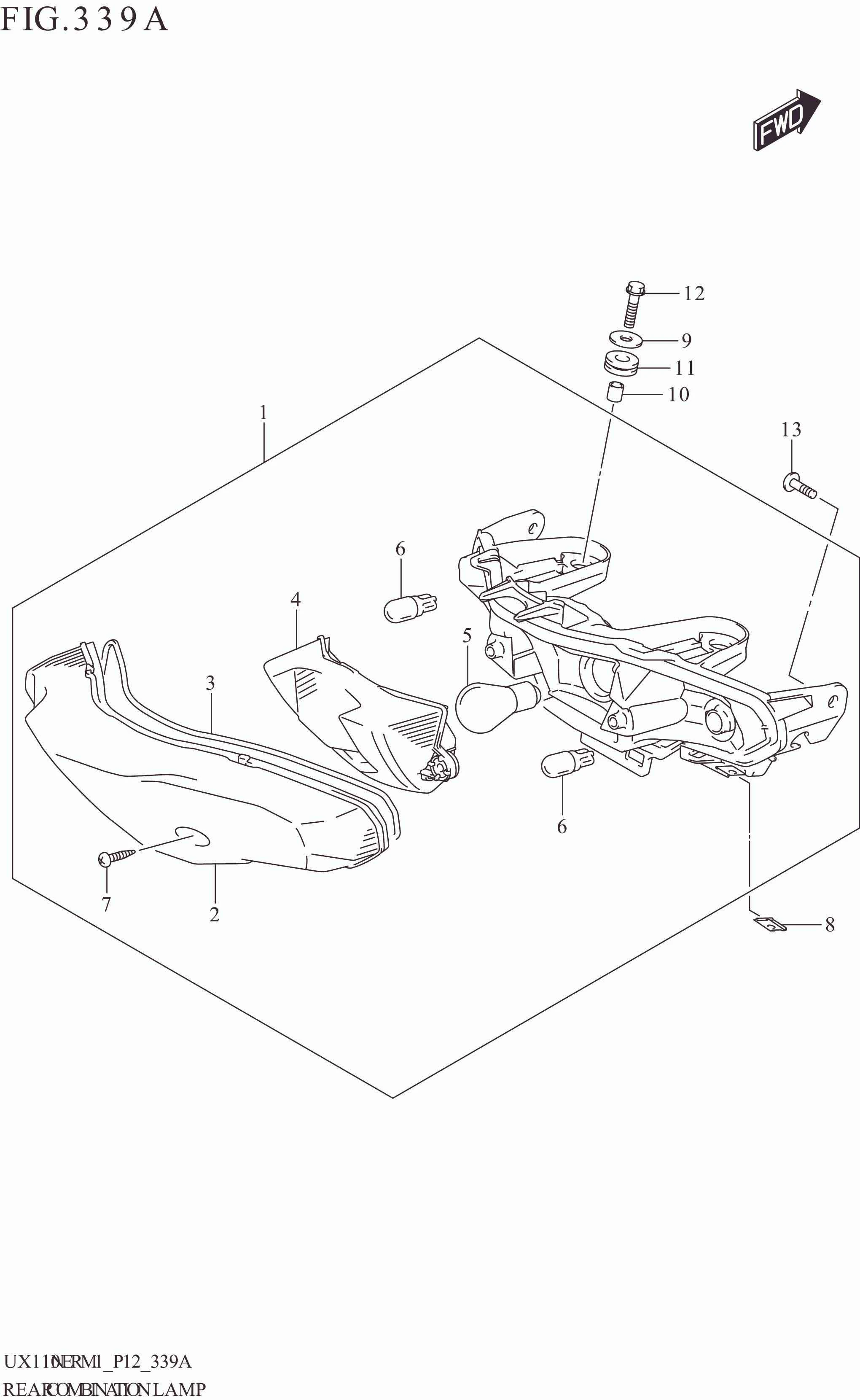

FIG. 339A REAR COMBINATION LAMP

FIG. 339A REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-49K00-000 LAMP ASSY,REAR COMB 1 Rp251.000
2 35712-49K00-000 .LENS 1 Rp83.500
3 35713-49K00-000 .GASKET 1 Rp18.500
4 35719-49K00-000 .INNER LENS 1 Rp62.500
5 09471-12127-000
SUB: 09471-12119-000		 .BULB (12V18/5W) 1 Rp12.500
6 09471-12114AS01
SUB: 09471-12203-000		 .BULB (12V10W) 2 Rp14.000
7 03211-0412A-000 .SCREW 2 Rp13.000
8 09148-04019-000 NUT 2 Rp6.500
9 09160-06028-000 WASHER (6.5X18X1.0) 2 Rp3.500
10 09180-06350-000 SPACER (6.5X9X9.5) 2 Rp5.000
11 09320-09016-000 CUSHION (9X18X9.5) 2 Rp4.000
12 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 2 Rp6.500
13 03541-0416A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
