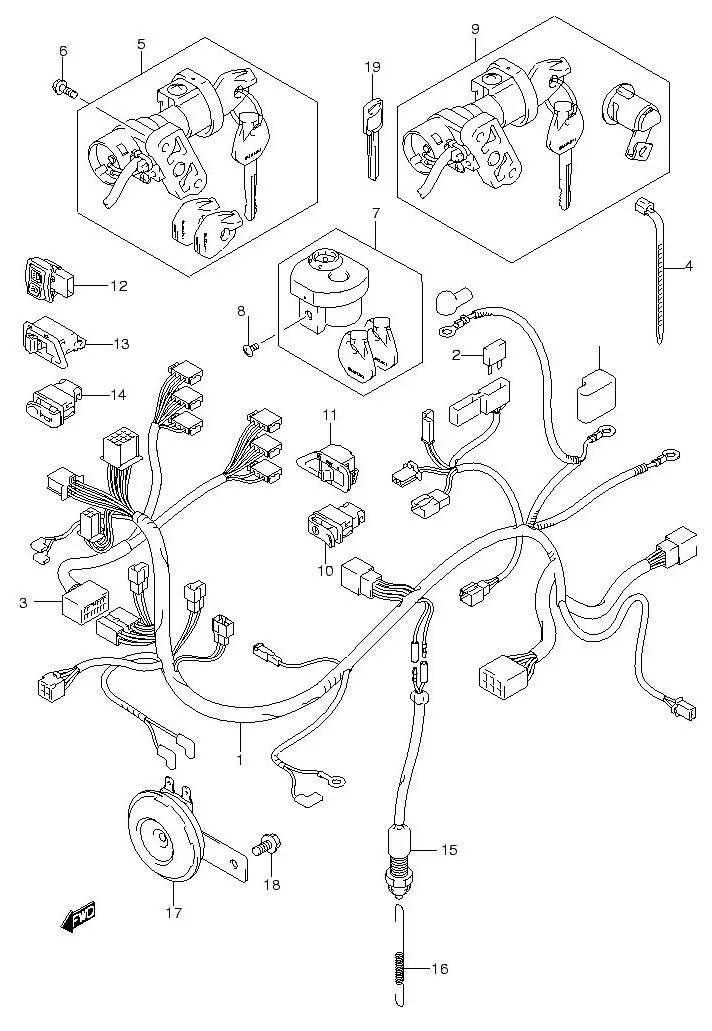

Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	36610-07H80-000 SUB: 36610B07H80N000	HARNESS, WIRING	1	Rp321.500	FK110 D
1-1	DISCONTINUE SUB: 36610B07H30NDEM	HARNESS, WIRING	1	-	FK110-SD
2	09481-10501-000 SUB: 09481M10501-000	•FUSE (10A)	2	Rp12.500
3	36620-46G00-000 SUB: 36620B46G00N000	HARNESS ASSY, CONTROL SW	1	Rp49.000
4-1	36990-25G00-000	CLAMP (L:95)	1	Rp13.000
4-2	09407-18402-000 SUB: 09407B18402N000	CLAMP (L:165)	1	Rp8.000
4-3	DISCONTINUE SUB: 09407B25401N000	CLAMP (L:235)	1	-
5	37100-20G20-000 SUB: 37100B20G11N000	LOCK ASSY, STEERING	1	Rp237.000
6	01550-0620B-000 SUB: 01550B0620BN000	BOLT	2	Rp3.500
7	DISCONTINUE SUB: 37155B20G00N000	SHUTTER, STEERING LOCK	1	-
8	02142-05803-000	SCREW	2	-
9	37019-20G20-000 SUB: 37109B20G10N000	LOCK SET, STEERING & SEAT	1	Rp248.500
10	37310-09G30-000 SUB: 37310B09G30N000	SWITCH ASSY, STARTER	1	Rp27.500
11	37340-10E40-000 SUB: 37340B10E10N000	SWITCH ASSY, LIGHTING	1	Rp46.000
12	37420-10E10-000 SUB: 37420B10E00N000	SWITCH ASSY, DIMMER	1	Rp19.500
13	37510-10E00-000 SUB: 37510B10E00N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.500
14	37520-09G51-000 SUB: 37520B09G30N000	SWITCH ASSY, HORN	1	Rp20.000
15	37740-35390-000 SUB: 37740-35390L000	SWITCH ASSY, STOP LAMP	1	Rp17.000
16	09443-06083-000 SUB: 09443-06083L000	SPRING	1	Rp4.000
17	38500-09G10-001 SUB: 38500B09G10N000	HORN ASSY	1	Rp61.000
18	01550B0612BN000	BOLT	1	Rp2.500
19	DISCONTINUE SUB: 37146B14F00N000	KEY BLANK	1	-
