NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 STARTER MOTORFIG.19 MAGNETO ASSYFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 HEADLAMPFIG.24 TURN SIGNALFIG.25 LAMP COMBINATION REARFIG.26 WIRING HARNESS

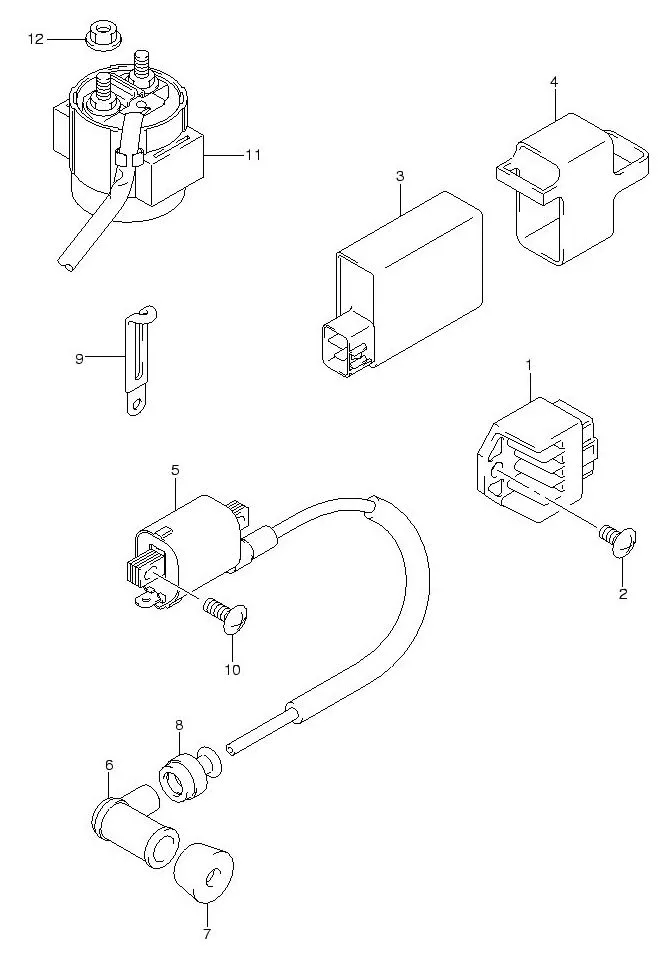

FIG.21 ELECTRICAL

FIG.21 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 32800-45H01-000
SUB: 32800B32G00N000		 RECTIFIER ASSY 1 Rp127.000
2 02112-0612A-000
SUB: 02112B0612BN000		 SCREW 1 Rp3.500
3 DISCONTINUE
SUB: 32900B09G31N000		 CDI UNIT 1 -
4 32980-28F00-000
SUB: 32980B28F00N000		 CUSHION, CDI UNIT 1 Rp33.000
5 33410-09G11-000
SUB: 33410B09G10N000		 COIL ASSY, IGNITION 1 Rp73.500
6 33510-22010AS01
SUB: 33510B20G00N000		 CAP, SPARK PLUG 1 Rp39.500
7 33541-38210-000 SEAL, SPARK PLUG 1 Rp11.000
8 DISCONTINUE
SUB: 33542-38B00L000		 SEAL, HIGH TENSION CORD 1 -
9 DISCONTINUE
SUB: 09404B06433N000		 CLAMP (L:80) 1 -
10 02112-0616B-000
SUB: 02112B0616BN000		 SCREW 2 Rp6.500
11 31800-31C00-000
SUB: 31800-31C00L000		 RELAY ASSY, STARTING 1 Rp77.000
12 08361-3506A-000
SUB: 08361B3506AN000		 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
