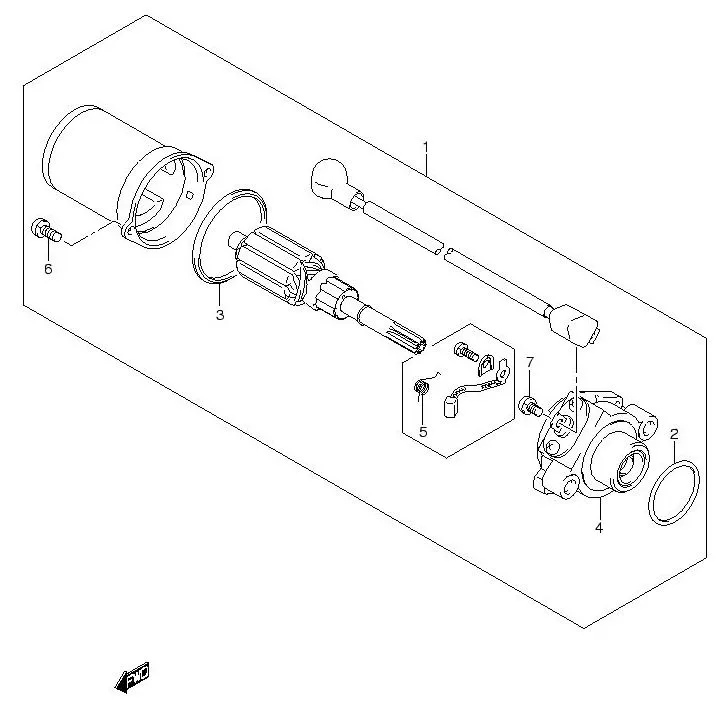

FIG.18 STARTER MOTOR

FIG.18 STARTER MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-30D70-000
SUB: 31100B30D70N000		 MOTOR ASSY, STARTING 1 Rp483.500
2 31156-05B00-000
SUB: 31156B05B00N000		 •O RING 1 Rp10.000
3 DISCONTINUE
SUB: 31157-02540-000		 •PACKING 1 -
4 31130-30D10-000
SUB: 31130B30D10N000		 •FRONT BRACKET ASSY 1 Rp93.000
5 31135-05B00-000
SUB: 31135-05B00L000		 •SPRING, BRUSH 2 Rp41.000
6 02112-3620A-000
SUB: 02112-36203-000		 •SCREW 2 Rp4.000
7 02112-3406A-000
SUB: 02112B3406AN000		 •SCREW 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
