NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 STARTER MOTORFIG.19 MAGNETO ASSYFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 HEADLAMPFIG.24 TURN SIGNALFIG.25 LAMP COMBINATION REARFIG.26 WIRING HARNESS

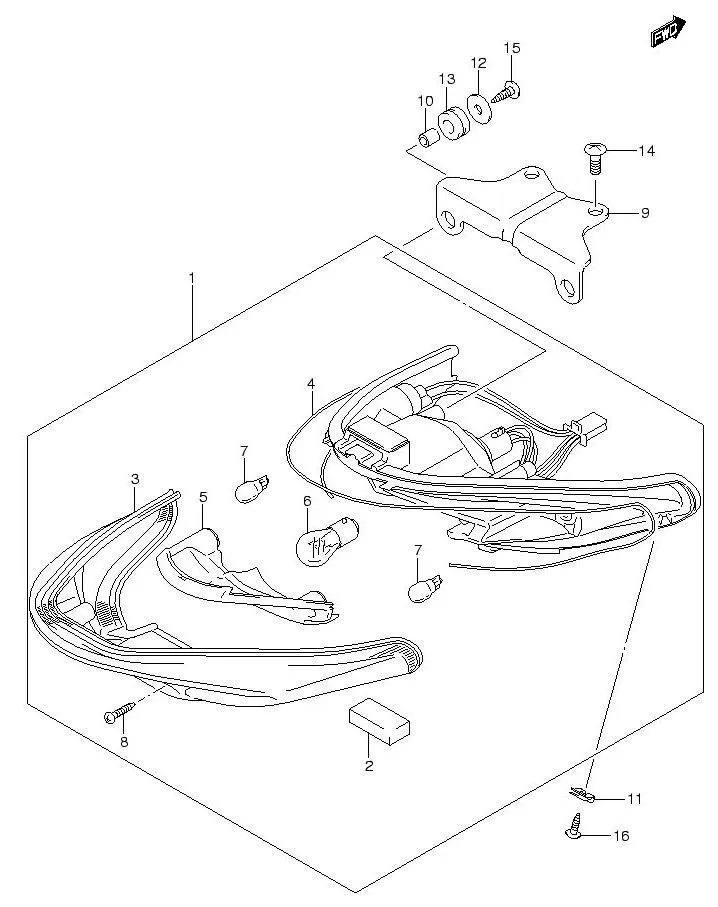

FIG.25 LAMP COMBINATION REAR

FIG.25 LAMP COMBINATION REAR
No No. Part Description Qty Price Per Pcs Remarks
1 35710-07H00-000
SUB: 35710B07H00N000		 LAMP ASSY, REAR COMB 1 Rp164.500
2 33652-07H00-000 •PROTECTOR 1 -
3 35712-07H00-000
SUB: 35712B07H00N000		 •LENS 1 Rp29.000
4 DISCONTINUE
SUB: 35713B07H00N000		 •GASKET, LENS 1 -
5 35912-07H00-000
SUB: 35912B07H00N000		 •LENS, INNER 1 Rp17.000
6 09471-12127-000
SUB: 09471B12119N000		 •BULB (12V 18/5W) 1 Rp12.500
7 09471-12114AS01
SUB: 09471B12203N000		 •BULB (12V10W) 2 Rp14.000
8 03211-04206-000
SUB: 03211B04206N000		 •SCREW 2 Rp3.500
9 DISCONTINUE
SUB: 35720B07H00N000		 BRACKET, REAR COMB 1 -
10 48211-09G00-000
SUB: 48211B09G00N000		 SPACER 2 Rp3.000
11 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
12 09160-05045-000
SUB: 09160B05045N000		 WASHER, REAR COMB 4 Rp4.500
13 09320-09016-000
SUB: 09320-09016L000		 CUSHION 4 Rp4.000
14 01550B0612BN000 BOLT 2 Rp2.500
15 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 2 Rp3.500
16 03541-0520B-000
SUB: 03541B0520BN000		 SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
