NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 STARTER MOTORFIG.19 MAGNETO ASSYFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 HEADLAMPFIG.24 TURN SIGNALFIG.25 LAMP COMBINATION REARFIG.26 WIRING HARNESS

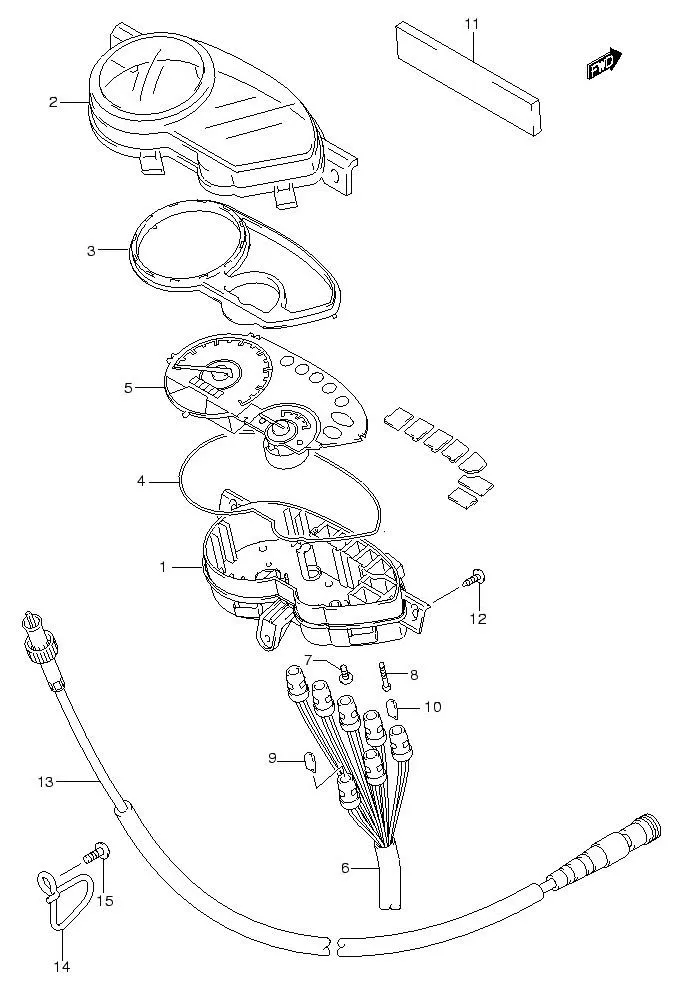

FIG.22 SPEEDOMETER

FIG.22 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
34100-07H21-000
SUB: 34100B07H21N000		 SPEEDOMETER ASSY 1 Rp314.000
1 DISCONTINUE
SUB: 34111B07H00N000		 CASE, LOWER 1 -
2 34112-07H00-000
SUB: 34112B07H00N000		 CASE, UPPER 1 Rp38.500
3 DISCONTINUE
SUB: 34113B07H00N000		 PLATE 1 -
4 DISCONTINUE
SUB: 34114B07H00N000		 CUSHION 1 -
5 DISCONTINUE
SUB: 34120B07H00N000		 SPEEDOMETER 1 -
6 34173-07H00-000
SUB: 34173B07H00N000		 SOCKET 1 Rp73.000
7 DISCONTINUE
SUB: 34186B09G00N000		 SCREW (4X8) 2 -
8 DISCONTINUE
SUB: 34383B09G00N000		 SCREW (3X22) 2 -
9 DISCONTINUE
SUB: 09471B12103N000		 BULB (12V 3.4W,T6.5) 1 -
10 09471-12108-000
SUB: 09471B12108N000		 BULB (12V 1.7W'T6.5) 1 Rp9.500
11 34188-09G00-000
SUB: 34188B09G00N000		 CUSHION, SPEEDOMETER 1 Rp7.500
12 03541-0520B-000
SUB: 03541B0520BN000		 SCREW, SPEEDOMETER 3 Rp3.000
13 DISCONTINUE
SUB: 34910B09G01N000		 CABLE ASSY, SPEEDOMETER 1 -
14 DISCONTINUE
SUB: 34931B09G10N000		 GUIDE, SPEEDOMETER CABLE 1 -
15 02142-0612A-000
SUB: 02142B0612BN000		 BOLT, SPEEDOMETER GUIDE 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
