NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.18 STARTER MOTOR FIG.19 MAGNETO ASSY FIG.20 BATTERY FIG.21 ELECTRICAL FIG.22 SPEEDOMETER FIG.23 HEADLAMP FIG.24 TURN SIGNAL FIG.25 LAMP COMBINATION REAR FIG.26 WIRING HARNESS

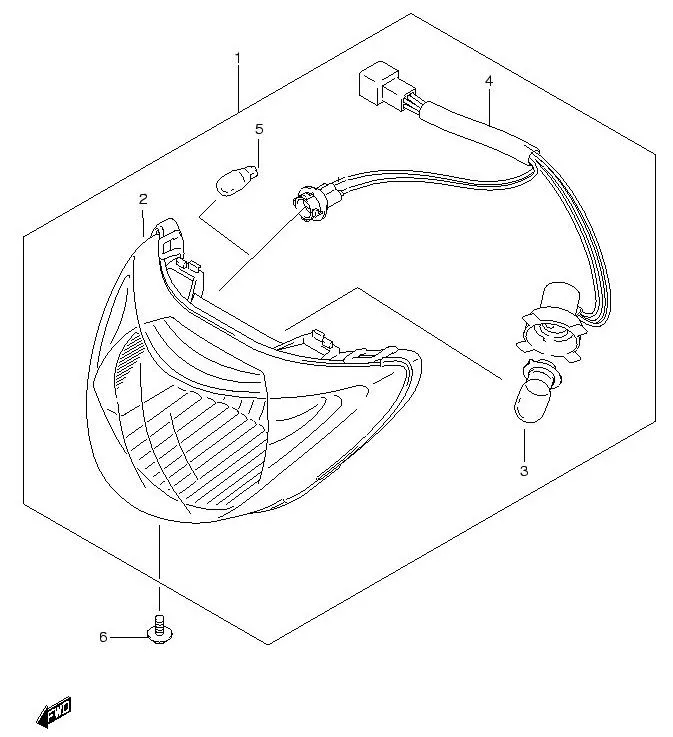

FIG.23 HEADLAMP

FIG.23 HEADLAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35100-07H10-000 SUB: 35100B07H10N000	LAMP ASSY FR COMB	1	Rp223.000
2	35100-07H10-000 SUB: 35100B07H10N000	•HEADLAMP ASSY	1	Rp223.000
3	DISCONTINUE SUB: 35171B31C20N000	•SOCKET, HEAD LAMP	1	-
4	09471-12213-000 SUB: 09471B12213N000	•BULB (12V32/32W)	1	Rp35.500
5	09471-12028-000 SUB: 09471-12028L000	•BULB (12V3.4W)	1	Rp8.000
6	09136-05065-000 SUB: 09136B05065N000	SCREW, HEADLAMP	1	Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
