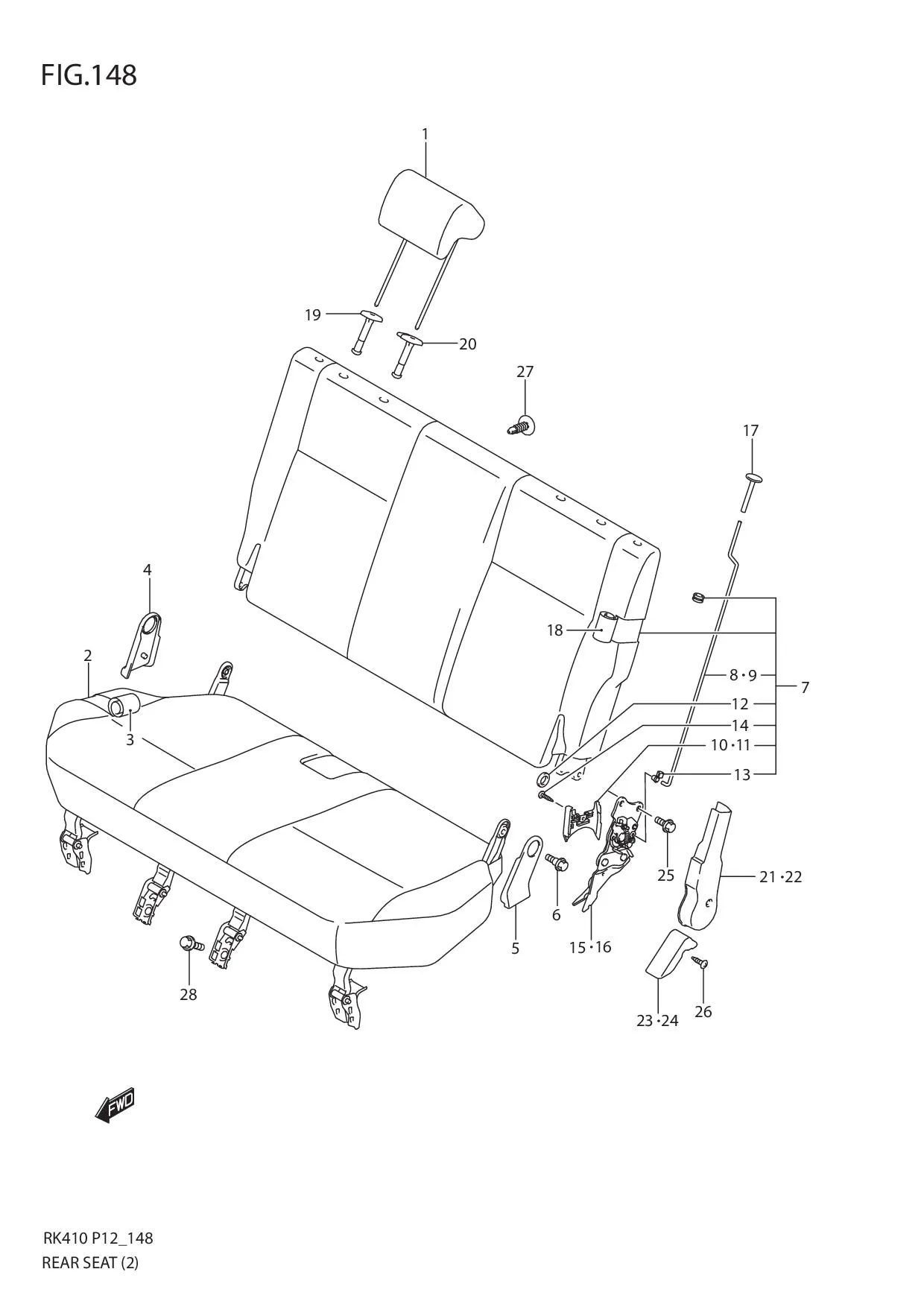

FIG.148 REAR SEAT (2)

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 86401M67K00-W8B	HEADRESTRAINT ASSY	2	-
2	DISCONTINUE SUB: 87105M67K00-000	CUSHION SUB ASSY, REAR	1	-
3	DISCONTINUE SUB: 87180M67K00-HFV	TRIM, REAR CUSHION	1	-
4	DISCONTINUE SUB: 87172M67K00-U1G	COVER, STAY OUTSIDE RH (MAROON)	1	-
5	DISCONTINUE SUB: 87672M67K00-U1G	COVER, STAY OUTSIDE LH (MAROON)	1	-
6	DISCONTINUE SUB: 87295M67K00-000	BOLT, CUSH STAY FIX	2	-
7	DISCONTINUE SUB: 87305M67K00-000	BACK SUB ASSY, REAR	1	-
8	87215M67K00-000	•ROD, RR RECLINING RH	1	-
9	DISCONTINUE SUB: 87715M67K00-000	•ROD, RR RECLINING LH	1	-
10	DISCONTINUE SUB: 87222M76F00-U1G	•COVER, RECLINING UPPER INSIDE RH (MAROON)	1	-
11	DISCONTINUE SUB: 87722M76F00-U1G	•COVER, RECLINING UPPER INSIDE LH (MAROON)	1	-
12	DISCONTINUE SUB: 87286M67K00-000	•BUSH, CUSHION STAY FIX	2	-
13	09403-04306-000	•CLAMP	2	Rp24.000
14	03241-0510A-000	•SCREW	2	Rp8.000
15	DISCONTINUE SUB: 87210M67K00-000	LOCK ASSY, RREAR RH	1	-
16	DISCONTINUE SUB: 87710M67K00-000	LOCK ASSY, RREAR LH	1	-
17	87211M74G00-U1G	KNOB, REAR RECLINING (MAROON)	2	Rp5.500
18	DISCONTINUE SUB: 87380M59K00-HFV	TRIM, REAR BACK	1	-
19	DISCONTINUE SUB: 85341M81A00-U1G	GUIDE, HEADRESTRAINT (MAROON)	2	-
20	DISCONTINUE SUB: 85840M81A00-U1G	GUIDE, HEADRESTRAINT (MAROON)	2	-
21	DISCONTINUE SUB: 87221M76F00-U1G	COVER, RECLINING UPPER OUTSIDE RH (MAROON)	1	-
22	DISCONTINUE SUB: 87223M78F00-U1G	COVER, RECLINING LOWER OUTSIDE RH (MAROON)	1	-
23	DISCONTINUE SUB: 87721M76F00-U1G	COVER, RECLINING UPPER OUTSIDE LH (MAROON)	1	-
24	DISCONTINUE SUB: 87723M78F00-U1G	COVER, RECLINING LOWER OUTSIDE LH (MAROON)	1	-
25	DISCONTINUE SUB: 87335M67K00-000	BOLT, RECLINING	4	-
26	03241-0508A-000	SCREW, COVER	4	Rp10.500
27	75139M70F00-U1G	CLIP (MAROON)	5	-
28	01551-1020A-000	BOLT, MTG	8	Rp18.000
