KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.97 FRONT HOOD PANEL (1)FIG.98 FRONT HOOD PANEL (2)FIG.99 FRONT FENDER (1)FIG.100 FRONT FENDER (2)FIG.101 FRONT BODY PANEL (1)FIG.102 FRONT BODY PANEL (2)FIG.103 FLOOR PANEL (1)FIG.104 FLOOR PANEL (2)FIG.105 SIDE BODY PANELFIG.106 ROOF PANELFIG.107 FRONT BUMPER (1)FIG.108 FRONT BUMPER (2)FIG.109 REAR BUMPER (1)FIG.110 REAR BUMPER (2)FIG.111 ISTRUMENT PANEL (1)FIG.112 ISTRUMENT PANEL (2)FIG.113 VENTILATORFIG.114 HEATER UNIT (1)FIG.115 HEATER UNIT (2)FIG.116 HEATER CONTROLFIG.117 CONSOLE BOXFIG.118 FLOOR CARPET (1)FIG.119 FLOOR CARPET (2)FIG.120 INTERIOR TRIM (1)FIG.121 INTERIOR TRIM (2)FIG.122 COVER/CAPFIG.123 ROOF LININGFIG.124 ROOF MOLDINGFIG.125 EMBLEMFIG.126 WINDSHIELD GLASSFIG.127 FUEL LID OPENERFIG.128 FRONT DOOR PANEL (1)FIG.129 FRONT DOOR PANEL (2)FIG.130 FRONT DOOR REGULATORFIG.131 FRONT DOOR LOCK (1)FIG.132 FRONT DOOR LOCK (2)FIG.133 REAR DOOR PANEL (1)FIG.134 REAR DOOR PANEL (2)FIG.135 REAR DOOR REGULATORFIG.136 REAR DOOR LOCK (1)FIG.137 REAR DOOR LOCK (2)FIG.138 BACK DOOR PANEL (1)FIG.139 BACK DOOR PANEL (2)FIG.140 BACK DOOR LOCK (1)FIG.141 BACK DOOR LOCK (2)FIG.142 MIRROR/SUNVISOR (1)FIG.143 MIRROR/SUNVISOR (2)FIG.144 SEAT BELTFIG.145 FRONT SEAT (1)FIG.146 FRONT SEAT (2)FIG.147 REAR SEAT (1)FIG.148 REAR SEAT (2)FIG.149 FUEL TANK (1)FIG.150 FUEL TANK (2)FIG.151 TOOLFIG.152 AIR CONDITIONER (1)FIG.153 AIR CONDITIONER (2)FIG.154 COMPRESSOR (1)FIG.155 COMPRESSOR (2)

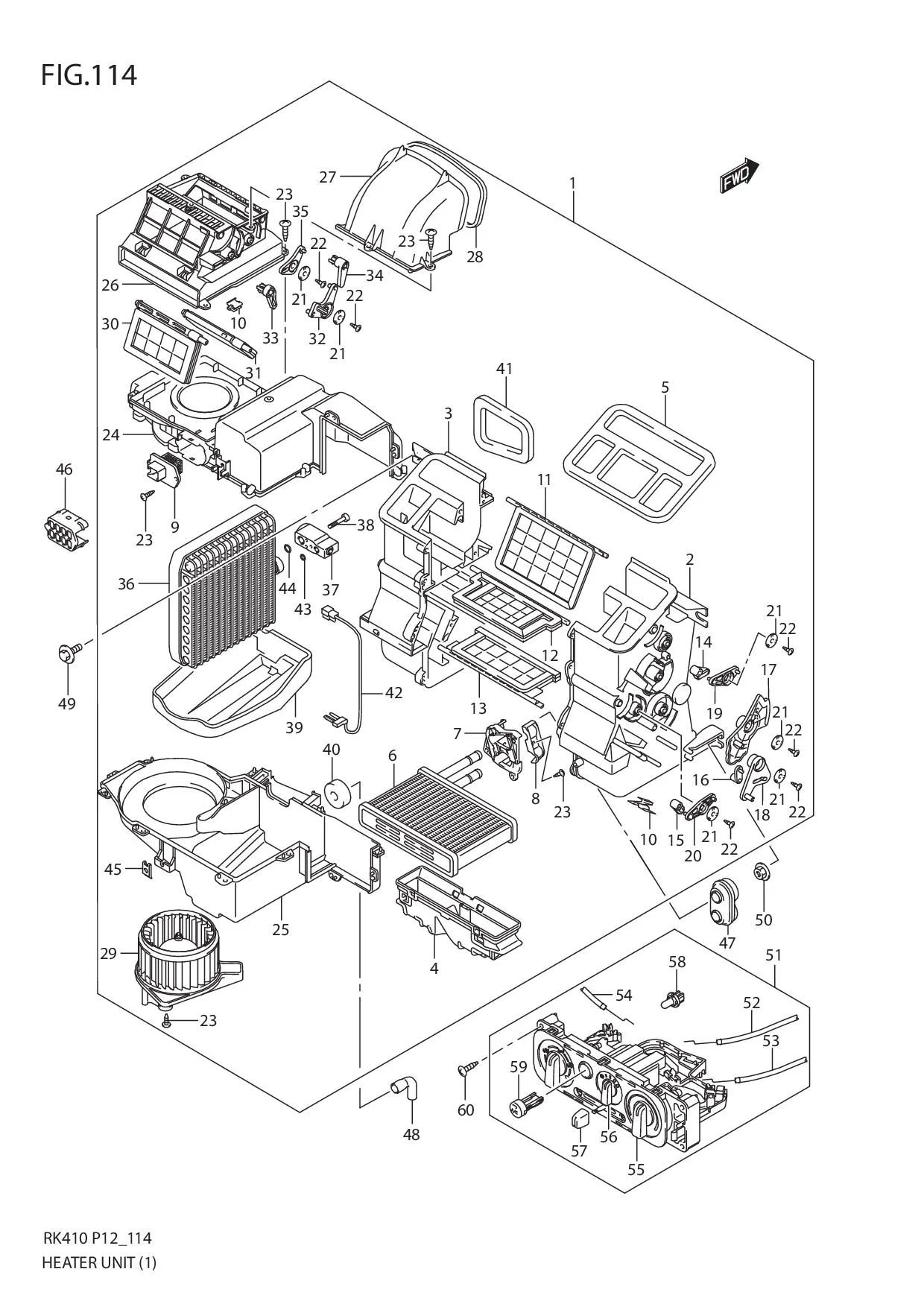

FIG.114 HEATER UNIT (1)

FIG.114 HEATER UNIT (1)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 74100M59K00-000		 HEATER UNIT 1 -
2 DISCONTINUE
SUB: 74111M59K00-000		 •CASE, HEATER, R 1 -
3 DISCONTINUE
SUB: 74112M59K00-000		 •CASE, HEATER, L 1 -
4 DISCONTINUE
SUB: 74113M59K00-000		 •DUCT, FOOT 1 -
5 DISCONTINUE
SUB: 74116M59K00-000		 •PACKING, FACE 1 -
6 74120M59K00-000 •CORE, HEATER 1 Rp992.500
7 DISCONTINUE
SUB: 74121M59K00-000		 •RETAINER, A 1 -
8 DISCONTINUE
SUB: 74122M59K00-000		 •RETAINER, B 1 -
9 74140M68K20-000
SUB: 74140M59K00-000		 •RESISTER 1 Rp244.000
10 DISCONTINUE
SUB: 74161M59K00-000		 •CLAMP, CABLE 3 -
11 DISCONTINUE
SUB: 74171M59K00-000		 •DAMPER, VENT/DEFROSTER 1 -
12 DISCONTINUE
SUB: 74172M59K00-000		 •DAMPER, FOOT 1 -
13 DISCONTINUE
SUB: 74173M59K00-000		 •DAMPER, AIR MIXTURE 1 -
14 DISCONTINUE
SUB: 74181M59K00-000		 •LEVER, VENT/DEFROSTER 1 -
15 DISCONTINUE
SUB: 74182M59K00-000		 •LEVER, FOOT 1 -
16 DISCONTINUE
SUB: 74183M59K00-000		 •LEVER, AIR MIXTURE 1 -
17 DISCONTINUE
SUB: 74184M59K00-000		 •LINK, MODE 1 -
18 DISCONTINUE
SUB: 74185M59K00-000		 •LINK, AIR MIXTURE 1 -
19 DISCONTINUE
SUB: 74186M59K00-000		 •LEVER, MODE JOINT A 1 -
20 DISCONTINUE
SUB: 74187M59K00-000		 •LEVER, MODE JOINT B 1 -
21 DISCONTINUE
SUB: 74188M59K00-000		 •WASHER 6 -
22 DISCONTINUE
SUB: 74191M59K00-000		 •SCREW 6 -
23 DISCONTINUE
SUB: 74192M59K00-000		 •SCREW 42 -
24 DISCONTINUE
SUB: 74211M59K00-000		 •CASE, BLOWER UPPER 1 -
25 DISCONTINUE
SUB: 74212M59K00-000		 •CASE, BLOWER LOWER 1 -
26 DISCONTINUE
SUB: 74213M59K00-000		 •CASE, INTAKE 1 -
27 DISCONTINUE
SUB: 74214M59K00-000		 •JOINT, AIR INLET 1 -
28 DISCONTINUE
SUB: 74221M59K00-000		 •PACKING, INTAKE 1 -
29 DISCONTINUE
SUB: 74250M59K00-000		 •MOTOR, BLOWER 1 -
30 DISCONTINUE
SUB: 74271M59K00-000		 •DAMPER, INTAKE REAR 1 -
31 DISCONTINUE
SUB: 74272M59K00-000		 •DAMPER, INTAKE FRONT 1 -
32 DISCONTINUE
SUB: 74281M59K00-000		 •LEVER, INTAKE 1 -
33 DISCONTINUE
SUB: 74282M59K00-000		 •LEVER, INTAKE REAR 1 -
34 DISCONTINUE
SUB: 74283M59K00-000		 •LEVER, INTAKE FRONT 1 -
35 DISCONTINUE
SUB: 74284M59K00-000		 •LEVER, INTAKE JOINT 1 -
36 95411M59K00-000 •EVAPORATOR 1 Rp4.373.500
37 95431M79GS0-000 •VALVE, EXPANSION 1 Rp889.500
38 DISCONTINUE
SUB: 95432M59K00-000		 •BOLT 2 -
39 DISCONTINUE
SUB: 95461M59K00-000		 •INSULATOR 1 -
40 95462M59K00-000 •PACKING, DRAIN 1 Rp17.500
41 95463M59K00-000 •PACKING 1 Rp70.500
42 DISCONTINUE
SUB: 95541M59K00-000		 •THERMISTER 1 -
43 95895-50G00-000
SUB: 95895M59K00-000		 •O RING 1 Rp12.500
44 95896-50G00-000
SUB: 95896M59K00-000		 •O RING 1 Rp19.000
45 09148-05045-000
SUB: 09148B05045N000		 •NUT 1 Rp4.000
46 DISCONTINUE
SUB: 74114M59K00-000		 COVER, RESISTOR 1 -
47 DISCONTINUE
SUB: 74812M82010-000		 GROMMERT, HTR 1 -
48 DISCONTINUE
SUB: 95481M79GS0-000		 HOSE, DRAIN 1 -
49 09116-06167-000
SUB: 09116-06167L000		 BOLT, HTR 3 Rp7.000
50 09159-06081-000 NUT 3 Rp14.500
51 DISCONTINUE
SUB: 74400M59KA0-000		 LEVER ASSY, HEATER CONTROL 1 -
52 DISCONTINUE
SUB: 74451M79G40-000		 •CABLE, MODE CONTROL 1 -
53 DISCONTINUE
SUB: 74452M79G40-000		 •CABLE, TEMP CONTROL 1 -
54 DISCONTINUE
SUB: 74453M79G40-000		 •CABLE, F&R CONTROL 1 -
55 74461-61J00-000
SUB: 74461M61J00-000		 •KNOB, MODE CONT 2 Rp39.000
56 74462-61J00-000
SUB: 74462M61J00-000		 •KNOB, FAN CONT 1 Rp39.500
57 74463M79G10-000 •KNOB, FRESH AIR 1 Rp37.000
58 74531-61J90-000
SUB: 74531M61J00-000		 •BULB, HTR CONT PNL 2 Rp127.500
59 95521-61J10-000
SUB: 95521M61J10-000		 •KNOB, AIR CONDITIONER SWITCH 1 Rp69.000
60 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
