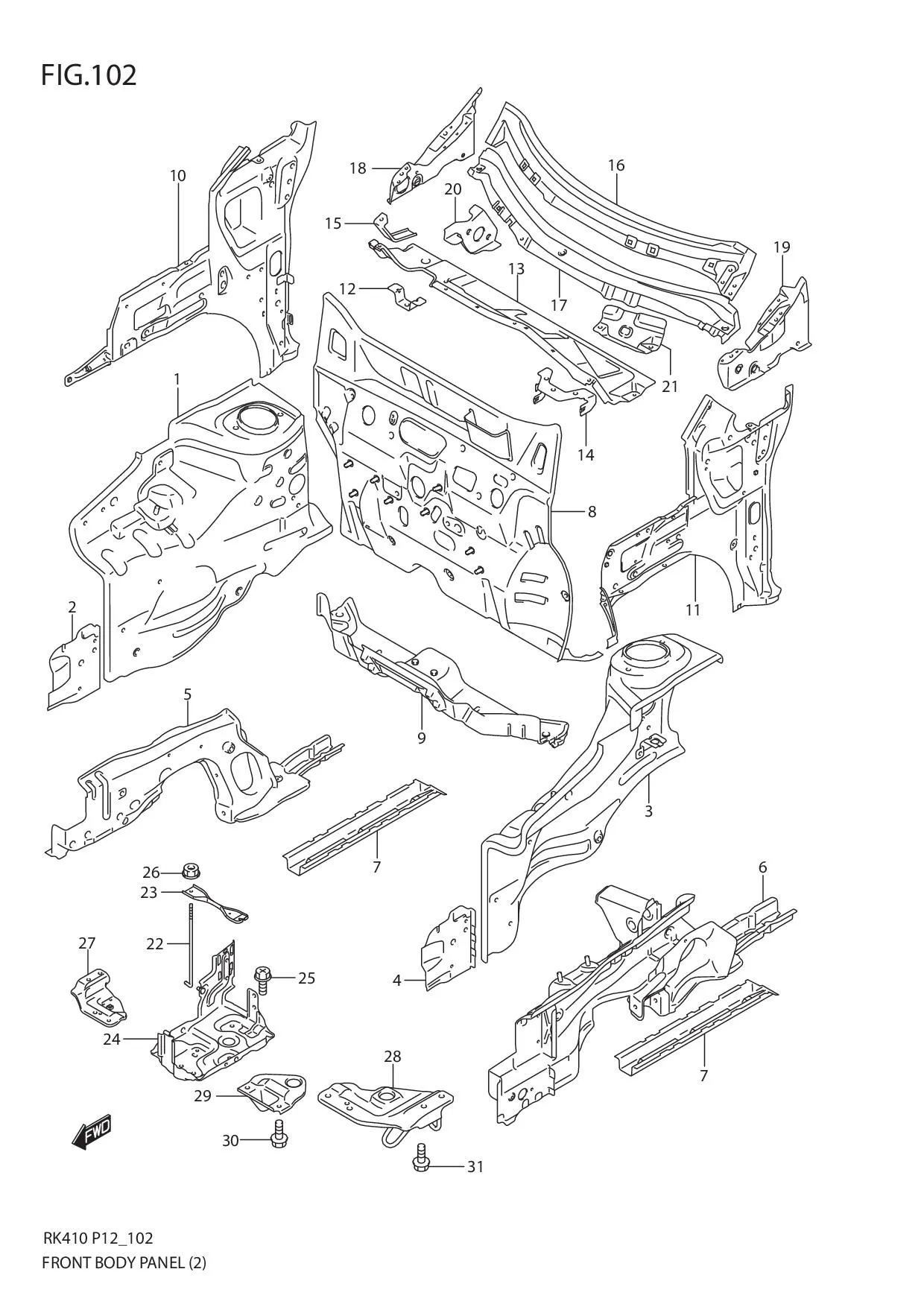

FIG.102 FRONT BODY PANEL (2)

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 58310M65L00-000	PANEL, FENDER APRON RH	1	-
2	DISCONTINUE SUB: 58313M65L00-000	EXTENSION, APRON FR REINF RH	1	-
3	58410M65L00-000	PANEL, FENDER APRON LH	1	Rp821.000
4	DISCONTINUE SUB: 58413M65L00-000	EXTENSION, APRON FR REINF LH	1	-
5	DISCONTINUE SUB: 58610M65L00-000	MEMBER, APRON SIDE RH	1	-
6	DISCONTINUE SUB: 58710M65L00-000	MEMBER, APRON SIDE LH	1	-
7	DISCONTINUE SUB: 58631M79F00-000	MEMBER, FLOOR SIDE	2	-
8	DISCONTINUE SUB: 59100M65L00-000	PANEL, DASH	1	-
9	DISCONTINUE SUB: 59210M65L00-000	CROSSMEMBER, DASH LOWER	1	-
10	DISCONTINUE SUB: 59230M65L00-000	PANEL, DASH SIDE RH	1	-
11	DISCONTINUE SUB: 59280M65L00-000	PANEL, DASH SIDE LH	1	-
12	DISCONTINUE SUB: 58147M59K00-000	BRACKET, ACCEL CABLE	1	-
13	DISCONTINUE SUB: 59311M65L00-000	PANEL, COWL FRONT	1	-
14	DISCONTINUE SUB: 59313M59K00-000	BRACKET, FUSE BOX	1	-
15	DISCONTINUE SUB: 59314M73H00-000	BRACKET, WIPER UNIT	1	-
16	DISCONTINUE SUB: 59711M59K00-000	PANEL, COWL TOP	1	-
17	DISCONTINUE SUB: 59712M59K00-000	MEMBER, COWL TOP	1	-
18	DISCONTINUE SUB: 59713M65L00-000	PANEL, COWL SIDE RH	1	-
19	DISCONTINUE SUB: 59718M65L00-000	PANEL, COWL SIDE LH	1	-
20	DISCONTINUE SUB: 59715M59K00-000	STAY, COWL TOP CTR	1	-
21	DISCONTINUE SUB: 59716M73H00-000	STAY, COWL TOP LH	1	-
22	63461M75J00-000	BOLT, BATTERY	2	Rp7.000
23	72511-78000-000 SUB: 72511B78000N000	RETAINER, BATTERY	1	Rp9.000
24	DISCONTINUE SUB: 72520M65L00-000	TRAY, BATTERY	1	-
25	02162-0612A-000	SCREW	4	Rp11.000
26	08316-1005A-000 SUB: 08316B1005AN000	NUT	2	Rp2.500
27	72350M65L00-000	BRACKET, STABILIZER RH	1	Rp251.500
28	72360M65L00-000	BRACKET, STABILIZER LH	1	Rp339.000
29	DISCONTINUE SUB: 72371M65L00-000	BRACKET, JACKING FR	1	-
30	01550-0825A-000 SUB: 01550B0825AN000	BOLT	2	Rp3.500
31	01550-1025A-000 SUB: 01550B1025AN000	BOLT	6	Rp3.500
