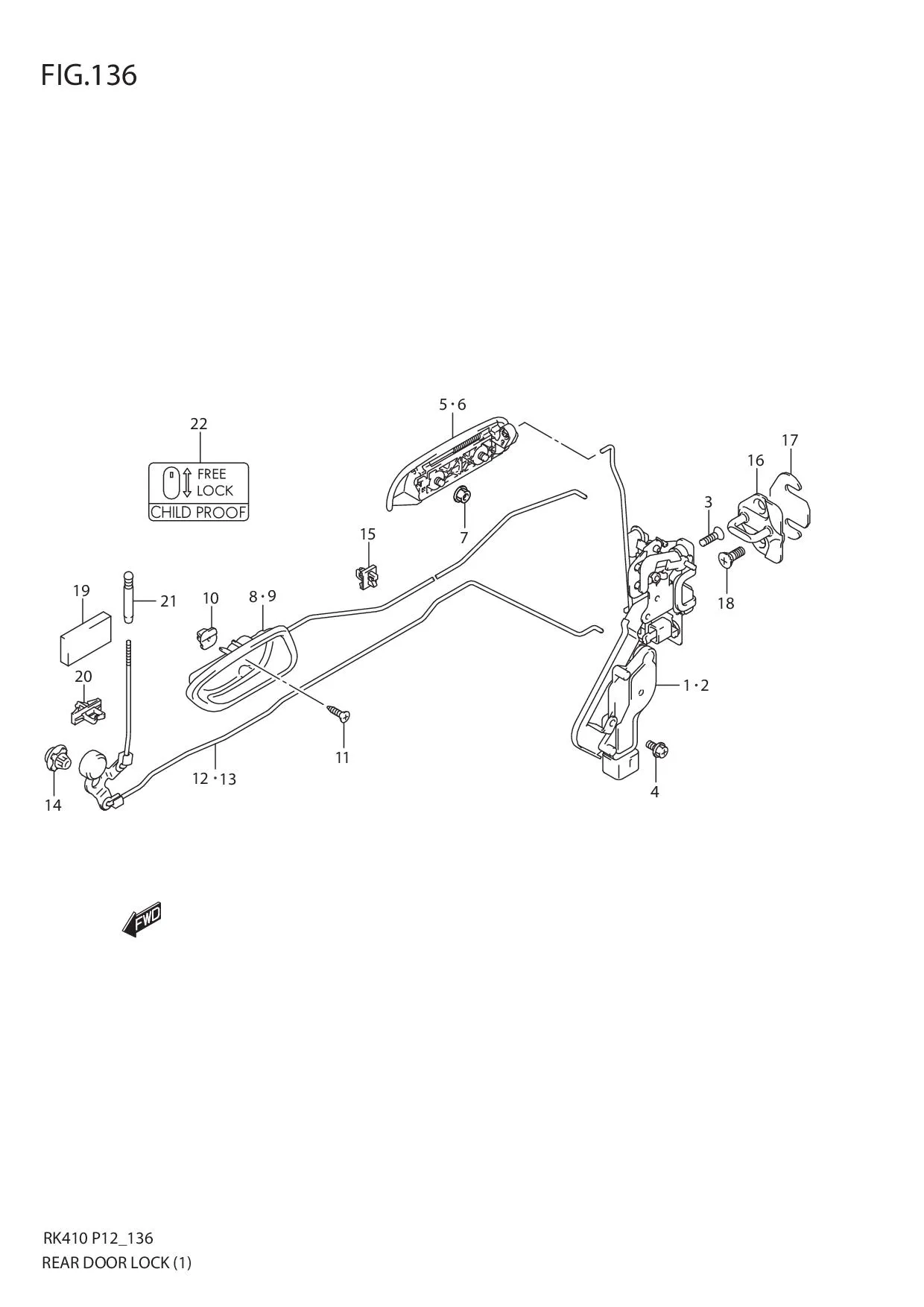

FIG.136 REAR DOOR LOCK (1)

FIG.136 REAR DOOR LOCK (1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82301M59K10-000	LATCH ASSY, REAR DOOR RH	1	-
2	82302M59K10-000	LATCH ASSY, REAR DOOR LH	1	-
3	09137-06028-000	SCREW (6X18)	6	Rp18.500
4	DISCONTINUE SUB: 01550B0612AN000	BOLT	2	-
5	82801M81A03-5PK	HANDLE ASSY, SIDE DR OUT RH	1	Rp74.500
6	82802M81A03-5PK	HANDLE ASSY, SIDE DR OUT LH	1	Rp74.500
7	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
8	DISCONTINUE SUB: 83103M59K00-P4Z	HANDLE ASSY, RR DR INSIDE RH (GRAY)	1	-
9	83104M59K00-P4Z	HANDLE ASSY, RR DR INSIDE LH (GRAY)	1	Rp39.000
10	09148-05031-000	NUT	2	Rp18.000
11	03521M0516B-000	SCREW	2	Rp5.000
12	DISCONTINUE SUB: 83270M59K00-000	ROD, RR DOOR INSIDE LOCK RH	1	-
13	DISCONTINUE SUB: 83280M59K00-000	ROD, RR DOOR INSIDE LOCK LH	1	-
14	DISCONTINUE SUB: 83261M59K00-000	PIN, RR DOOR INSIDE LOCK LINK	2	-
15	83271M60D00-000	CLIP	2	Rp9.500
16	DISCONTINUE SUB: 82610M59K00-000	STRIKER, DOOR LATCH	2	-
17	78199M78000-000	SPACER, DOOR LOCK STRIKER	0	Rp8.000
18	DISCONTINUE SUB: 09137M08004-000	SCREW (8X18)	4	-
19	77591M75000-000	PAD	2	Rp7.000
20	DISCONTINUE SUB: 09403-07324-000	CLIP	2	-
21	82982M65D00-P4Z	KNOB, DOOR INSIDE LOCK (GRAY)	2	Rp7.500
22	DISCONTINUE SUB: 86951M59K00-000	CAUTION PLATE, CHILD LOCK	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
