KARIMUN ESTILO RK410

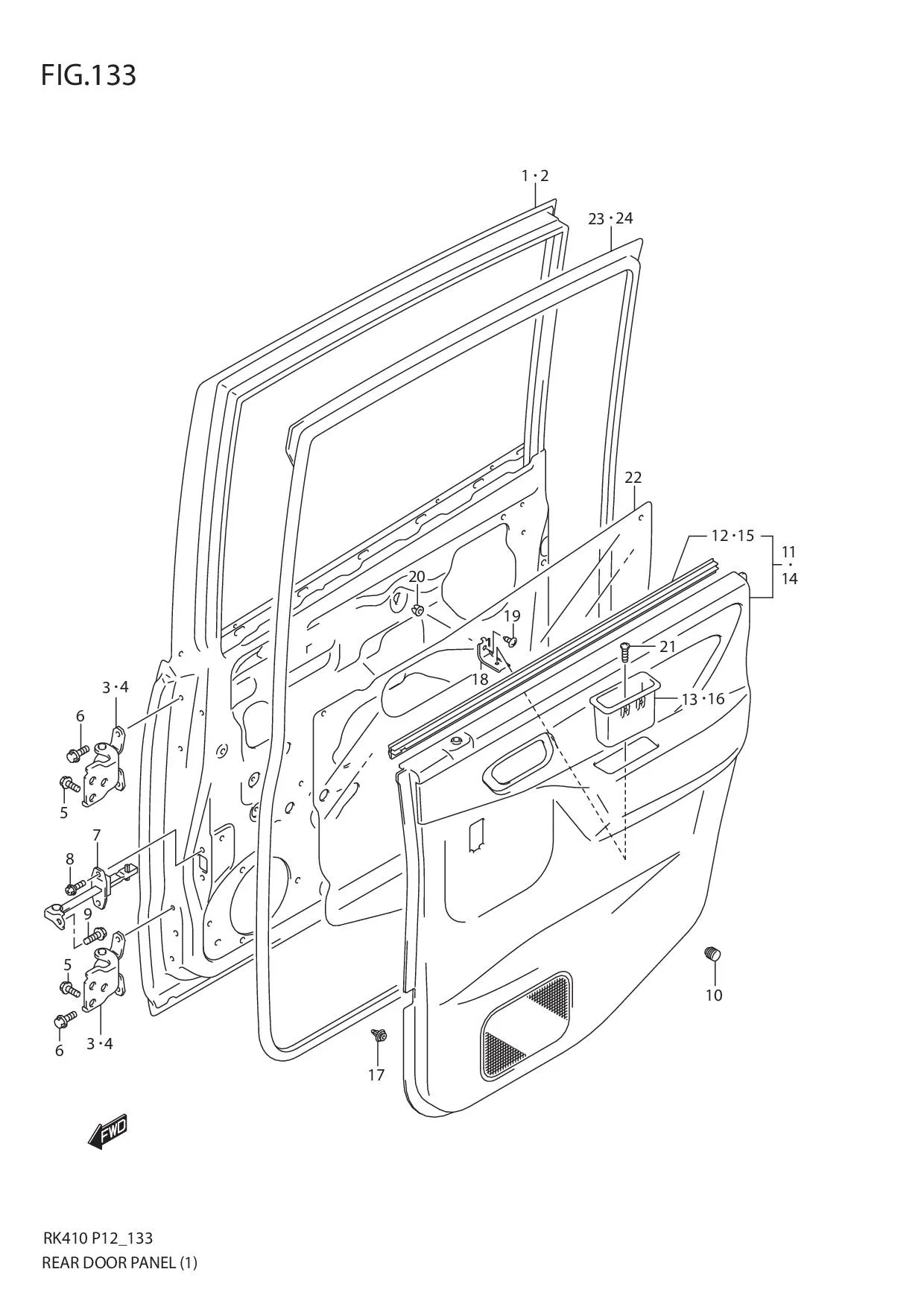

FIG.133 REAR DOOR PANEL (1)

FIG.133 REAR DOOR PANEL (1)
No No. Part Description Qty Price Per Pcs Remarks
1 68003M59K00-000 PANEL ASSY, REAR DOOR RH 1 Rp4.555.500
2 DISCONTINUE
SUB: 68004M59K00-000
PANEL ASSY, REAR DOOR LH 1 -
3 69440-65D00-000 HINGE, REAR DOOR NO.2 2 Rp416.500
4 69430-65D00-000 HINGE, REAR DOOR NO.1 2 Rp433.000
5 01551-0820A-000 BOLT 8 Rp17.500
6 09103M08557-000
SUB: 09103M08389-000
BOLT (8X24) 8 Rp8.500
7 81810M59K00-000 STOP, SIDE DOOR OPEN 2 Rp80.500
8 01550-0620B-000
SUB: 01550B0620AN000
SCREW (6X20) 4 Rp3.500
9 09112-08015-000 BOLT (8X25) 2 Rp32.000
10 82711M70F00-000
SUB: 82711M56B00-000
STOPPER, REAR DOOR 2 Rp8.500
11 83730M59K10-EER TRIM, REAR DOOR RH 1 Rp1.127.000
12 83739M59K00-000 •WEATHERSTRIP, RR DOOR INNER RH 1 Rp233.000
13 83799M73H00-P4Z HANDLE, SIDE DOOR TRIM 1 Rp19.000
14 DISCONTINUE
SUB: 83740M59K10-EER
TRIM, REAR DOOR LH 1 -
15 83749M59K00-000 •WEATHERSTRIP, RR DOOR INNER LH 1 Rp233.000
16 83799M73H00-P4Z HANDLE, SIDE DOOR TRIM 1 Rp19.000
17 83714M62B00-000
SUB: 09409M08320-000
CLIP 12 Rp14.500
18 83751M68K00-000 BRACKET, SIDE DOOR TRIM 2 Rp6.500
19 03241M0612A-000 SCREW 2 Rp6.500
20 71851M70F00-000
SUB: 09148M06007-000
NUT 2 Rp4.000
21 09132-05058-000 SCREW (5X12) 2 Rp14.000
22 DISCONTINUE
SUB: 83913M59K00-000
COVER, DOOR SEALING 2 -
23 84661M59K00-000 WEATHERSTRIP, RR DOOR OPNG RH 1 Rp262.500
24 84671M59K00-000 WEATHERSTRIP, RR DOOR OPNG LH 1 Rp262.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
