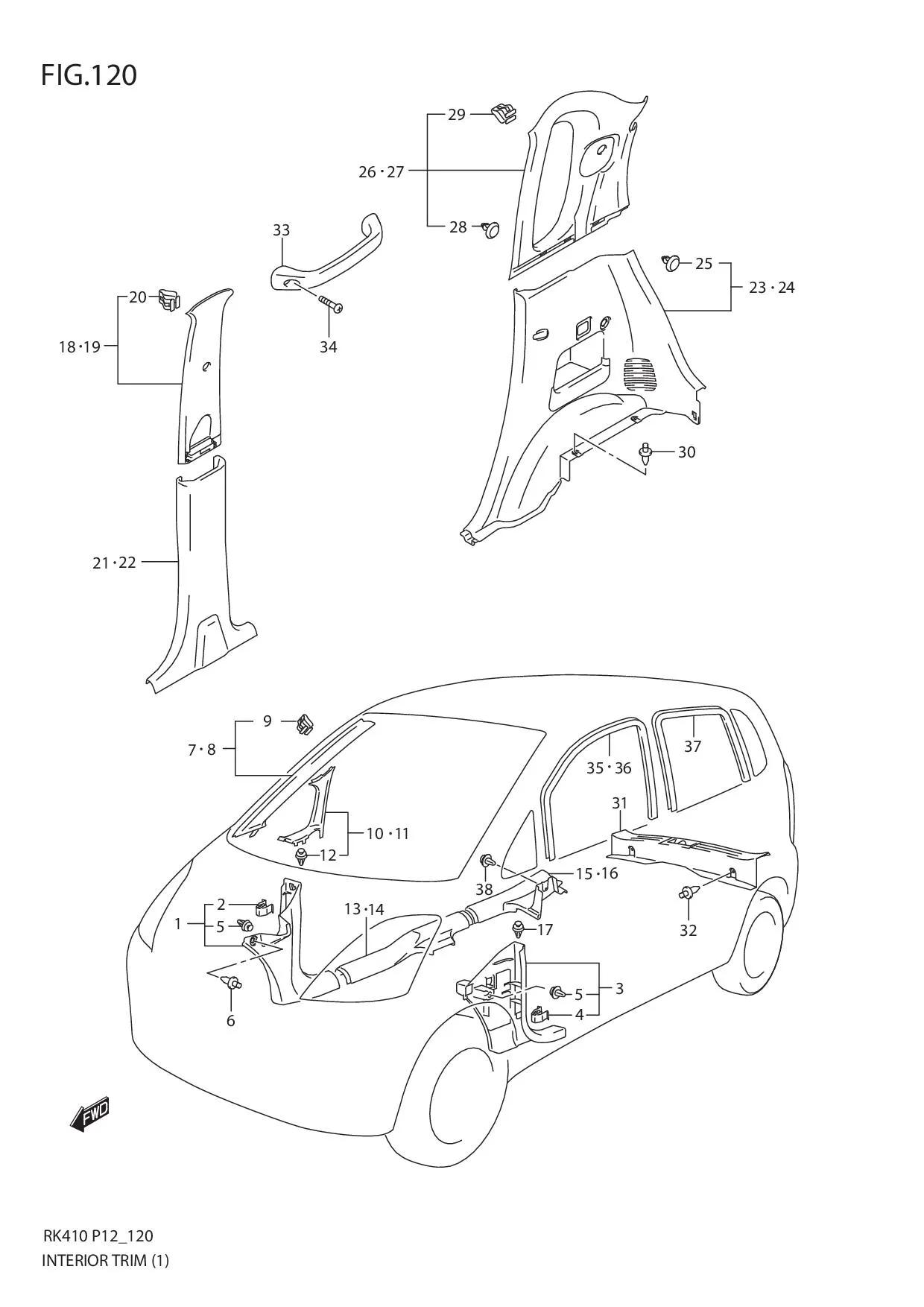

FIG.120 INTERIOR TRIM (1)

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 76120M59K00-P4Z	TRIM, DASH SIDE RH (GRAY)	1	-
2	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500
3	DISCONTINUE SUB: 76130M59K00-P4Z	TRIM, DASH SIDE LH (GRAY)	1	-
4	09409-10308-000 SUB: 09409B10308N000	•CLIP	2	Rp6.500
5	76142-76G00-000 SUB: 76142B76G00N000	•CLIP, INNER	1	Rp9.500
6	09409M07308-P4Z	CLIP, DASH SIDE TRIM (GRAY)	1	Rp7.500
7	76140M73H00-6GS	TRIM, FR PILLAR INNER RH (GRAY)	1	Rp112.500
8	76150M73H00-6GS	TRIM, FR PILLAR INNER LH (GRAY)	1	Rp112.500
9	09409-10308-000 SUB: 09409B10308N000	•CLIP	4	Rp6.500
10	DISCONTINUE SUB: 76143M73H00-6GS	TRIM, FR PLR EXTENSION RH (GRAY)	1	-
11	76153M73H00-6GS	TRIM, FR PLR EXTENSION LH (GRAY)	1	Rp70.000
12	76142-76G00-000 SUB: 76142B76G00N000	•CLIP, INNER	2	Rp9.500
13	DISCONTINUE SUB: 76161M73H00-P4Z	SCUFF, SIDE SILL FRONT RH (GRAY)	1	-
14	DISCONTINUE SUB: 76171M73H00-P4Z	SCUFF, SIDE SILL FRONT LH (GRAY)	1	-
15	76181M59K00-P4Z	SCUFF, SIDE SILL REAR RH (GRAY)	1	Rp46.500
16	76191M59K00-P4Z	SCUFF, SIDE SILL REAR LH (GRAY)	1	Rp46.500
17	09409M07308-P4Z	CLIP (GRAY)	2	Rp7.500
18	DISCONTINUE SUB: 76232M59K00-6GS	TRIM, CTR PILLAR INNER UPR RH (GRAY)	1	-
19	DISCONTINUE SUB: 76242M59K00-6GS	TRIM, CTR PILLAR INNER UPR LH (GRAY)	1	-
20	09409-10308-000 SUB: 09409B10308N000	•CLIP	2	Rp6.500
21	DISCONTINUE SUB: 76231M73H00-P4Z	TRIM, CTR PILLAR INNER LWR RH (GRAY)	1	-
22	DISCONTINUE SUB: 76241M73H00-P4Z	TRIM, CTR PILLAR INNER LWR LH (GRAY)	1	-
23	DISCONTINUE SUB: 76211M59K00-P4Z	TRIM, QTR INNER RH (GRAY)	1	-
24	DISCONTINUE SUB: 76221M59K00-P4Z	TRIM, QTR INNER LH (GRAY)	1	-
25	09409-10327-000 SUB: 09409B10312N000	•CLIP	8	Rp5.000
26	DISCONTINUE SUB: 76251M73H00-6GS	TRIM, QTR WINDOW RH (GRAY)	1	-
27	DISCONTINUE SUB: 76261M73H00-6GS	TRIM, QTR WINDOW LH (GRAY)	1	-
28	DISCONTINUE SUB: 76216-76F20-000	•CLIP, QTR TRIM	4	-
29	09409-10308-000 SUB: 09409B10308N000	•CLIP	4	Rp6.500
30	09409M07308-P4Z	CLIP, QTR TRIM (GRAY)	4	Rp7.500
31	76271M73H00-P4Z	TRIM, TAIL END MEMBER (GRAY)	1	Rp117.000
32	09409M07308-P4Z	CLIP, TAIL END TRIM (GRAY)	2	Rp7.500
33	76411M79F00-6GS	GRIP, ASSISTANT (GRAY)	3	Rp27.000
34	09139-06104-000	SCREW	6	Rp22.500
35	09409M06L02-6GS SUB: 09409M06326-6GS	CAP, ASSISTANT GRIP HOLE	1	Rp5.500
36	DISCONTINUE SUB: 76291M59K00-5PK	TRIM, FR DOOR OPENING (BLACK)	2	-
37	DISCONTINUE SUB: 76292M59K00-5PK	TRIM, RR DOOR OPENING (BLACK)	2	-
38	09409M07308-P4Z	CLIP, SIDE SILL RR TRIM	2	Rp7.500
