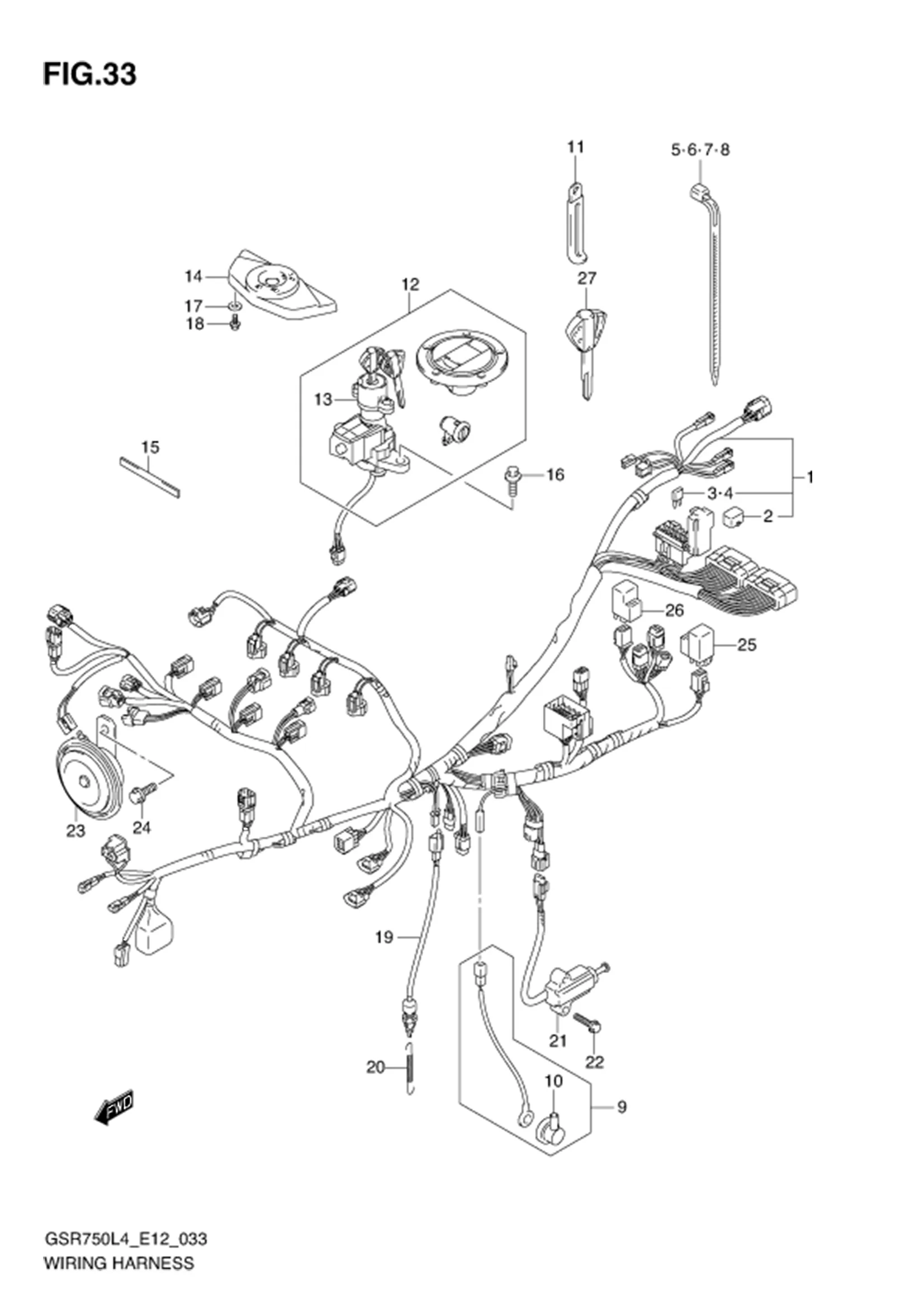

FIG.33 (1-D-11) WIRING HARNESS

FIG.33 (1-D-11) WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
37187-44G00-000 PROTECTOR, IGNITION SWITCH 1 Rp24.500
37146-41G00-000 KEY, BLANK 1 Rp476.500
38740-24X50-000 RELAY ASSY, FAN MOTOR 1 Rp251.000
38740-24X50-000 RELAY ASSY, FUEL PUMP 1 Rp251.000
38500-16G01-000 HORN ASSY 1 Rp448.500
37840-35F01-000
SUB: 37840-35F00-000		 SWITCH ASSY, SIDE STAND 1 Rp621.000
09443-06012-000 SPRING 1 Rp17.000
37740-45D00-000 SWITCH ASSY, STOP LAMP 1 Rp18.500
01550-0510A-000 BOLT 2 Rp3.500
09160-05037-000 WASHER (5.5X16X1.2) 2 Rp11.000
37152-17K00-000
SUB: 09119-08100-000		 BOLT (8X20) 2 Rp29.500
36610-08J50-000 HARNESS, WIRING 1 Rp10.305.500
37180-44G20-000 COVER, STEERING LOCK 1 Rp509.000
37100-44G20-000 ?LOCK ASSY, STEERING 1 Rp1.920.500
37101-44810-000 LOCK SET 1 Rp3.211.000
09404-06429-000 CLAMP (L:45) 2 Rp15.000
36618-43410-000 ?CAP, OIL PRESSURE SWITCH 1 Rp20.500
36851-44G00-000 WIRE, OIL PRESSURE SWITCH LEAD 1 Rp85.000
09407-19401-000 CLAMP (L:190) 2 Rp31.500
36654-06J30-000 ?CAP, TS 1 Rp79.000
3 09481-15501-000 •FUSE (15A) 5 Rp12.000
6-2 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 4 Rp13.000
17 01550-0812A-000 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
