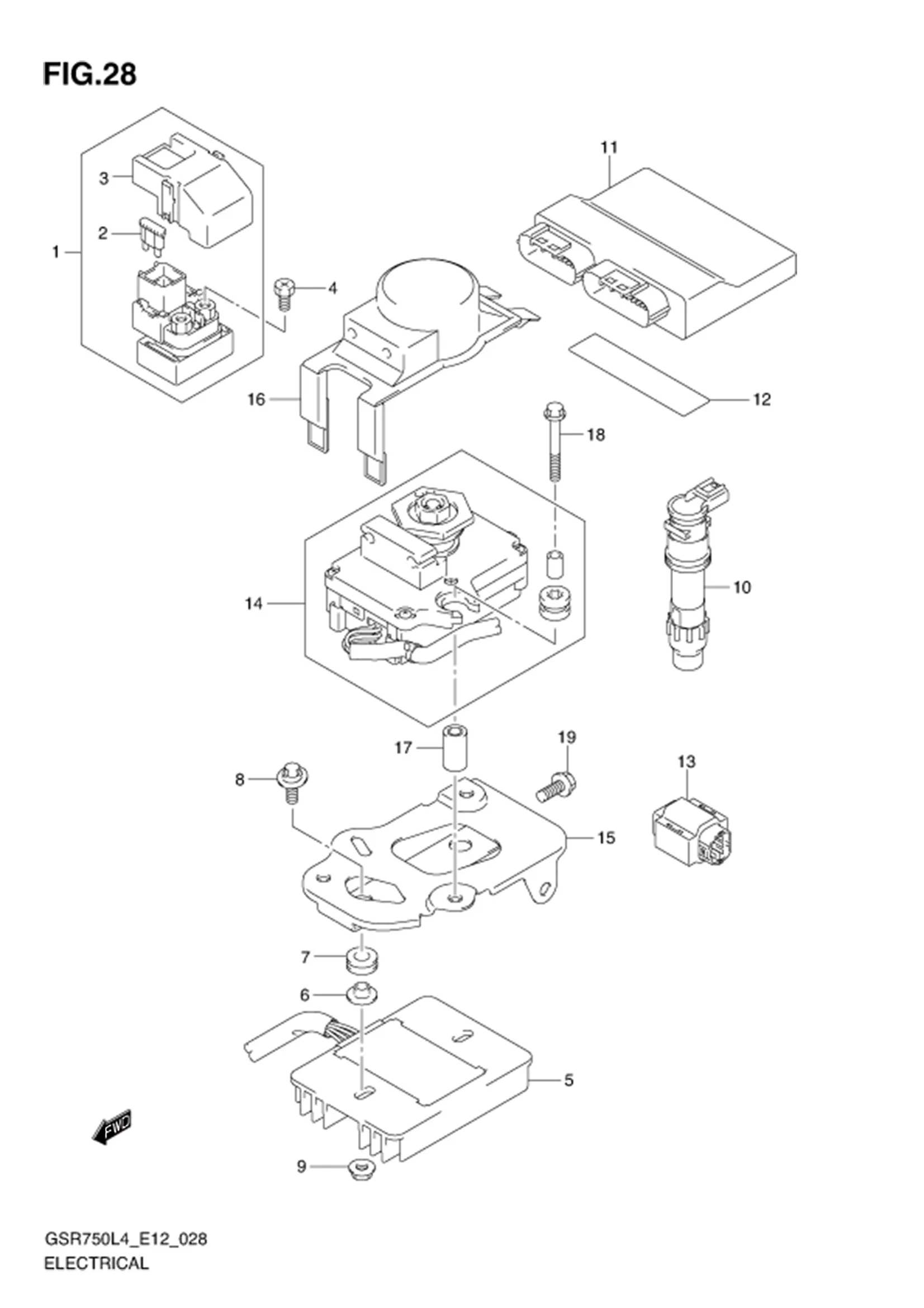

FIG.28 (1-D-6) ELECTRICAL

FIG.28 (1-D-6) ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
09481-30101-000 ?FUSE (30A) 2 Rp14.000
09180-06345-000 SPACER (6.2X14.5X26) 2 Rp56.000
33973-48G01-000 COVER, ACTUATOR 1 Rp96.500
33971-08J00-000 HOLDER, ACTUATOR 1 Rp222.000
33970-47H01-000 ACTUATOR, EXHAUST CONTROL 1 Rp4.507.000
DISCONTINUE
SUB: 33960-27G00-000		 SENSOR ASSY, FUEL CUT 1 -
DISCONTINUE
SUB: 33652-38A10-000		 CUSHION, FI CONTROL UNIT 3 -
32920-08J70-000 CONTROL UNIT, FI 1 Rp12.163.000
33410-47H00-000 COIL ASSY, IGNITION 4 Rp940.500
09116-06182-000 BOLT (6X20) 2 Rp17.500
09320-08051-000
SUB: 09320-08066-000		 CUSHION 2 Rp3.000
09180-06325-000 SPACER (6.2X8.4X6.9) 2 Rp5.500
32800-47H00-000 RECTIFIER ASSY 1 Rp2.140.000
09128-06013-000 SCREW (6X8) 2 Rp5.500
31861-47E00-000 ?COVER 1 Rp7.000
31800-06G02-000
SUB: 31800-06G00-000		 RELAY ASSY, STARTING MOTOR 1 Rp616.500
3 01550-0650A-000 BOLT 1 Rp5.500
4 08316-1006A-000 NUT 3 Rp2.000
36 02162-0616A-000 BOLT 3 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
