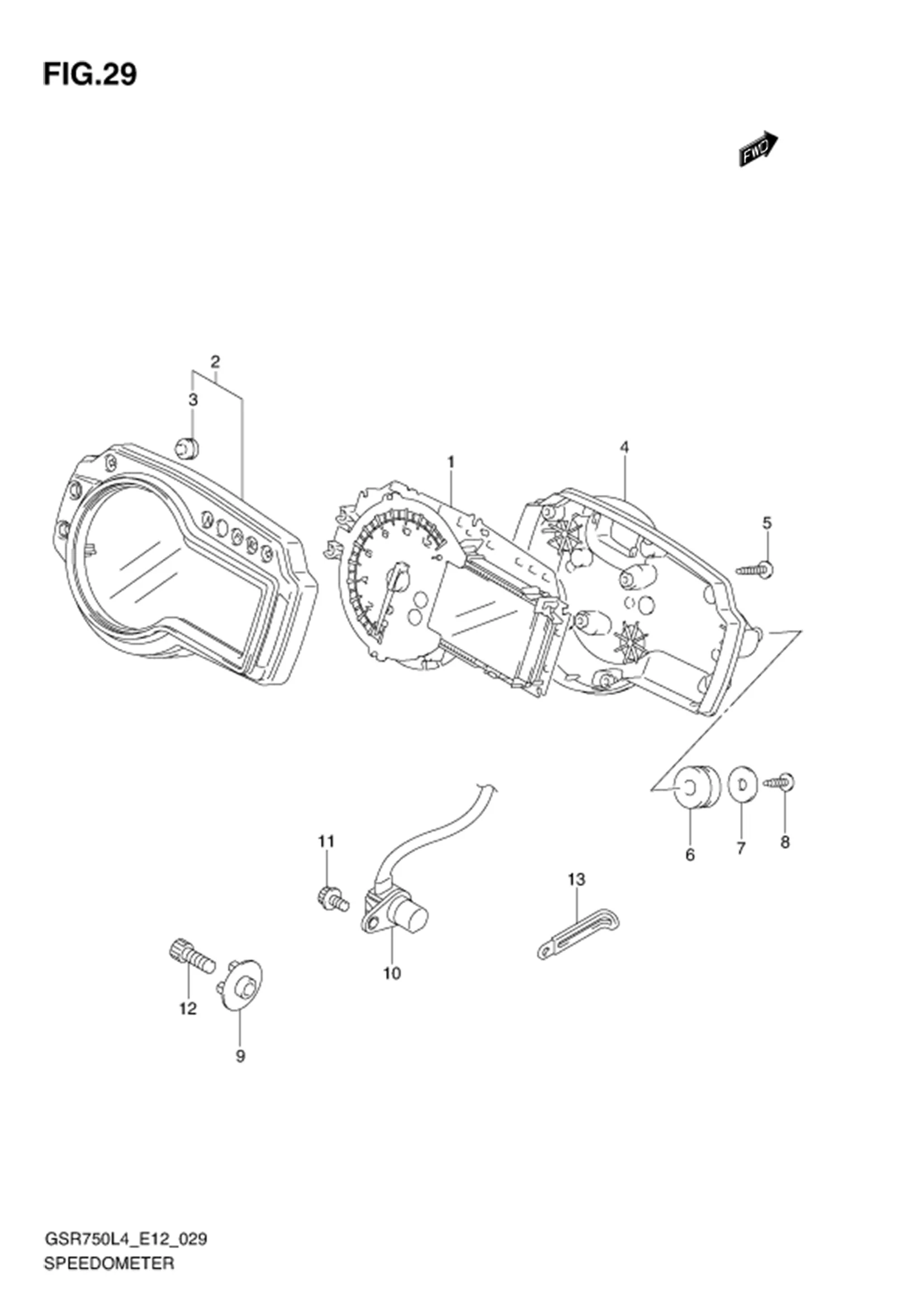

FIG.29 (1-D-7) SPEEDOMETER

FIG.29 (1-D-7) SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
34120-08J40-000 SPEEDOMETER 1 Rp7.674.000
34150-08J10-000 UPPER CASE ASSY 1 Rp1.352.500
34124-39G00-000 ?RUBBER, SWITCH 2 Rp58.000
34111-08J00-000 LOWER CASE ASSY 1 Rp625.500
09132-03008-000 SCREW (3X16) 8 Rp13.500
34189-08J00-000 CUSHION, SPEEDOMETER 3 Rp28.500
09160-04026-000 WASHER (4.5X16X1.2) 1 Rp10.500
03541-0416A-000 SCREW 1 Rp3.500
03541-0416A-000 SCREW 1 Rp3.500
34990-35F00-000 SENSOR, SPEED 1 Rp1.022.000
07120-0512A-000 BOLT 1 Rp17.500
07130-0825A-000
SUB: 07130-0825B-000		 BOLT 1 Rp4.000
09404-06429-000 CLAMP (L:45) 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
