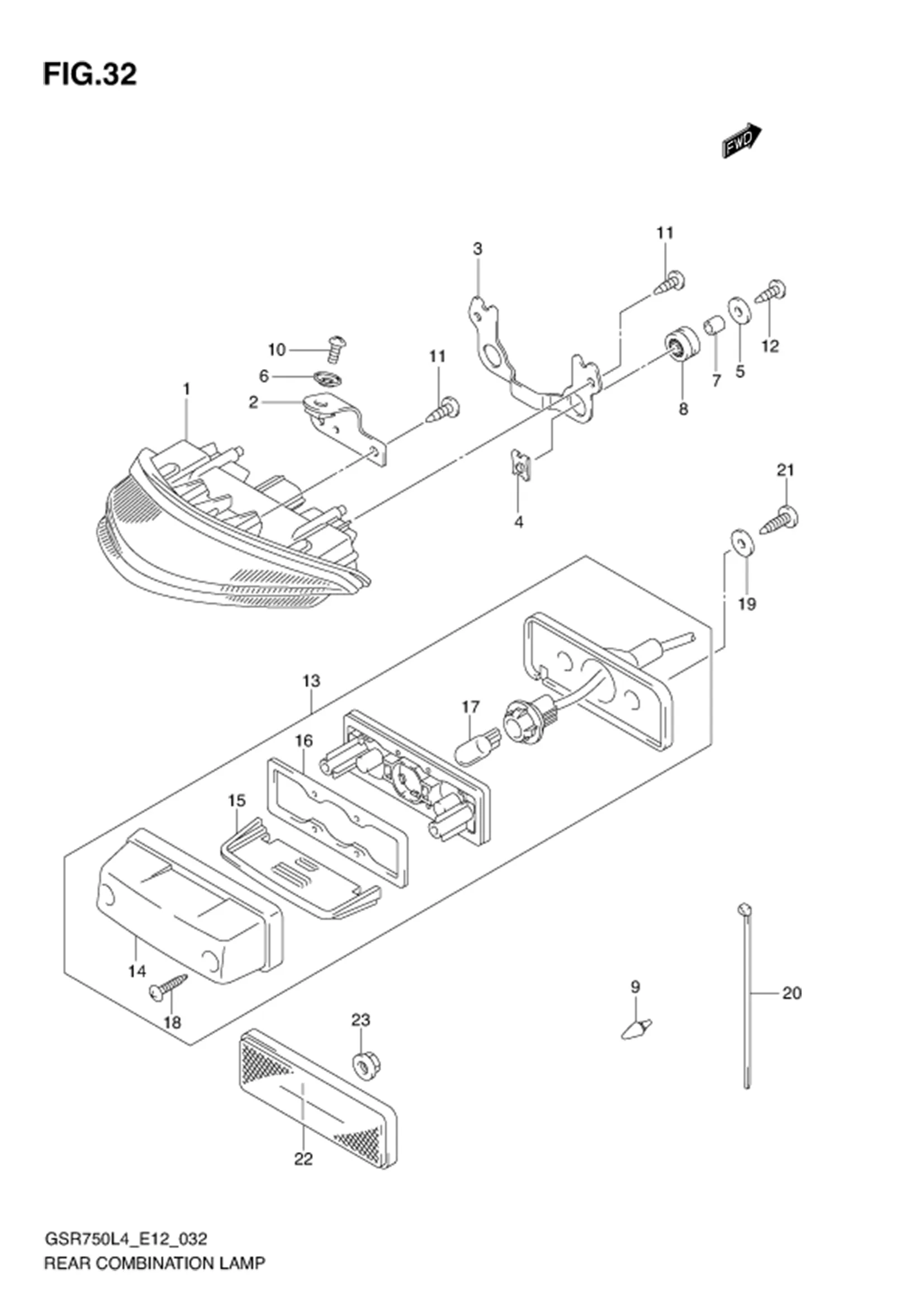

FIG.32 (1-D-10) REAR COMBINATION LAMP

FIG.32 (1-D-10) REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
35726-08J00-000 BRACKET, REAR COMBINATION LAMP 1 Rp57.500
03211-0416A-000 ?SCREW 2 Rp4.500
35913-16G00-000 ?GASKET 1 Rp49.500
35912-16G00-000 ?LENS 1 Rp62.000
35917-16G00-000 ?COVER 1 Rp67.000
35910-16G11-000
SUB: 35910-16G10-000		 LAMP ASSY, LICENSE 1 Rp466.000
03541-0520B-000 SCREW 2 Rp3.000
09321-06028-000 CUSHION 1 Rp16.500
09320-09009-000 CUSHION 2 Rp33.000
DISCONTINUE
SUB: 09180-06285-000		 SPACER (6.5X10X9) 2 -
09148-05047-000 NUT 2 Rp3.500
35726-08J10-000 BRACKET, REAR COMBINATION LAMP 1 Rp71.500
35710-21H00-000 LAMP ASSY, REAR COMBINATION 1 Rp1.732.000
3 08316-1005A-000 NUT 2 Rp2.500
9 02142-0612A-000 SCREW 2 Rp4.000
11 09471-12216-000 •BULB (12V,5W) 5 Rp15.000
14 35970-07F01-000 REFLECTOR ASSY, REAR 2 Rp124.000
25 03541-0516A-000 SCREW 1 Rp3.500
25 03541-0516A-000 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
