GSR 750

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.24 (1-D-2) STARTING MOTOR FIG.25 (1-D-3) GENERATOR FIG.26 (1-D-4) SIGNAL GENERATOR FIG.27 (1-D-5) BATTERY FIG.28 (1-D-6) ELECTRICAL FIG.29 (1-D-7) SPEEDOMETER FIG.30 (1-D-8) HEADLAMP FIG.31 (1-D-9) TURNSIGNAL LAMP FIG.32 (1-D-10) REAR COMBINATION LAMP FIG.33 (1-D-11) WIRING HARNESS FIG.34 (1-D-12) HANDLE SWITCH

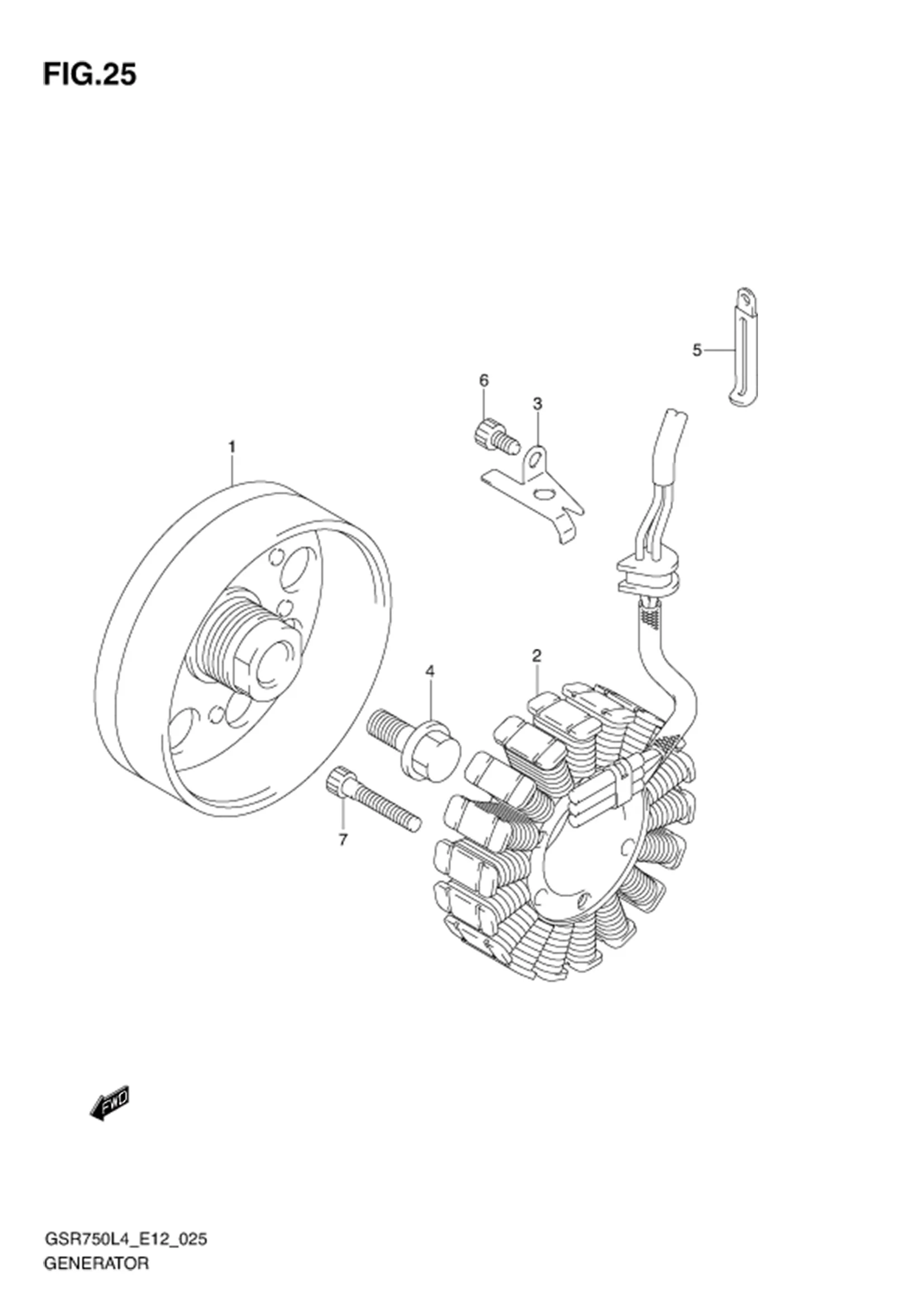

FIG.25 (1-D-3) GENERATOR

FIG.25 (1-D-3) GENERATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	31402-08J00-000	ROTOR ASSY	1	Rp4.115.000
	31401-29G20-000	STATOR ASSY	1	Rp2.632.500
	32371-33E00-000	CLAMP, GENERATOR LEAD WIRE	1	Rp31.500
	09103-12005-000	BOLT (12X23)	1	Rp41.000
	09404-06429-000	CLAMP (L:45)	1	Rp15.000
	07130-0612A-000	BOLT	1	Rp3.500
	07130-0635A-000	BOLT	3	Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
