GSR 750

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.24 (1-D-2) STARTING MOTOR FIG.25 (1-D-3) GENERATOR FIG.26 (1-D-4) SIGNAL GENERATOR FIG.27 (1-D-5) BATTERY FIG.28 (1-D-6) ELECTRICAL FIG.29 (1-D-7) SPEEDOMETER FIG.30 (1-D-8) HEADLAMP FIG.31 (1-D-9) TURNSIGNAL LAMP FIG.32 (1-D-10) REAR COMBINATION LAMP FIG.33 (1-D-11) WIRING HARNESS FIG.34 (1-D-12) HANDLE SWITCH

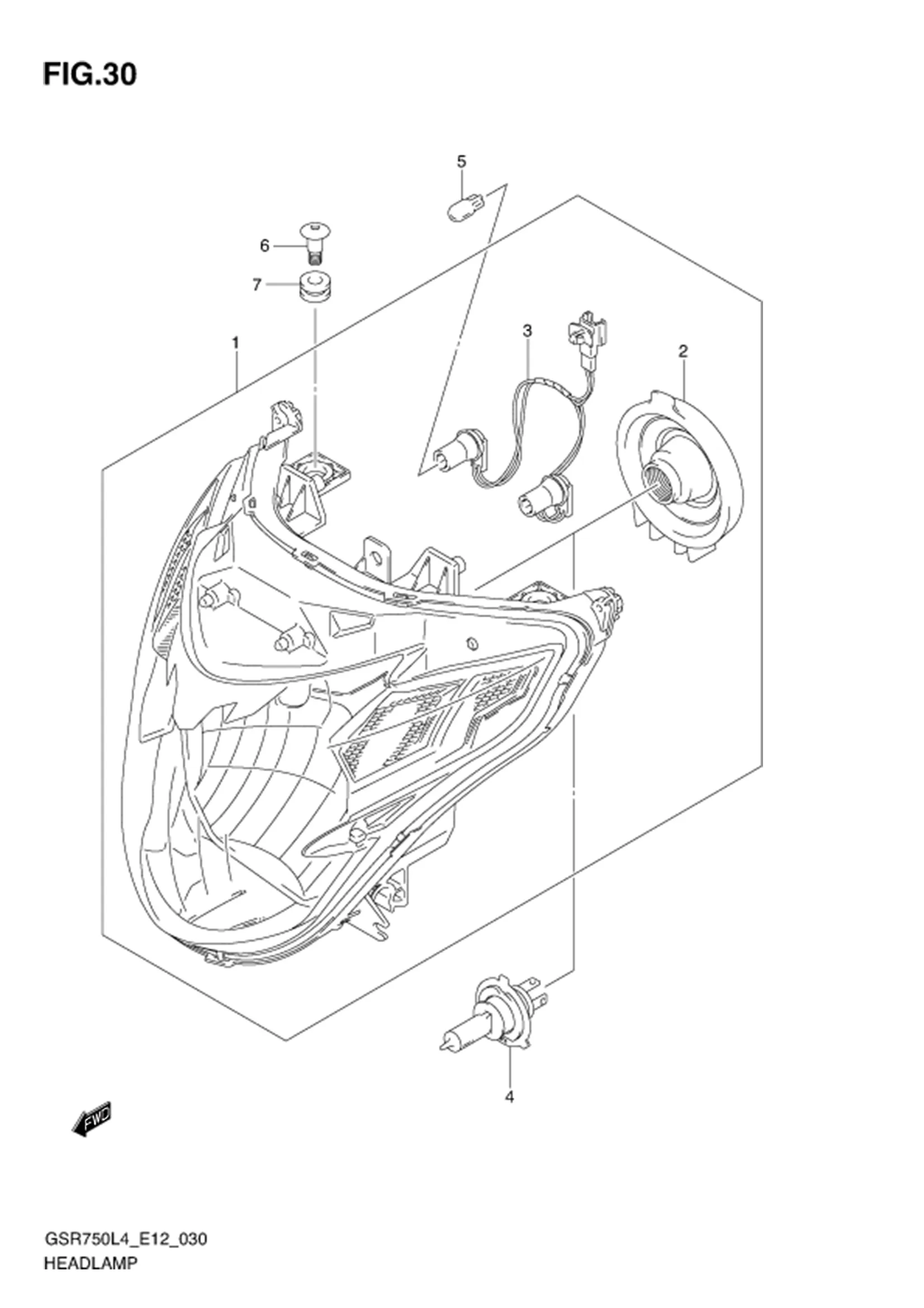

FIG.30 (1-D-8) HEADLAMP

FIG.30 (1-D-8) HEADLAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	35100-08J01-999 SUB: 35100-08J00-999	HEADLAMP ASSY	1	Rp4.792.500
	35125-77A00-000	?COVER, SOCKET	1	Rp106.000
	36118-08J00-000	?CORD ASSY	1	Rp396.500
	DISCONTINUE SUB: 09471-12185-000	BULB (12V,60/55W)	1	-
	09139-06126-000	SCREW (6X20)	2	Rp31.000
	DISCONTINUE SUB: 09320-09501-000	CUSHION	2	-
11	09471-12216-000	•BULB (12V,5W)	5	Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
