Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT 1ST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT:RHD)FRONT DIFFERENTIAL GEAR (6AT)

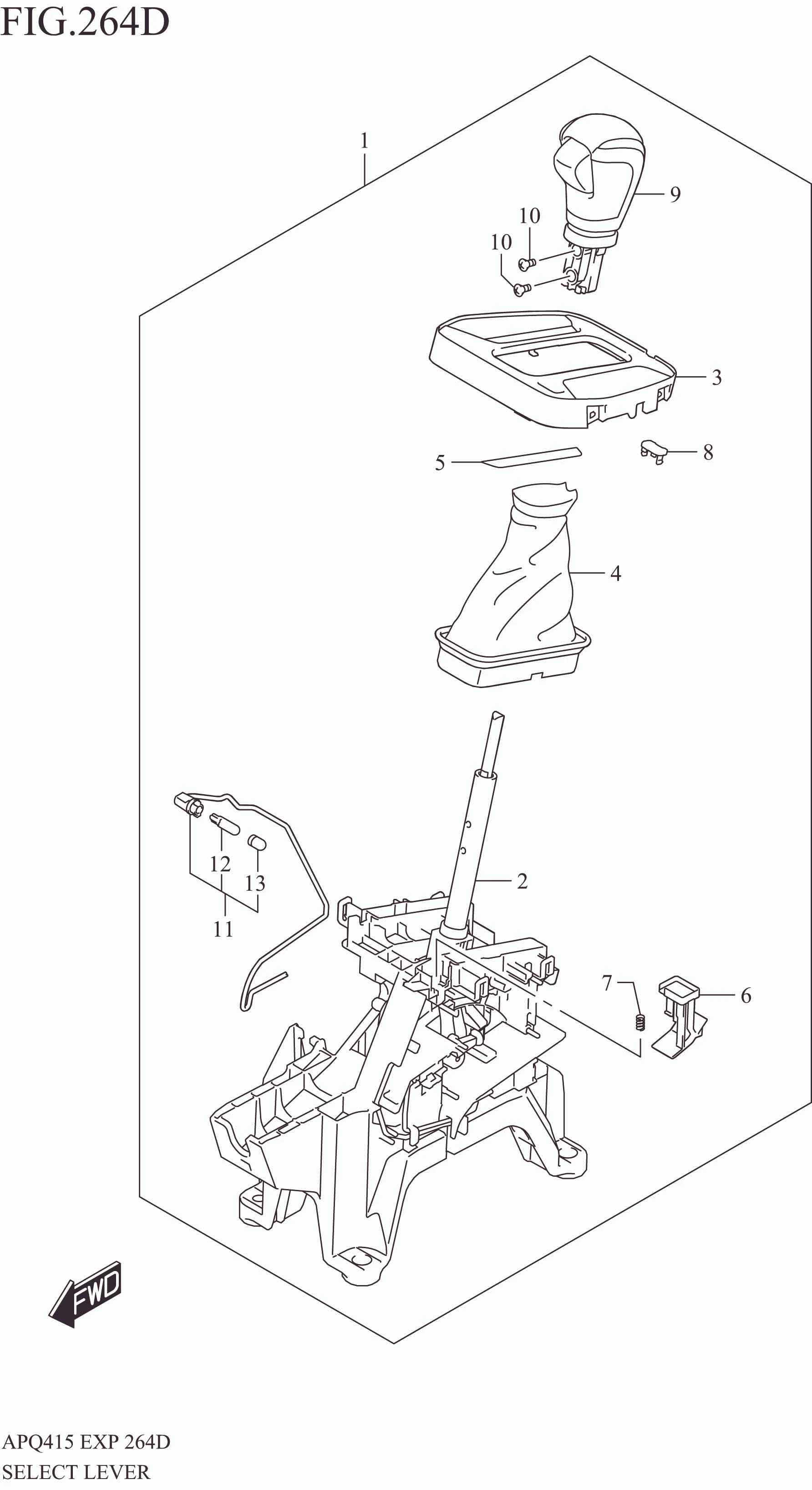

SELECT LEVER (6AT:RHD)

SELECT LEVER (6AT:RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 28100M76T50-HLF SELECTOR ASSY, MANUAL (BLACK/CHROME) 1 Rp2.533.500
2 28110M76T50-000 .LEVER, SELECT 1 Rp1.676.000
3 28151M76T50-5PK .INDICATOR, SELECT LEVER (BLACK) 1 Rp158.000
4 28152M76T10-5PK .BOOT, SELECT LEVER (BLACK) 1 Rp256.500
5 28153M76T50-000 .PLATE, SELECT POSITION 1 Rp84.500
6 28156M76T10-000 .BUTTON, SHIFT LOCK RELEASE 1 Rp31.000
7 28157M68P10-000 .SPRING, SHIFT LOCK RELEASE 1 Rp6.500
8 28158M76T10-5PK .CAP, SHIFT LOCK RELEASE (BLACK) 1 Rp28.500
9 28160M66T10-HLF .KNOB ASSY, SELECT LEVER (BLACK/CHROME) 1 Rp331.500
10 28161M68P10-000 .SCREW, SELECT LEVER KNOB 2 Rp13.500
11 28180M76T10-000 .LAMP ASSY, SELECT LEVER ILLUM 1 Rp158.500
12 28181M68P10-000 ..BULB, ILLUM LAMP 1 Rp31.000
13 28182M68P10-000 ..FILTER, ILLUM LAMP 1 Rp41.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
