Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT 1ST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT:RHD)FRONT DIFFERENTIAL GEAR (6AT)

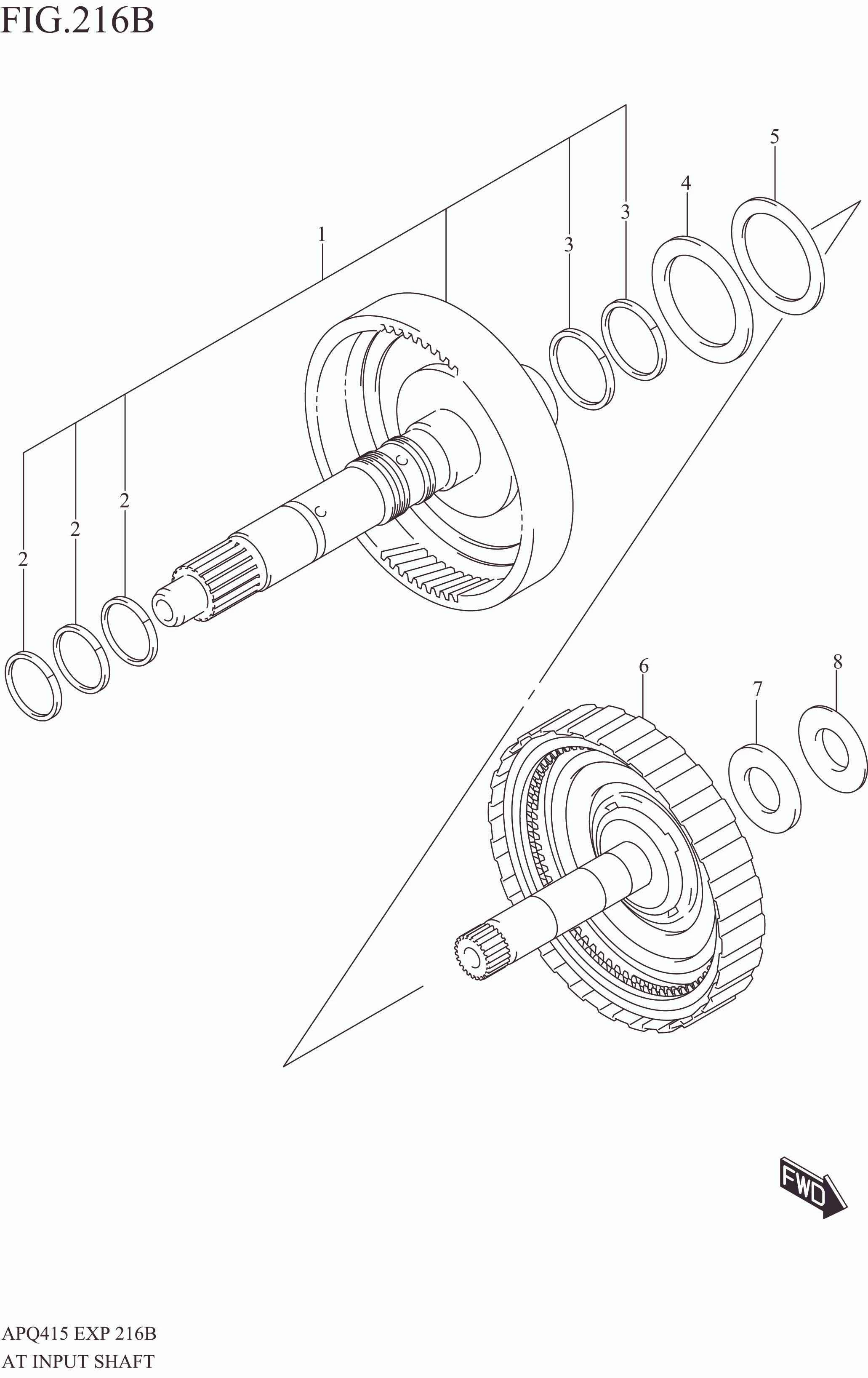

AT INPUT SHAFT (6AT)

AT INPUT SHAFT (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24100-78MT0-000 SHAFT SET, INPUT 1 Rp4.081.000
2 24191-78M10-000 .RING, INPUT SHAFT OIL SEAL NO.1 3 Rp80.000
3 24192-78M10-000 .RING, INPUT SHAFT OIL SEAL NO.2 2 Rp80.000
4 24122-78M10-000 BEARING, INPUT SHAFT THR 1 Rp372.000
5 24123-78M10-000 RACE, INPUT SHAFT THR BEARING 1 Rp55.500
6 26700-78M10-000 CLUTCH ASSY, DIRECT 1 Rp6.563.500
7 26711-78M10-000 BEARING, DIRECT CLUTCH ASSY THR 1 Rp234.500
8 26722-78M10-000 RACE, DIR CLUTCH ASSY THR BRG 1 Rp111.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
