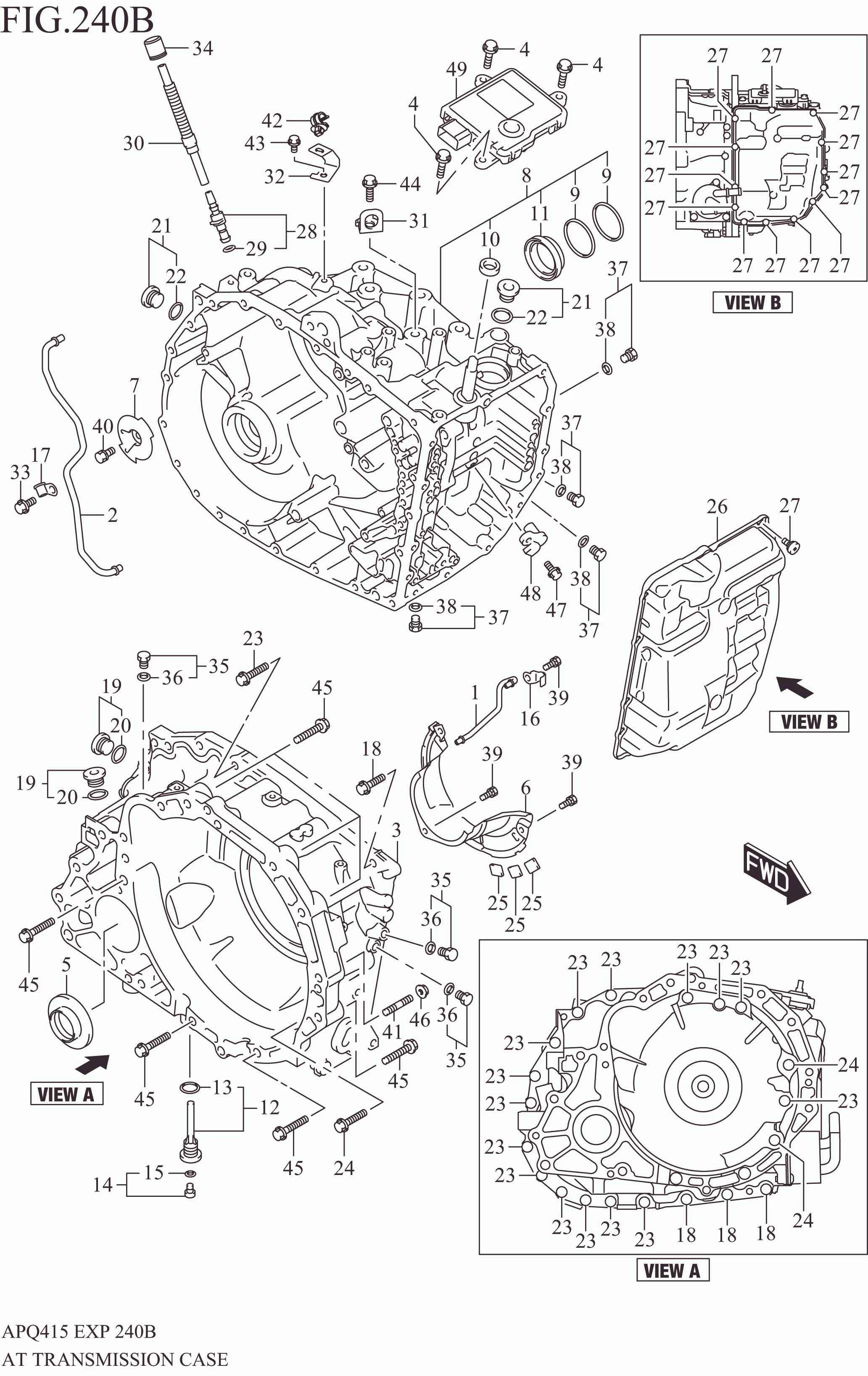

AT TRANSMISSION CASE (6AT)

No	No. Part	Description	Qty	Price Per Pcs
1	24700-78M10-000	TUBE, DIFF GEAR LUB APPLY	1	Rp321.500
2	24701-78M10-000	TUBE, TRANSAXLE LUB APPLY	1	Rp208.000
3	24710-68M10-000	HOUSING, TORQUE CONVERTER	1	Rp14.930.000
4	22893-79C10-000	BOLT	3	Rp22.500
5	27611-78M10-000	OIL SEAL, DIFF SIDE RH	1	Rp207.000
6	24711-78M10-000	PLATE, OIL RESERVOIR LOCK	1	Rp267.000
7	24712-78M10-000	PLATE, TRANSMISSION CASE	1	Rp106.500
8	24720-78MT0-000	CASE SET, TRANSAXLE	1	Rp21.982.000
9	24715-78M10-000	.RING, CLUTCH DRUM OIL SEAL	2	Rp244.000
10	25981-60G10-000	.OIL SEAL	1	Rp73.000
11	27612-78M10-000	.OIL SEAL, DIFF SIDE LH	1	Rp174.500
12	24721-78MT0-000	PLUG SET, DRAIN NO.1	1	Rp203.000
13	29726-57B00-000	.O RING, SOL WIRE HARN	1	Rp107.000
14	24722-78MT0-000	PLUG SET, DRAIN NO.2	1	Rp113.500
15	29738-57B00-000	.O RING	1	Rp47.500
16	24725-59J10-000	CLAMP, DIFF BRG LUB PIPE	1	Rp40.000
17	24725-59J10-000	CLAMP, DIFF BRG LUB PIPE	1	Rp40.000
18	24725-79C10-000	BOLT, T/C HOUSING NO.1	4	Rp26.500
19	24726-59JT0-000	PLUG SET, NO.1	2	Rp113.500
20	DISCONTINUE SUB: 24842-60G10-000	.O RING	2	-
21	24726-59JT0-000	PLUG SET, NO.1	2	Rp113.500
22	DISCONTINUE SUB: 24842-60G10-000	.O RING	2	-
23	24729-60G10-000	BOLT	16	Rp61.000
24	24729-60G10-000	BOLT	2	Rp61.000
25	DISCONTINUE SUB: 24745-59J00-000	MAGNET, OIL CLEANER	3	-
26	24761-78M10-000	PAN, TRANSAXLE SIDE OIL	1	Rp1.065.000
27	24752-59J10-000	BOLT, SIDE COVER	13	Rp63.000
28	24776-78MT0-000	PLUG SET, BREATHER	1	Rp85.000
29	24774-78M10-000	.O RING, BREATHER PLUG	1	Rp61.000
30	24775-78M10-000	HOSE, BREATHER	1	Rp247.500
31	24855M72R30-000	HOOK, TRANSMISSION	1	Rp12.000
32	24726M72R30-000	BRACKET, BREATHER HOSE	1	Rp12.000
33	DISCONTINUE SUB: 25991-60G10-000	BOLT	1	-
34	27991-77M10-000	PLUG, BREATHER HOSE	1	Rp47.500
35	29849-57BT0-000	PLUG SET, NO.2	3	Rp137.000
36	29738-57B00-000	.O RING	3	Rp47.500
37	29849-57BT0-000	PLUG SET, NO.2	4	Rp137.000
38	29738-57B00-000	.O RING	4	Rp47.500
39	29970-57B00-000	BOLT	3	Rp83.000
40	29970-57B00-000	BOLT	1	Rp83.000
41	01421-1045A-000	STUD BOLT	1	Rp29.500
42	09403-11320-000	CLAMP	1	Rp21.500
43	01550-0612C-000	BOLT	1	Rp19.500
44	01550-1020C-000	BOLT	1	Rp38.000
45	09103M10463-000	BOLT (10X50.5)	7	Rp10.500
46	08316-1010A-000	NUT	1	Rp3.500
47	DISCONTINUE SUB: 25991-60G10-000	BOLT	1	-
48	26131-78M10-000	SENSOR, SPEED INPUT	1	Rp1.448.000
49	3E130-76T10-000	CONTROLLER ASSY, AT	1	Rp8.714.000
