Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT 1ST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT:RHD)FRONT DIFFERENTIAL GEAR (6AT)

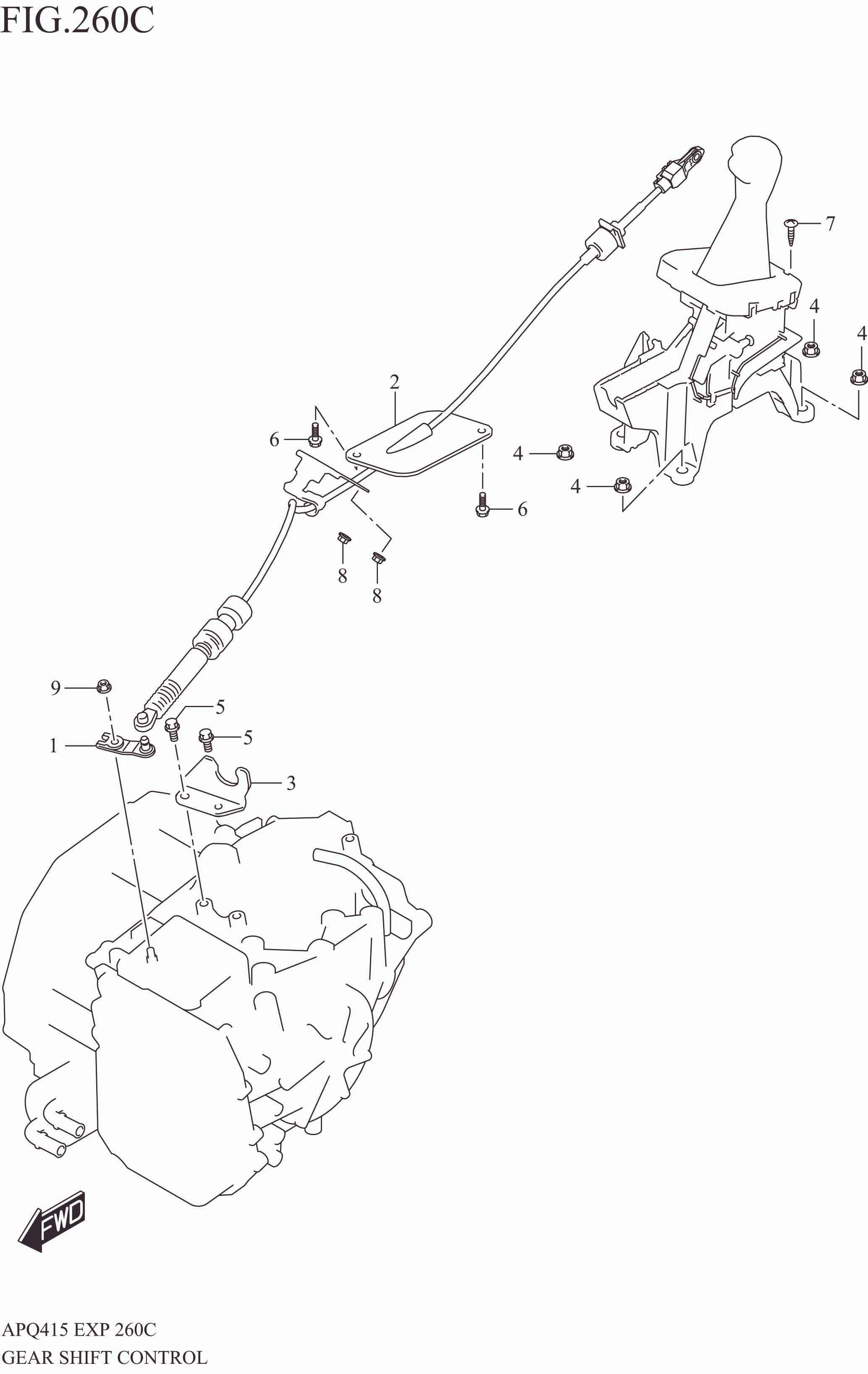

GEAR SHIFT CONTROL (6AT)

GEAR SHIFT CONTROL (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 25970M50U10-000 LEVER, MANUAL SELECT 1 Rp37.500
2 28210M76T10-000 CABLE ASSY, SELECT 1 Rp785.500
3 28221M50U10-000 BRACKET, SELECT CABLE 1 Rp45.500
4 09159-08127-000 NUT (M8) 4 Rp11.000
5 DISCONTINUE
SUB: 01550-0816C-000		 BOLT 2 -
6 02162-0620A-000 SCREW 2 Rp5.500
7 03141-0516B-000 SCREW 1 Rp3.500
8 08316-1006A-000 NUT 2 Rp2.000
9 08361-3508A-000 NUT 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
