Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT 1ST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT:RHD)FRONT DIFFERENTIAL GEAR (6AT)

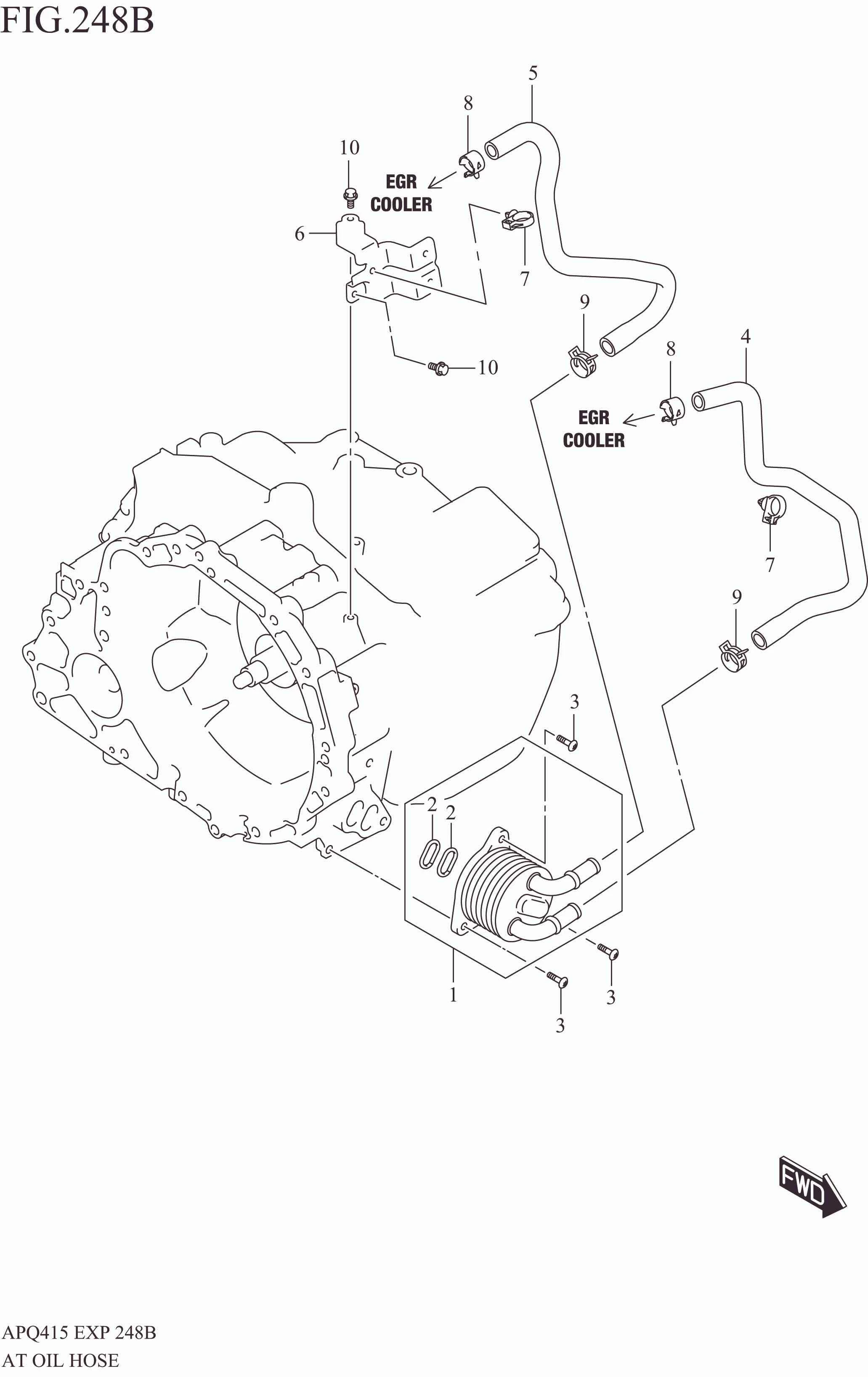

AT OIL HOSE (6AT)

AT OIL HOSE (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24777-72RT0-000 COOLER SET, OIL 1 Rp2.964.500
2 24779-78M10-000 .O RING, OIL COOLER ASSY 2 Rp81.000
3 24778-78M10-000 SCREW, OIL COOLER ASSY 3 Rp37.000
4 22931M72R30-000 HOSE, OIL COOLER NO.1 1 Rp55.500
5 22932M72R30-000 HOSE, OIL COOLER NO.2 1 Rp51.500
6 22971M72R30-000 BRACKET, OIL COOLER HOSE 1 Rp113.000
7 22981-72R30-000 CLAMP, OIL COOLER HOSE 2 Rp26.500
8 09401-18418-000 CLIP (ID:17.8) 2 Rp26.000
9 09401-20407-000 CLIP 2 Rp27.000
10 01550M0612A-000 BOLT 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
