Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT 1ST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT:RHD)FRONT DIFFERENTIAL GEAR (6AT)

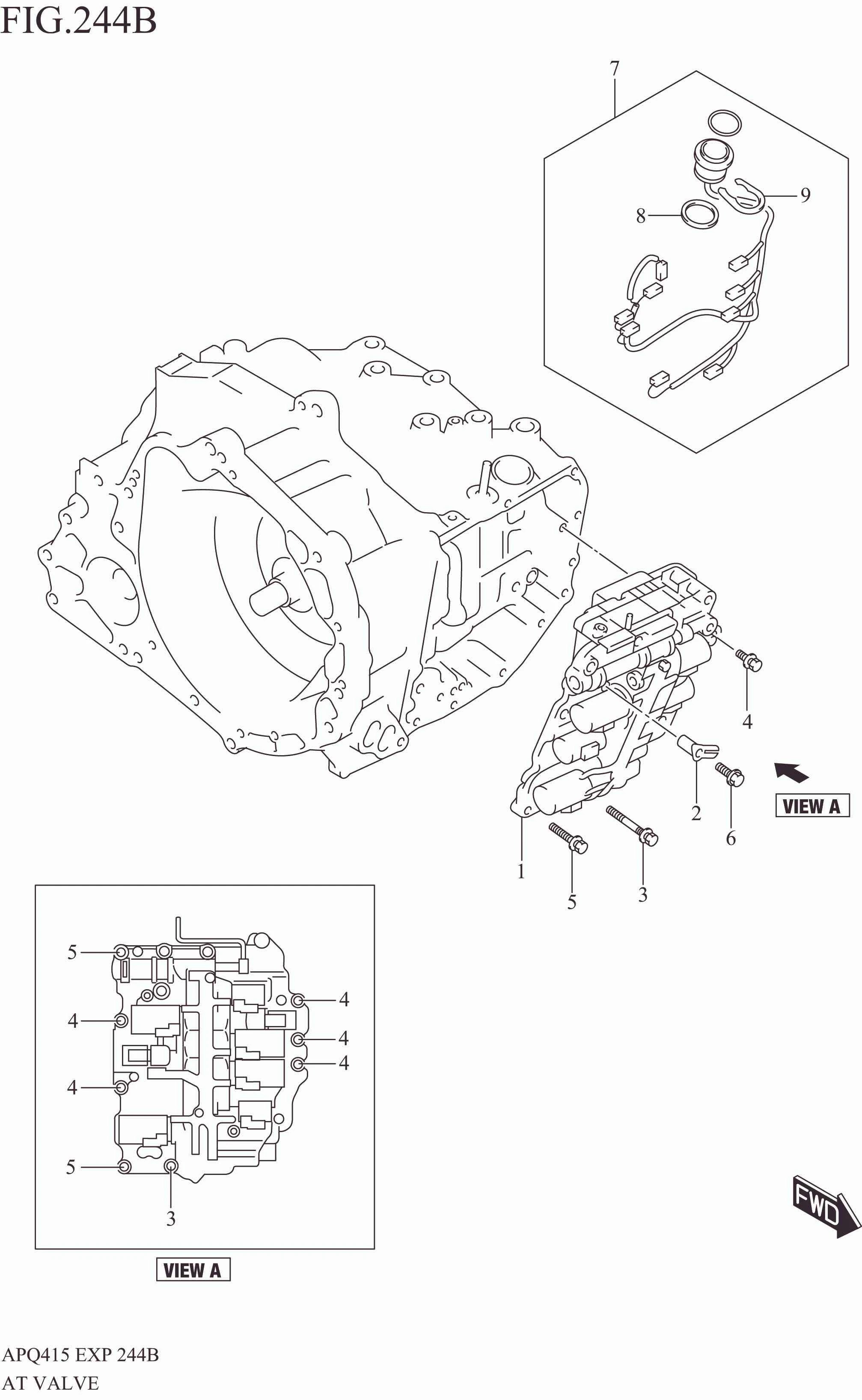

AT VALVE (6AT)

AT VALVE (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 26500-54P10-000 BODY ASSY, T/M VALVE 1 Rp21.690.000
2 26512-78M10-000 CLAMP, TEMPERATURE SENSOR 1 Rp60.000
3 26586-73KR0-000 BOLT, T/M VALVE BODY ASSY NO.1 1 Rp83.000
4 26587-78M10-000 BOLT, T/M VALVE BODY ASSY NO.2 5 Rp57.500
5 26588-78M10-000 BOLT, T/M VALVE BODY ASSY NO.3 2 Rp57.500
6 29982-57B00-000 BOLT 1 Rp73.500
7 24772-54PT0-000 HARNESS SET, TRANSMISSION WIRE 1 Rp2.103.500
8 24771-78M10-000 .GASKET, TRANSAXLE CASE 1 Rp133.000
9 24772-78M10-000 .PLATE, T/M WIRE HARN LOCK 1 Rp83.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
