Preview Engine Transmission Electrical Suspension Body

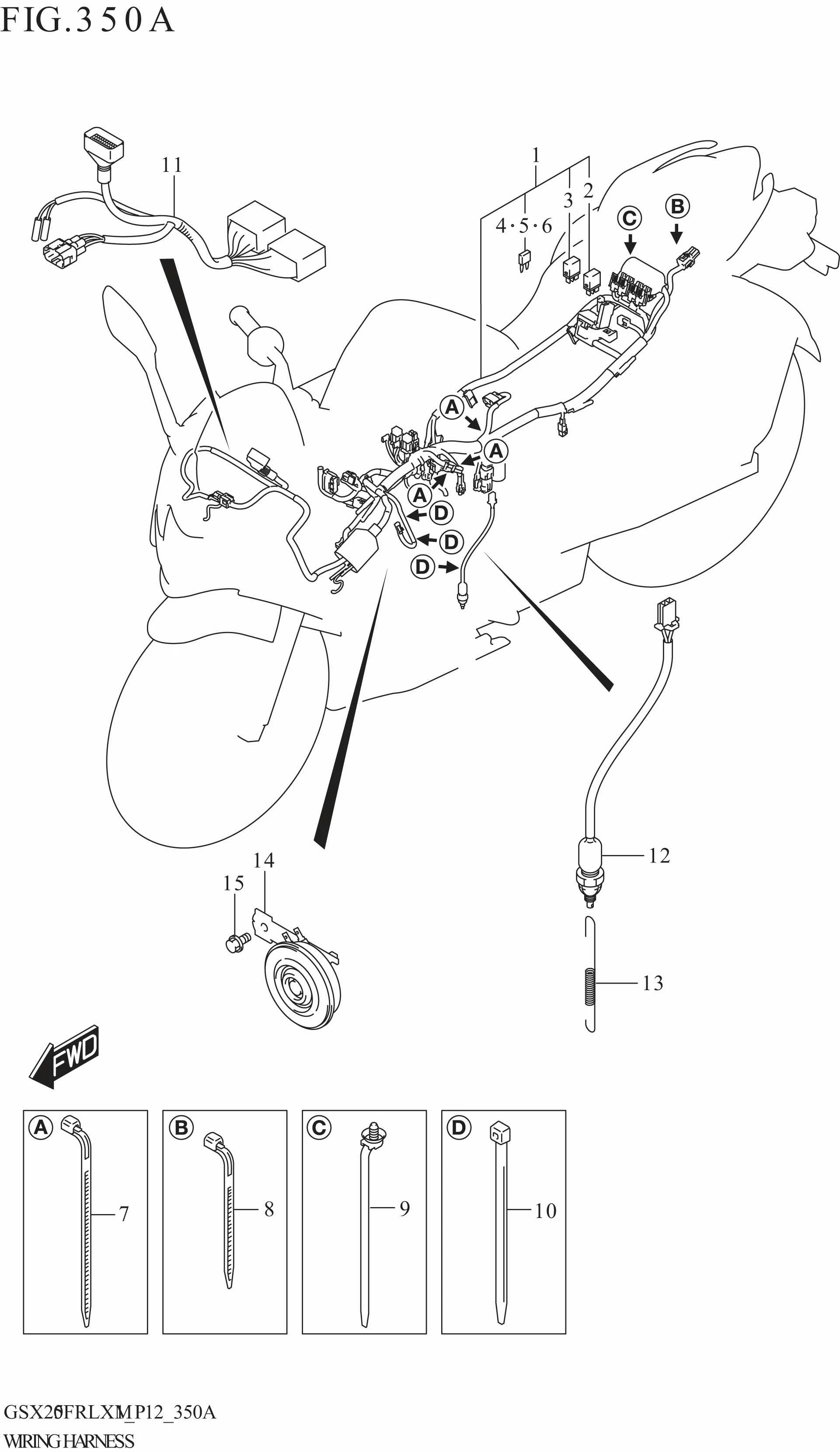

No	No. Part	Description	Qty	Price Per Pcs
1	36610-41K10-000	HARNESS,WIRING NO.1	1	Rp2.967.000
2	38860-76F01-000	.RELAY ASSY	1	Rp47.000
3	38860-76F01-000	.RELAY ASSY	1	Rp47.000
4	09481-10501-000	.FUSE (10A)	3	Rp12.000
5	09481-15501-000	.FUSE (15A)	2	Rp12.000
6	09481-20501-000	.FUSE (20A)	1	Rp14.500
7	36990-70F20-000	CLAMP,COMB SW WIRE (L:165)	3	Rp5.500
8	09407-11L01-000	CLAMP (L:95)	1	Rp5.000
9	09407-15L01-000	CLAMP (L:170)	1	Rp14.500
10	09407-14407-000	CLAMP (L:145)	3	Rp18.500
11	36620-41K00-000	HARNESS,WIRING NO.2	1	Rp305.500
12	37740-34J20-000	SWITCH ASSY,STOP LAMP	1	Rp54.000
13	43232-34J00-000	SPRING,STOP LAMP SWITCH	1	Rp4.500
14	38500-41K01-000	HORN ASSY	1	Rp344.500
15	01550-0610B-000	BOLT	1	Rp3.000
