Preview Engine Transmission Electrical Suspension Body

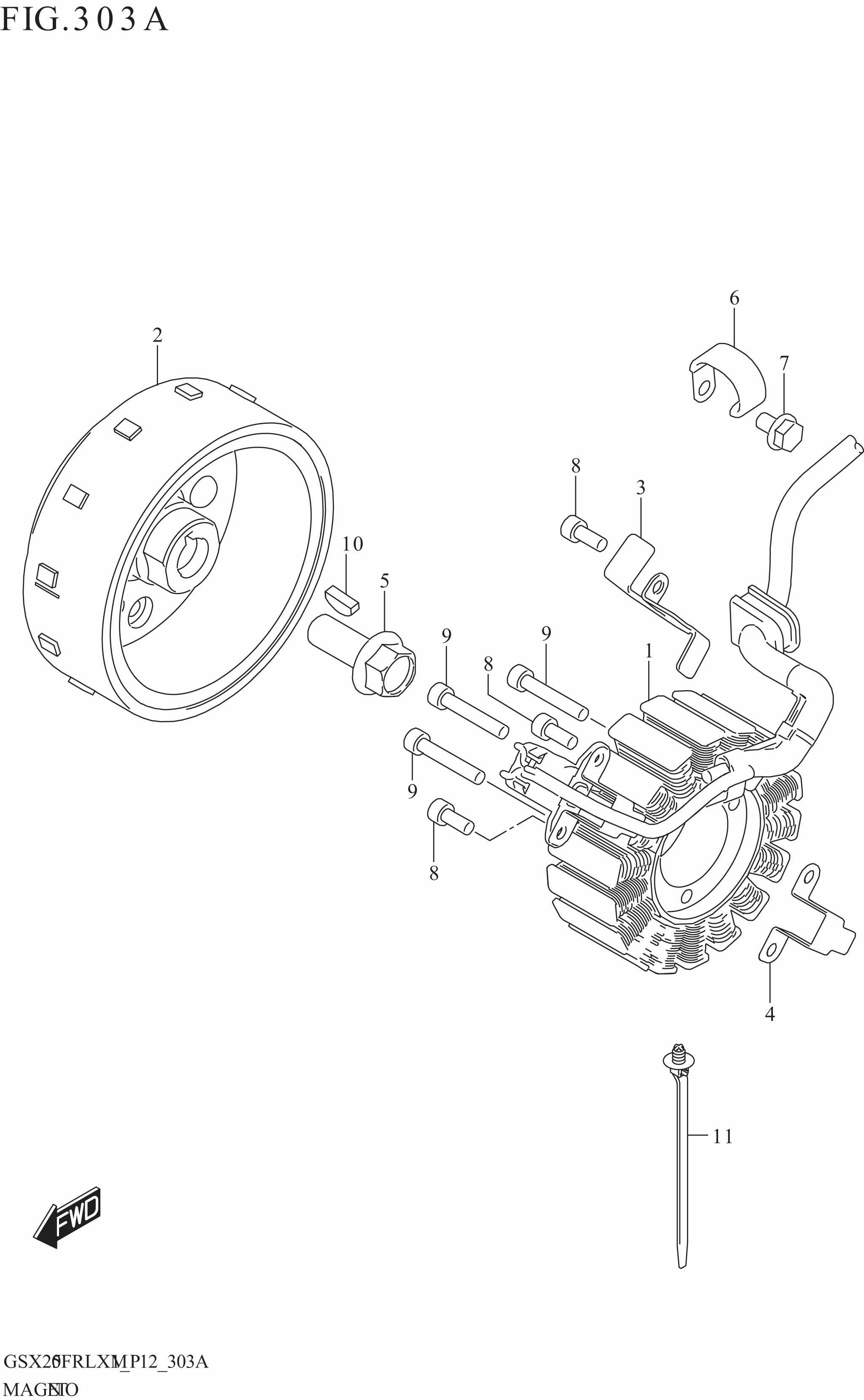

No	No. Part	Description	Qty	Price Per Pcs
1	32101-41K00-000	STATOR ASSY,MAGNETO	1	Rp944.000
2	32102-41K00-000	ROTOR ASSY,MAGNETO	1	Rp817.000
3	32371-41K00-000	CLAMP,MAGNETO LEAD	1	Rp5.500
4	32371-41K10-000	CLAMP,SENSOR LEAD	1	Rp5.500
5	32491-41K00-000	BOLT,MAGNETO ROTOR	1	Rp30.500
6	09404-06429-000	CLAMP (L:45)	1	Rp15.000
7	01550-0610B-000 SUB: 01550-0610A-000	BOLT	3	Rp3.000
8	07130-0512A-000 SUB: 07130-0512B-000	BOLT	3	Rp4.000
9	07130-0530B-000	BOLT	1	Rp5.500
10-1	09420-04008-000 SUB: 08341-31049-000	KEY	1	Rp23.000
11	09420-04008-000	KEY (B:4,D:16,H6.5),1,17000,10-2 09407-15L01-000,CLAMP (L:170)"	1	Rp23.000
