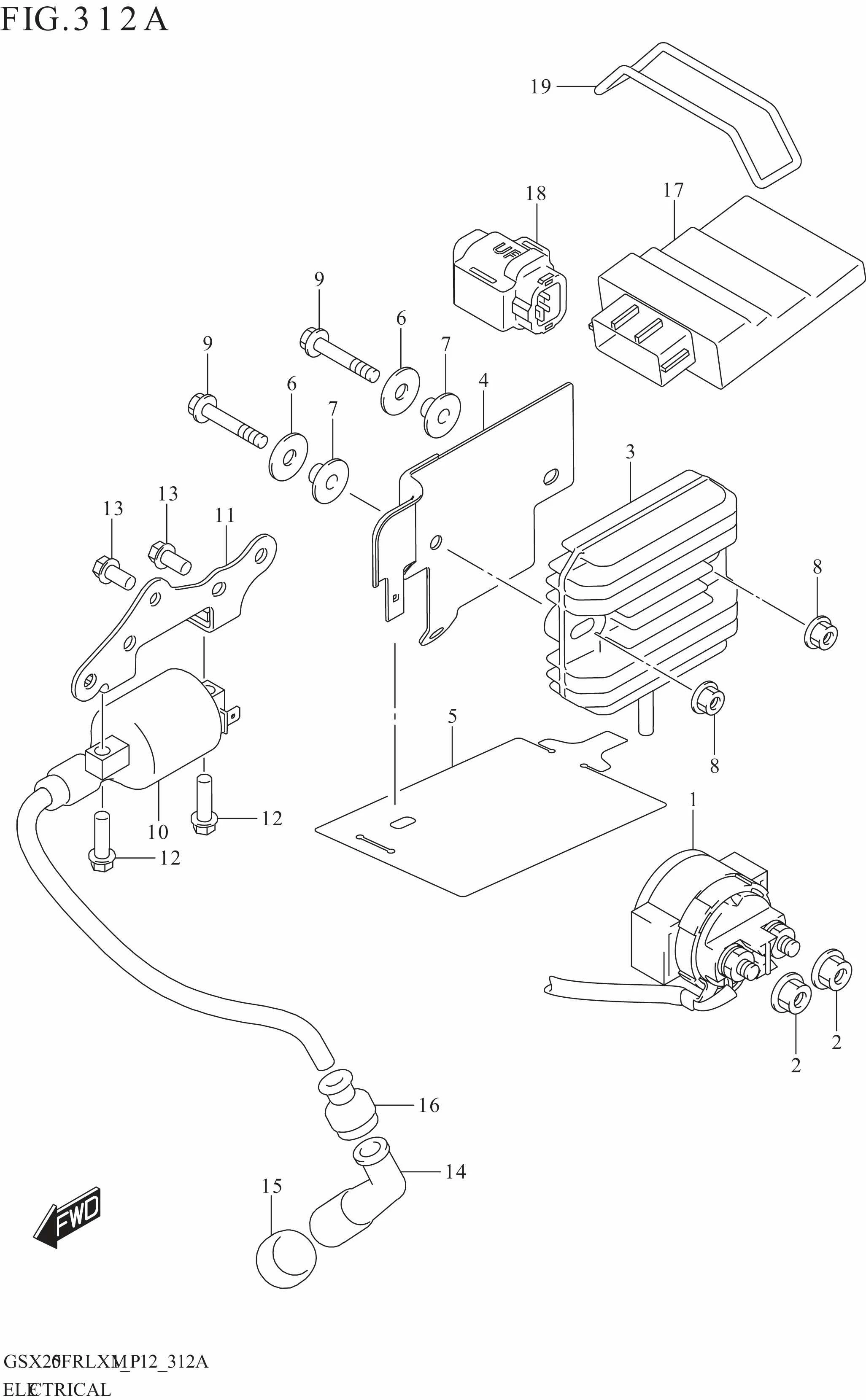

Electrical

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs
1	31800-34J02-000	RELAY ASSY,STARTING MOTOR	1	Rp154.500
2	08361-3506A-000	NUT	2	Rp4.000
3	32800-20K20-000	RECTIFIER ASSY	1	Rp1.139.000
4	32832-41K00-000	PLATE,RECTIFIER	1	Rp34.500
5	32852-41K00-000	PROTECTOR,RECTIFIER	1	Rp11.500
6	09160-06027-000 SUB: 09160-06060-000	WASHER (6.5X20X1.2)	2	Rp6.500
7	09180-06380-000	SPACER,RECTIFIER (6.2X8.4X6.9)	2	Rp52.000
8	08316-1006A-000 SUB: 08316-1006B-000	NUT	2	Rp2.000
9	01547-0630A-000 SUB: 01547-0630B-000	BOLT	2	Rp6.500
10	33410-41K00-000	COIL ASSY,IGNITION	1	Rp104.000
11	33414-41K00-000	BRACKET,IGNITION COIL	1	Rp32.500
12	01547-0620B-000 SUB: 01547-0620A-000	BOLT	2	Rp6.500
13	01547-0610A-000 SUB: 01547-0612A-000	BOLT	2	Rp3.000
14	33510-41K00-000	CAP ASSY,SPARK PLUG	1	Rp36.000
15	33541-08K00-000	SEAL,SPARK PLUG	1	Rp15.500
16	33542-30H00-000	SEAL,HIGH TENSION CORD	1	Rp5.500
17	32920-41K01-000	CONTROL UNIT,FI	1	Rp1.938.000
18	DISCONTINUE SUB: 33960-27G00-000	SENSOR ASSY,FUEL CUT	1	-
19	09280-63003-000	BAND, TOOL	1	Rp23.500
