Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

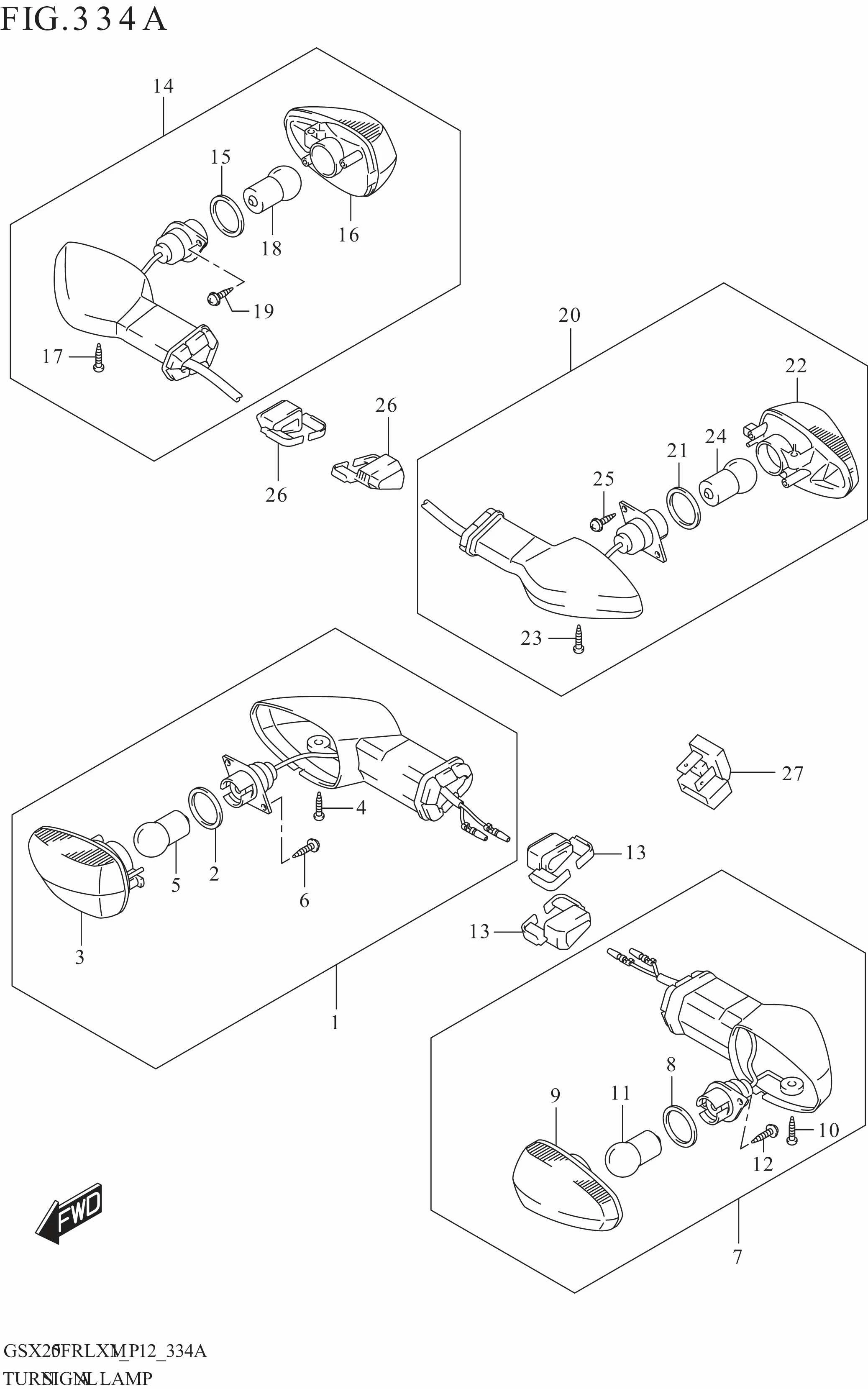

No	No. Part	Description	Qty	Price Per Pcs
1	35601-34J22-000	LAMP ASSY,FRONT TURNSIGNAL RH	1	Rp131.500
2	35613-34J00-000	.GASKET	1	Rp29.500
3	35614-34J11-000	.LAMP UNIT	1	Rp70.500
4	35623-34J30-000	.SCREW	1	Rp9.500
5	09471-12226-000	.BULB (12V10W)	1	Rp47.000
6	35623-34J40-000	.SCREW	1	Rp9.500
7	35602-34J22-000	LAMP ASSY,FRONT TURNSIGNAL LH	1	Rp131.500
8	35613-34J00-000	.GASKET	1	Rp29.500
9	35634-34J11-000	.LAMP UNIT	1	Rp70.500
10	35623-34J30-000	.SCREW	1	Rp9.500
11	09471-12226-000	.BULB (12V10W)	1	Rp47.000
12	35623-34J40-000	.SCREW	2	Rp9.500
13	35629-34J30-000	PLATE,FRONT TURNSIGNAL	2	Rp10.000
14	35603-34J22-000	LAMP ASSY,REAR TURNSIGNAL RH	1	Rp131.500
15	35613-34J00-000	.GASKET	1	Rp29.500
16	35634-34J11-000	.LAMP UNIT	1	Rp70.500
17	35623-34J30-000	.SCREW	1	Rp9.500
18	09471-12226-000	.BULB (12V10W)	1	Rp47.000
19	35623-34J40-000	.SCREW	2	Rp9.500
20	35604-34J22-000	LAMP ASSY,REAR TURNSIGNAL LH	1	Rp131.500
21	35613-34J00-000	.GASKET	1	Rp29.500
22	35614-34J11-000	.LAMP UNIT	1	Rp70.500
23	35623-34J30-000	.SCREW	1	Rp9.500
24	09471-12226-000	.BULB (12V10W)	1	Rp47.000
25	35623-34J40-000	.SCREW	2	Rp9.500
26	35629-34J30-000	PLATE,FRONT TURNSIGNAL	2	Rp10.000
27	38610-27K00-000	RELAY ASSY,TURNSIGNAL	1	Rp75.000
