  3. GIXXER SF 250
  4. Electrical
  5. SPEEDOMETER

GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL STARTING MOTORMAGNETOBATTERYELECTRICALSPEEDOMETERHEADLAMPTURNSIGNAL LAMPREAR COMBINATION LAMPWIRING HARNESSLOCK SETHANDLE SWITCH

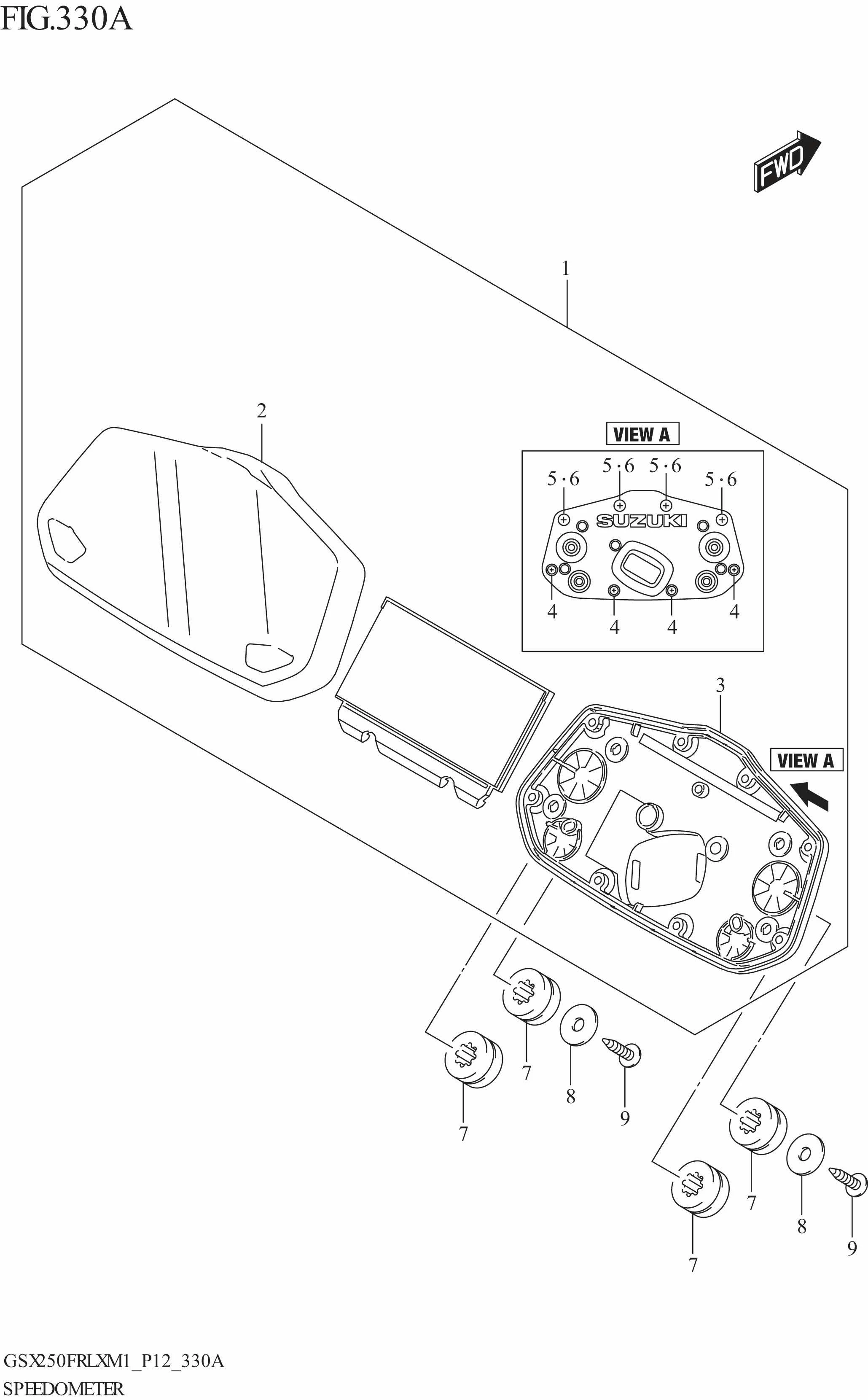

SPEEDOMETER

SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-41KA0-000 SPEEDOMETER ASSY 1 Rp2.110.500
2 34150-41KA0-000 .CASE,UPPER 1 Rp42.500
3 34111-41K00-000 .CASE,LOWER 1 Rp29.000
4 34183-10C00-000 .SCREW 4 Rp53.000
5 34183-41K00-000 .SCREW 4 Rp5.500
6 34184-41K00-000 .PACKING 4 Rp14.000
7 34189-34J00-000 CUSHION,SPEEDOMETER 4 Rp6.500
8 09160-05037-000 WASHER (5.5X16X1.20) 2 Rp11.000
9 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
