GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL STARTING MOTORMAGNETOBATTERYELECTRICALSPEEDOMETERHEADLAMPTURNSIGNAL LAMPREAR COMBINATION LAMPWIRING HARNESSLOCK SETHANDLE SWITCH

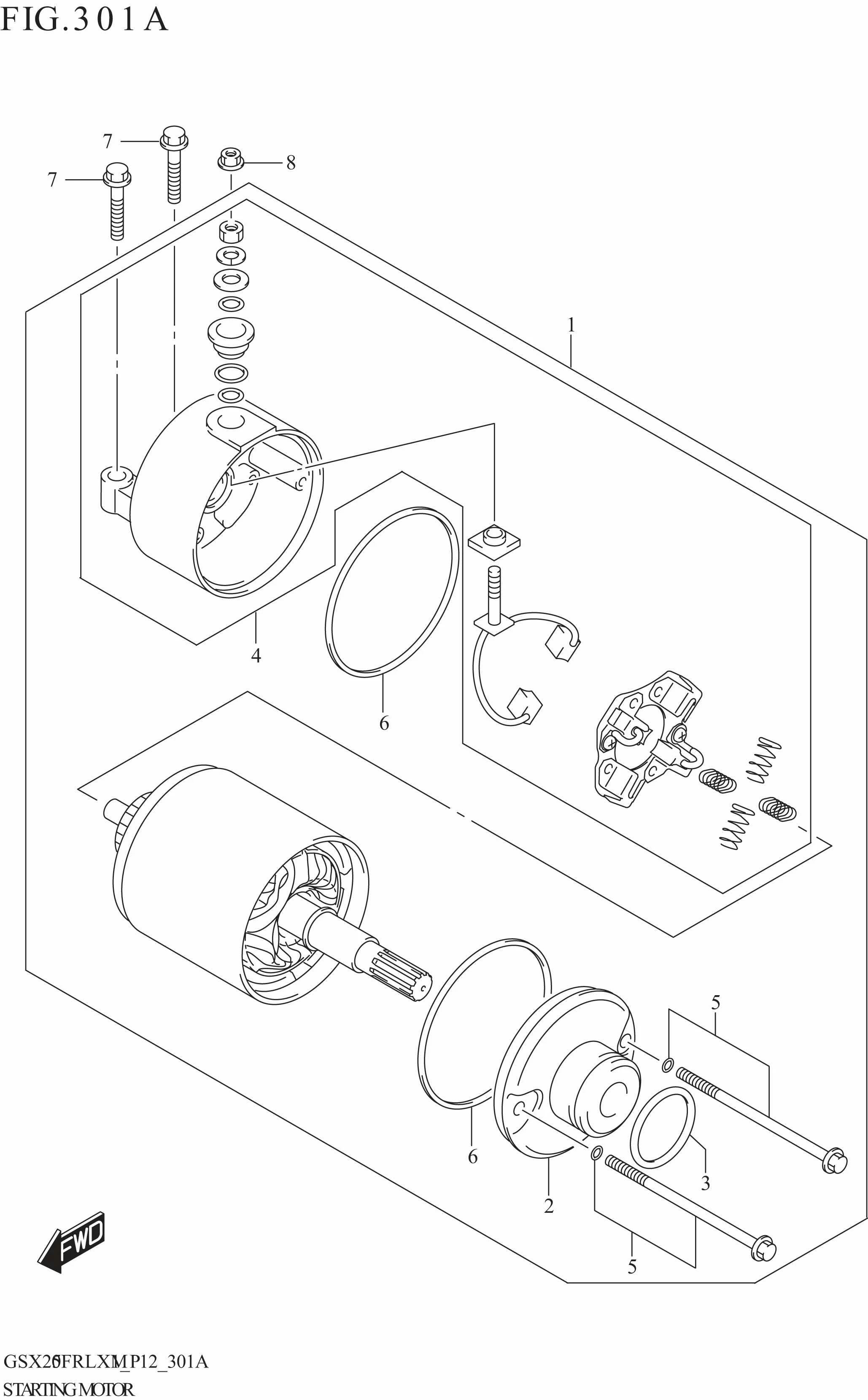

STARTING MOTOR

STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-41K00-000 MOTOR ASSY,STARTING 1 Rp1.267.500
2 31150-41K00-000 .FRONT BRACKET 1 Rp127.000
3 31156-41K00-000 .O RING1 1 Rp10.000
4 31175-41K00-000 .REAR BRACKET 1 Rp297.000
5 31280-41K00-000 .BOLT SET 1 Rp25.000
6 31264-41K00-000 .SEAL 4 Rp15.000
7 01547-0625A-000 BOLT 2 Rp6.500
8 08361-3506A-000 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
