ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.202A MT CLUTCHFIG.204A MT TRANSAXLE GEARFIG.206A MT TRANSAXLE CASEFIG.208A MT GEAR SHIFT FORKFIG.260A GEAR SHIFT CONTROLFIG.266A INTERMEDIATE SHAFTFIG.272A FRONT DIFF GEAR

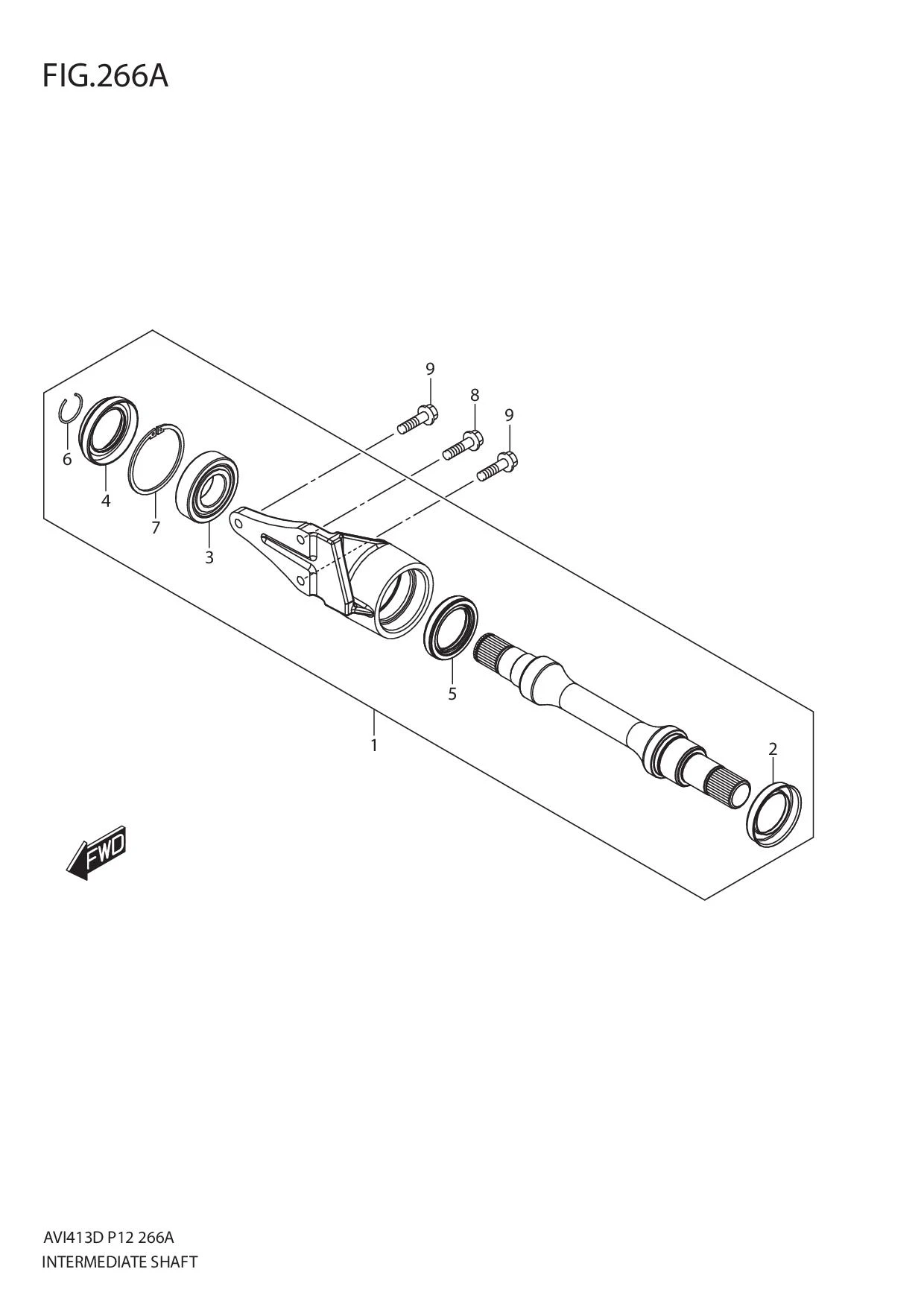

FIG.266A INTERMEDIATE SHAFT

FIG.266A INTERMEDIATE SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 27800M65MB0-000
SUB: 27800M65MA0-000		 SHAFT ASSY,INTERMEDIATE 1 Rp1.048.500
2 27812-54L00-000
SUB: 27812B54L00N000		 •DEFLECTOR,INTERMEDIATE SHAFT 1 Rp20.500
3 27831-54L00-000
SUB: 27831M60MA0-000		 •BEARING,DRIVE INTERMEDIATE 1 Rp136.000
4 27841-54L00-000
SUB: 27841B54L00N000		 •SEAL,DRIVE INTERMEDIATE RH 1 Rp34.000
5 27841-64G00-000
SUB: 27841B64G00N000		 •SEAL,DRIVE INTERMEDIATE LH 1 Rp31.000
6 27861-54L01-000
SUB: 27861M54L01-000		 •RING,DRIVE SHAFT SNAP 1 Rp7.500
7 08331-41629-000
SUB: 08331B41629N000		 •CIRCLIP 1 Rp27.000
8 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
9 01550-0825A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
