ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.202A MT CLUTCHFIG.204A MT TRANSAXLE GEARFIG.206A MT TRANSAXLE CASEFIG.208A MT GEAR SHIFT FORKFIG.260A GEAR SHIFT CONTROLFIG.266A INTERMEDIATE SHAFTFIG.272A FRONT DIFF GEAR

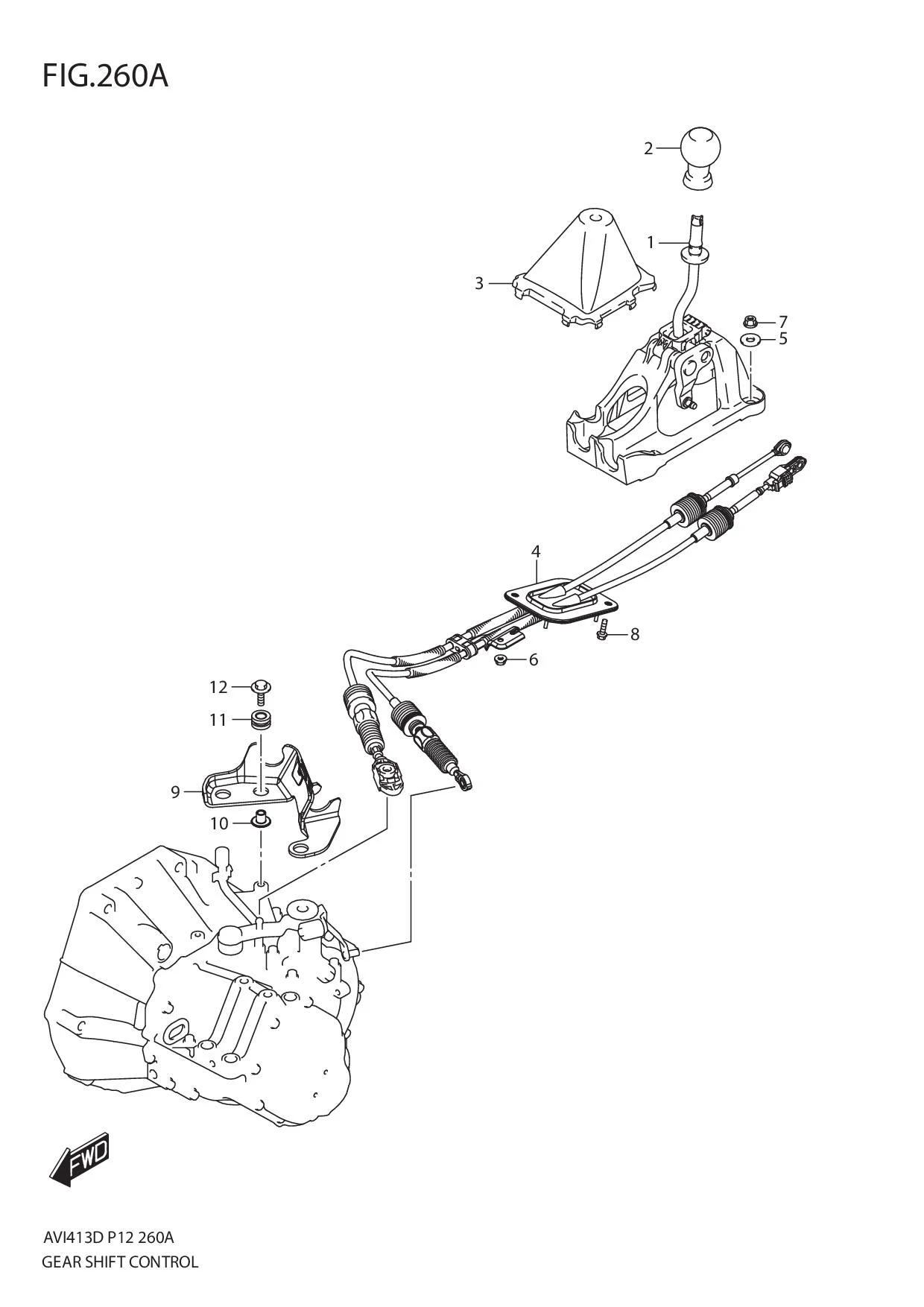

FIG.260A GEAR SHIFT CONTROL

FIG.260A GEAR SHIFT CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 28100M71M00-000
SUB: 28100M65M00-000		 LEVER ASSY,GEAR SHIFT CONTROL 1 Rp639.500
2 28113M60M21-JNP
SUB: 28113M60M20-JNP		 KNOB,GEAR SHIFT CONTROL LEVER (BEIGE/SILVER) 1 Rp163.000 GL,GLX
3 28130M60M00-V6N
SUB: 28130M72P00-V6N		 BOOT,SHIFT LEVER (BEIGE) 1 Rp76.500
4 28300M60MA0-000 CABLE,SHIFT & SELECT CONTROL 1 Rp1.186.500
5 09160-08151-000
SUB: 09160M08151-000		 WASHER (8.5X26X1.6) 4 Rp16.500
6 08316-1006A-000 NUT 2 Rp2.000
7 09159-08127-000
SUB: 09159M08153-000		 NUT 4 Rp11.000
8 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 2 Rp5.500
9 28391M60MA0-000 BRACKET,T/M CONTROL CABLE 1 Rp63.500
10 28392M55KD0-000 SPACER,CONTROL CABLE BRACKET 3 Rp8.000
11 28393M79M00-000 CUSHION,CONTROL CABLE BRACKET 3 Rp20.500
12 09118-08167-000 BOLT (8X30) 3 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
