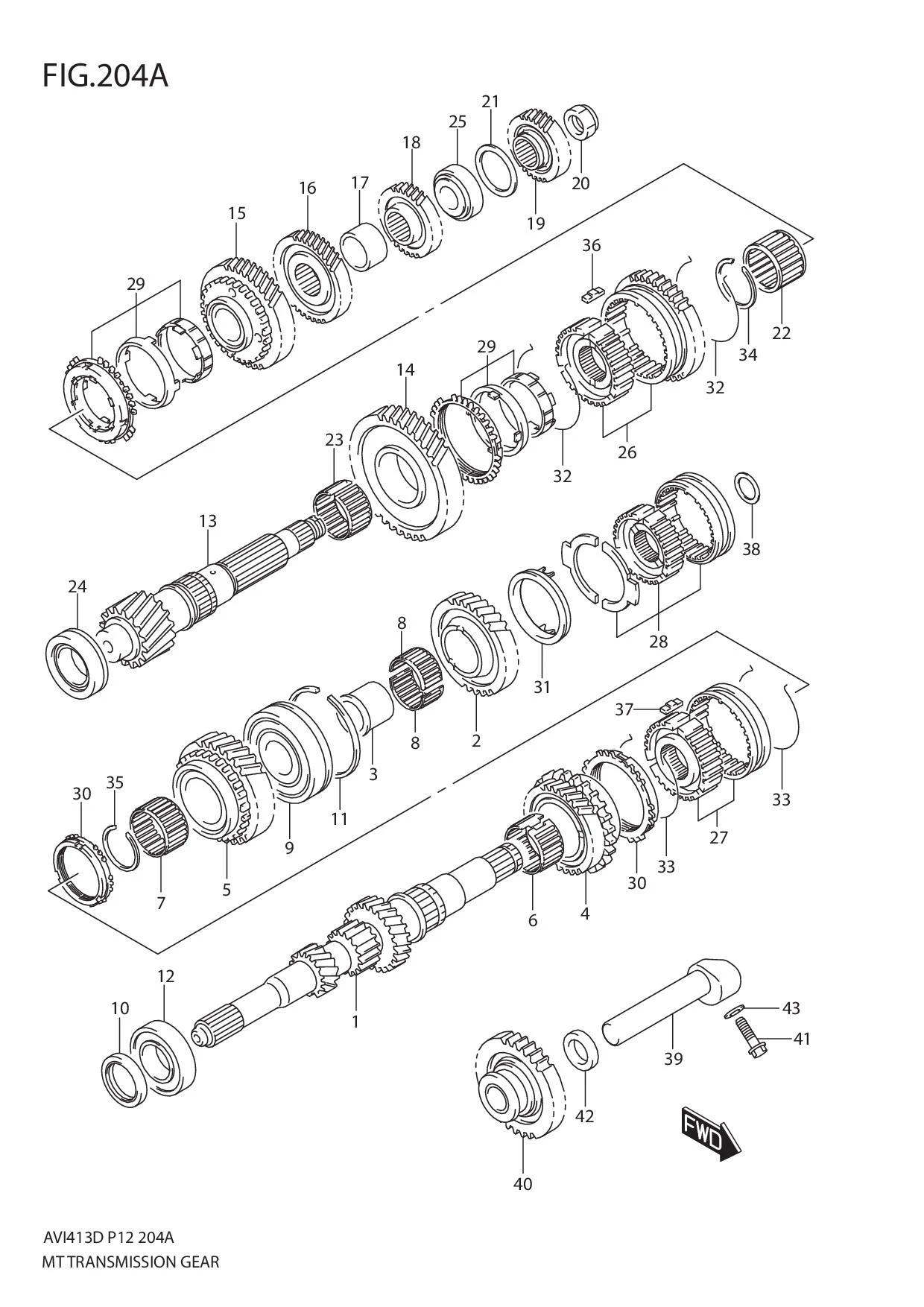

FIG.204A MT TRANSAXLE GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	24111M58RA0-000	SHAFT,TRANSMISSION INPUT	1	Rp873.000
2	24114M79MA0-000	GEAR,INPUT SHAFT 5TH	1	Rp1.025.500
3	24119M79MB0-000 SUB: 24119M79MA0-000	SPACER,INPUT SHAFT 5TH GEAR	1	Rp51.500
4	24230M55KA1-000	GEAR,INPUT SHAFT 3RD	1	Rp1.478.000
5	24240M86JA0-000	GEAR,INPUT SHAFT 4TH	1	Rp1.298.000
6	24283M86J00-000	BEARING,3RD GEAR NEEDLE	1	Rp48.500
7	24284M86J00-000	BEARING,4TH GEAR NEEDLE	1	Rp47.500
8	24285M79MA0-000	BEARING,5TH GEAR NEEDLE	2	Rp25.000
9	24165-77M00-000	BEARING (25X72X19)	1	Rp220.000
10	24151M86J00-000	SEAL,INPUT SHAFT OIL	1	Rp18.500
11	09380-72002-000	RING,SNAP	1	Rp42.500
12	24155M86J00-000	BEARING	1	Rp186.500
13	24131M55KD0-000	SHAFT,TRANSMISSION COUNTER	1	Rp1.541.000
14	24311M86JA0-000	GEAR,COUNTERSHAFT 1ST	1	Rp1.467.500
15	24321M60M01-000 SUB: 24321M60M00-000	GEAR,COUNTERSHAFT 2ND	1	Rp593.500
16	24331M55KD0-000	GEAR,COUNTERSHAFT 3RD	1	Rp352.000
17	24336M86J00-000	SPACER,3RD & 4TH GEAR	1	Rp50.500
18	24341M86JA0-000	GEAR,COUNTERSHAFT 4TH	1	Rp382.000
19	24351M60MA1-000	GEAR,COUNTERSHAFT 5TH	1	Rp460.000
20	09159-20009-000	NUT	1	Rp74.000
21-12	09181-41015-000	SHIM (T:1.20)	0	Rp44.500
21-11	09181-41014-000	SHIM (T:1.15)	0	Rp44.000
21-10	09181-41013-000	SHIM (T:1.10)	0	Rp44.000
21-9	09181-41012-000	SHIM (T:1.05)	0	Rp44.000
21-8	09181-41011-000	SHIM (T:1.00)	0	Rp47.500
21-7	09181-41010-000	SHIM (T:0.95)	0	Rp44.000
21-5	09181-41008-000	SHIM (T:0.85)	0	Rp44.000
21-4	09181-41007-000	SHIM (T:0.80)	0	Rp47.500
21-3	09181-41006-000	SHIM (T:0.75)	0	Rp44.000
21-2	09181-41005-000	SHIM (T:0.70)	0	Rp44.000
21-1	09181-41004-000	SHIM (T:0.65)	0	Rp44.000
21-6	09181-41009-000	SHIM (T:0.90)	0	Rp44.000
22	09263-35039-000	BEARING (35X50X28)	1	Rp179.500
23	24381M86J20-000 SUB: 24381M86J00-000	BEARING,1ST GEAR NEEDLE	1	Rp56.500
24	09265-30021-000	BEARING (30X55X17)	1	Rp321.000
25	09265-25041-000	BEARING (25X52X19.25)	1	Rp283.500
26	24400M56RA0-000 SUB: 24400M74LA0-000	HUB ASSY,LOW SPEED SYNC	1	Rp736.500
27	24410M74LB0-000 SUB: 24410M74LA1-000	HUB ASSY,HIGH SPEED SYNC	1	Rp1.077.000
28	24420M79MA0-000	HUB ASSY,5TH SPEED SYNC	1	Rp2.376.500
29	24430M86J00-000	RING ASSY,2ND GEAR SYNC	2	Rp909.500
30	24432M86J00-000	RING,HIGH SPEED SYNC	2	Rp139.000
31	24435M79MA0-000	RING,5TH SPEED SYNC	1	Rp241.500
32	24441-70C00-000	SPRING,LOW SPEED SYNC	2	Rp23.000
33	24442-70C00-000	SPRING,HIGH SPEED SYNC	2	Rp23.000
34	24451M78L00-000	CIRCLIP,LOW SPEED SYNC	1	Rp6.000
35	24452M86J00-000	CIRCLIP,HIGH SPEED SYNC	1	Rp10.000
36	24471-83M00-000	KEY,LOW SPEED SYNC	3	Rp37.500
37	24472-60B00-000	KEY,HIGH SPEED SYNC	3	Rp25.000
38	09160M21022-000	WASHER (21X32X1)	1	Rp5.500
39	DISCONTINUE SUB: 24551-70C02-000	SHAFT,TRANSAXLE REVERSE GEAR	1	-
40	24560-70C60-000 SUB: 24560-70C41-000	GEAR,REVERSE IDLER	1	Rp924.000
41	24565M53M00-000	BOLT,REVERSE SHAFT	1	Rp9.500
42	09161-18004-000	WASHER (18X27X5.5)	1	Rp34.500
43	09168M08030-000	GASKET (8.2X17X1)	1	Rp6.500
