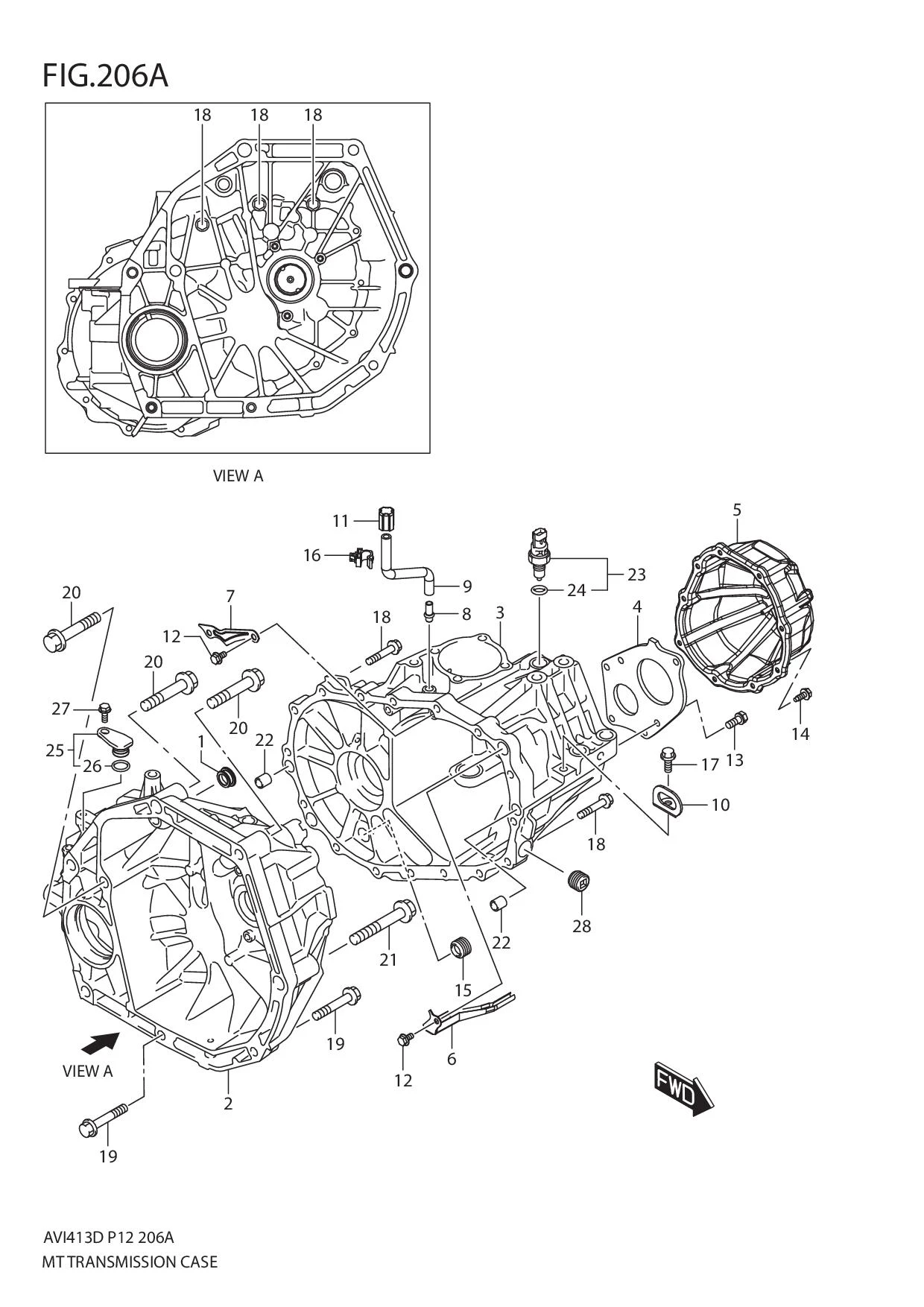

Transmission - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21342M86JA0-000	PLUG,SERVICE HOLE	1	Rp6.500
2	24711M60MA3-000	CASE,TRANSMISSION RH	1	Rp4.928.000
3	24721M60MA2-000	CASE,TRANSMISSION LH	1	Rp5.419.000
4	24725M60MA0-000	PLATE,T/M LH BEARING STOPPER	1	Rp275.500
5	24730M86J00-000	COVER,TRANSAXLE SIDE	1	Rp140.000
6	DISCONTINUE SUB: 24810-70C00-000	GUTTER,INPUT OIL	1	-
7-1	24815M86J00-000	PLATE,BREATHER COVER	1	Rp8.500	VENDOR:ROYAL TOOLS INDIA
7-2	24815M86J00-000	PLATE,BREATHER COVER	1	Rp8.500	VENDOR:HYLINE AUTO PVT LTD.
8	24821M79F00-000	UNION,BREATHER	1	Rp88.500
9	24825M74LA0-000	HOSE,BREATHER	1	Rp12.000
10	24855M86J00-000	HOOK,TRANSAXLE	1	Rp9.000
11	27991M79G00-000	PLUG,BREATHER	1	Rp35.000
12	09103M06518-000	BOLT (6X12)	3	Rp9.000
13	24728-60MA0-000	BOLT,T/M LH BEARING STOPPER PLATE	6	Rp31.000
14	09135-06027-000	BOLT (6X12)	9	Rp15.000
15	09246-16021-000 SUB: 09246-16010-000	PLUG	1	Rp48.000
16	24829M68K00-000	CLAMP,BREATHER HOSE	1	Rp6.500
17	01550-0820A-000 SUB: 01550B0820AN000	BOLT	1	Rp5.500
18	01550-0840A-000 SUB: 01550B0840AN000	BOLT	16	Rp3.500
19	01550-1060A-000	BOLT	2	Rp5.500
20	01550-1265A-000	BOLT	3	Rp8.000
21	01550-1280A-000	BOLT	1	Rp38.000
22	04211M13189-000 SUB: 04211-13149-000	PIN	2	Rp9.000
23	37610M68K00-000	SWITCH ASSY,BACK UP LAMP	1	Rp141.000
24	09280-11002-000	•O RING (D:1.9,ID:11.4)	1	Rp10.500
25	24723M68K01-000	CAP,SPEEDMETER SENSOR	1	Rp169.000
26	09280-15018-000	•O RING (D:2.4,ID:14.8)	1	Rp40.000
27	01550-0616A-000	BOLT	1	Rp3.500
28	09246M16009-000 SUB: 09246M16016-000	PLUG	1	Rp14.500
