ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.202A MT CLUTCHFIG.204A MT TRANSAXLE GEARFIG.206A MT TRANSAXLE CASEFIG.208A MT GEAR SHIFT FORKFIG.260A GEAR SHIFT CONTROLFIG.266A INTERMEDIATE SHAFTFIG.272A FRONT DIFF GEAR

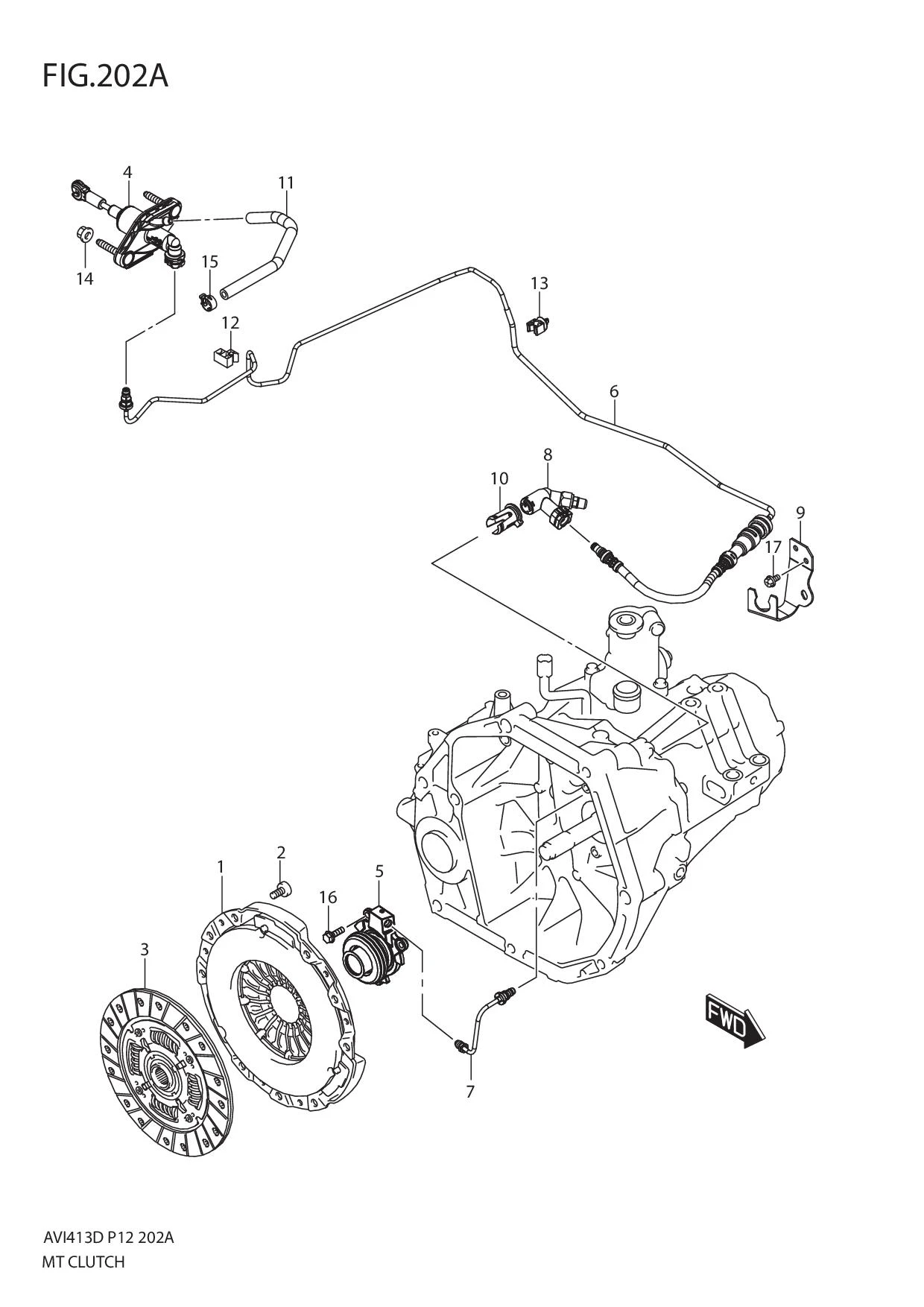

FIG.202A MT CLUTCH

FIG.202A MT CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 22100M86J40-000 COVER ASSY,CLUTCH 1 Rp580.500
2 22113M65M00-000 BOLT,CLUTCH COVER 6 Rp6.000
3 22400M86J43-000
SUB: 22400M86J42-000		 DISC,CLUTCH 1 Rp735.500
4 23810-68L41-000
SUB: 23810B68L41N000		 CYLINDER,CLUTCH MASTER 1 Rp749.500
5 23820-79J00-000 CYLINDER,CLUTCH OPERATING 1 Rp1.233.000
6 23830-69L23-000
SUB: 23830B69L22N000		 PIPE,CLUTCH OIL RH 1 Rp408.500
7 23840-86J00-000
SUB: 23840B86J00N000		 PIPE,CLUTCH OIL HOUSING 1 Rp69.500
8 23856-64JA0-000 JOINT,CLUTCH OIL 1 Rp163.000
9 23871-68L00-000
SUB: 23871B68L00N000		 BRACKET,CLUTCH OIL HOSE 1 Rp14.500
10 23874-64J00-000 SLEEVE,CLUTCH OIL BLEEDER 1 Rp21.000
11 23881-71L20-000 HOSE,CLUTCH RESERVOIR RH 1 Rp158.000
12 27978M79M00-000 CLAMP,CLUTCH OIL PIPE 1 Rp6.500
13 51761M60M00-000 CLAMP,CLUTCH OIL PIPE NO.2 1 Rp5.500
14 09159-08127-000
SUB: 09159M08153-000		 NUT 2 Rp11.000
15 09401-12405-000 CLIP 1 Rp16.500
16 01550-0620A-000 BOLT 3 Rp3.500
17 02162-0612A-000 SCREW 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
